Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | QHL |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Cartons or pallets for exported |
| Delivery Time: | 7-15days after payment |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 600pcs/month |
| Application: | Construction Works | Model: | Hoist Tackles, Hoist Block |
|---|---|---|---|
| Material: | Casting Steel | Product Name: | Casting Steel Sheave Lifting Pulley Blocks Steel Hoisting Block |
| Sheaves: | 1-4 | Rated Load: | 10-100KN |
| Weight: | 2-13KG | Function: | Power Line Construction |
| High Light: | Conductor Stringing Hoisting Tackle,Dual Sheave Hoisting Tackle,50KN Iron Hoisting Block |
||

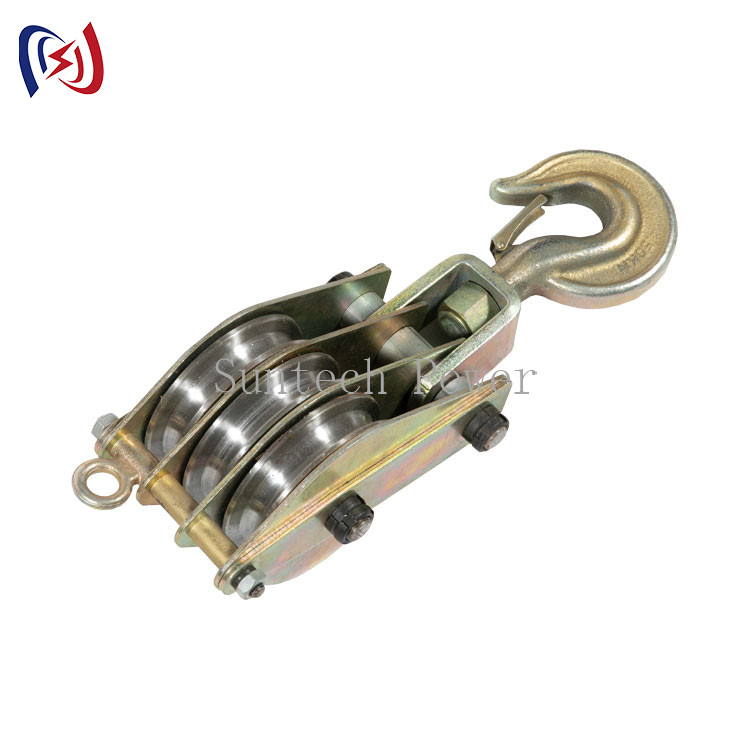

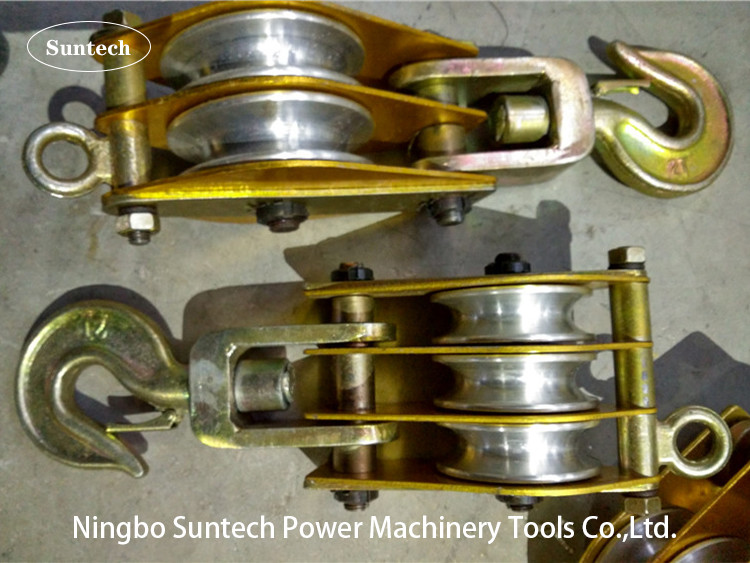

QHS 50KN Dual Sheave Hoisting Tackle With Both Side Opening Iron Hoisting Block
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,
inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
User:Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.
Features:Product is made of aluminum alloy plate with aluminum alloy wheel,it has light weight.
Explain:Accessories style is need to indicated such like open type,close type,hook type and ring type when customer place order.
| Item number | Model | Number of sheaves | Rated load (kN) |
Roller Diaxwidth (MM) |
MAX. Rope Diamete (mm) |
Weight (kg) |
| 11301 | QHL1x1 | 1 | 10 | Φ100×31 | Φ8 | 2 |
| 11302 | QHL1x2 | 2 | Φ80×27 | Φ6 | 2 | |
| 11303 | QHL1x3 | 3 | Φ80×27 | Φ6 | 2 | |
| 11311 | QHL2x1 | 1 | 20 | Φ120×35 | Φ10 | 3 |
| 11312 | QHL2x2 | 2 | Φ100×31 | Φ8 | 3 | |
| 11313 | QHL2x3 | 3 | Φ100×31 | Φ8 | 4 | |
| 11321 | QHL3x1 | 1 | 30 | Φ150×39 | Φ11 | 4 |
| 11322 | QHL3x2 | 2 | Φ120×35 | Φ10 | 4 | |
| 11323 | QHL3x3 | 3 | Φ100×31 | Φ8 | 5 | |
| 11331 | QHL5x1 | 1 | 50 | Φ166×40 | Φ13 | 6 |
| 11332 | QHL5x2 | 2 | Φ150×39 | Φ11 | 6 | |
| 11333 | QHL5x3 | 3 | Φ120×35 | Φ10 | 7 | |
| 11341 | QHL8x1 | 1 | 80 | Φ205×49 | Φ18 | 9 |
| 11342 | QHL8x2 | 2 | Φ166×40 | Φ13 | 9 | |
| 11343 | QHL8x3 | 3 | Φ150×39 | Φ11 | 10 | |
| 11351 | QHL10x1 | 1 | 100 | Φ246×60 | Φ20 | 12 |
| 11352 | QHL10x2 | 2 | Φ166×40 | Φ13 | 12 | |
| 11353 | QHL10x3 | 3 | Φ150×39 | Φ11 | 13 |
