10-100KN Aluminum Alloy Open Style Hoisting Tackle with MC Nylon Sheave for Light Lifting
Product Overview

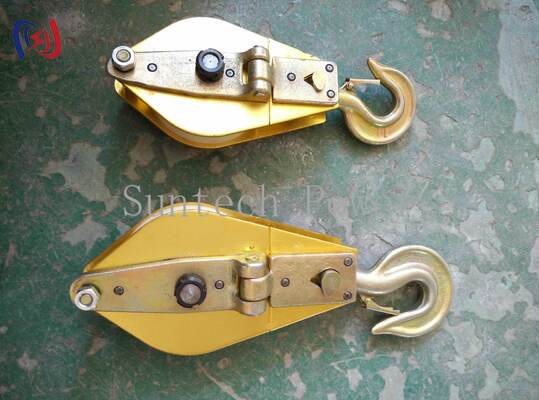

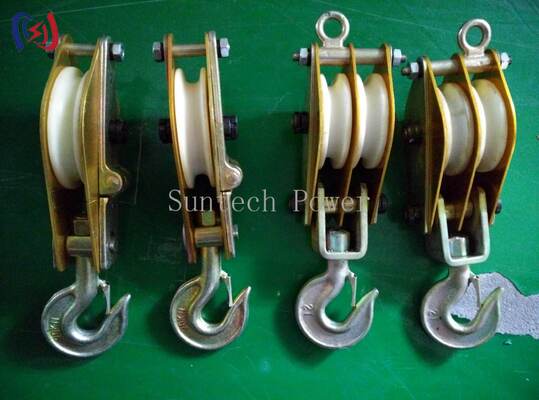

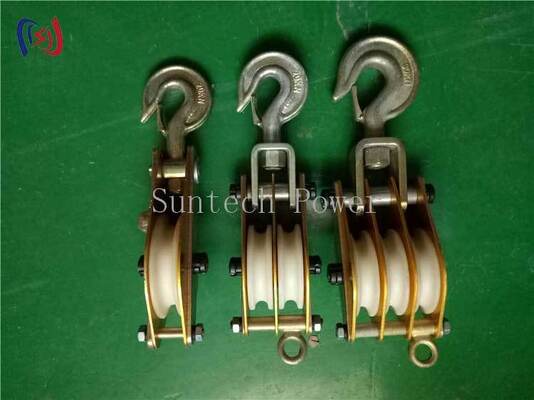

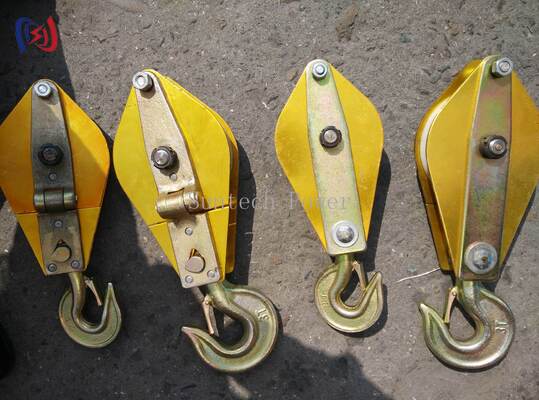

This aluminum alloy and MC nylon open type hoisting tackle features extremely light dead weight. Aluminum alloy side panels with MC nylon sheave. The single sheave pulley block is open type for easy rope installation. Suitable for lifting heavy objects and other operations in line construction. Features hook type, close type, and ring type options.
Technical Specifications
|
Item No.
|
Model
|
Sheaves
|
Rated Load (kN)
|
Roller Dia×W (mm)
|
Max Rope (mm)
|
Weight (kg)
|
|
11101
|
QHN1x1
|
1
|
10
|
100×31
|
8
|
2
|
|
11102
|
QHN1x2
|
2
|
|
80×27
|
6
|
2
|
|
11103
|
QHN1x3
|
3
|
|
80×27
|
6
|
2
|
|
11111
|
QHN2x1
|
1
|
20
|
120×35
|
10
|
2
|
|
11112
|
QHN2x2
|
2
|
|
100×31
|
8
|
3
|
|
11113
|
QHN2x3
|
3
|
|
100×31
|
8
|
4
|
|
11121
|
QHN3x1
|
1
|
30
|
150×39
|
11
|
3
|
|
11122
|
QHN3x2
|
2
|
|
120×35
|
10
|
4
|
|
11123
|
QHN3x3
|
3
|
|
100×31
|
8
|
5
|
|
11131
|
QHN5x1
|
1
|
50
|
166×40
|
13
|
5
|
|
11132
|
QHN5x2
|
2
|
|
150×39
|
11
|
6
|
|
11133
|
QHN5x3
|
3
|
|
120×35
|
10
|
5
|
|
11141
|
QHN8x1
|
1
|
80
|
205×49
|
18
|
7
|
|
11142
|
QHN8x2
|
2
|
|
166×40
|
13
|
8
|
|
11143
|
QHN8x3
|
3
|
|
150×39
|
11
|
8
|
|
11151
|
QHN10x1
|
1
|
100
|
246×60
|
20
|
11
|
|
11152
|
QHN10x2
|
2
|
|
166×40
|
13
|
10
|
|
11153
|
QHN10x3
|
3
|
|
150×39
|
11
|
12
|
Applications
· Tower assembly and erection
· Line construction hoist devices
· Light lifting operations
· Rope hoisting applications
· Power construction projects
Product Advantages
· Ultra-Lightweight — Only 2-12KG, significantly lighter than steel alternatives, reducing crew fatigue.
· Open Type Design — Open side plate allows quick and easy rope installation without threading.
· MC Nylon Sheave — Provides smooth operation, reduces rope wear, and extends service life.
· Aluminum Alloy Frame — Corrosion resistant, lightweight yet strong for demanding field conditions.
· Comprehensive Range — 18 models from 10KN to 100KN with 1-3 sheaves for all light lifting needs.
Frequently Asked Questions (FAQ)
Q: What does open type mean?
A: The pulley has an open side plate, allowing rope to be inserted directly without threading.
Q: Load range?
A: 10KN to 100KN across 18 models.
Q: Hanger types?
A: Hook type, ring type, and close type available. Specify when ordering.
Q: Weight?
A: 2KG (smallest) to 12KG (largest).
Q: Sheave material?
A: MC nylon for smooth operation and rope protection.
