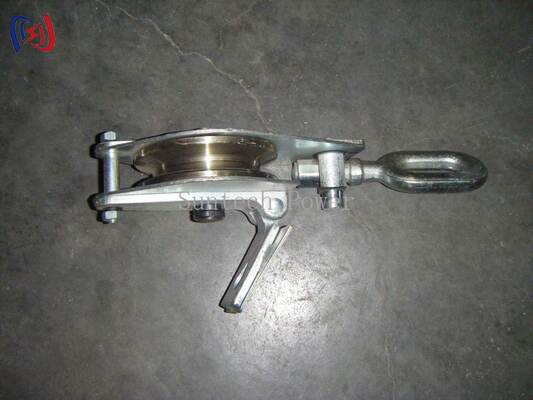

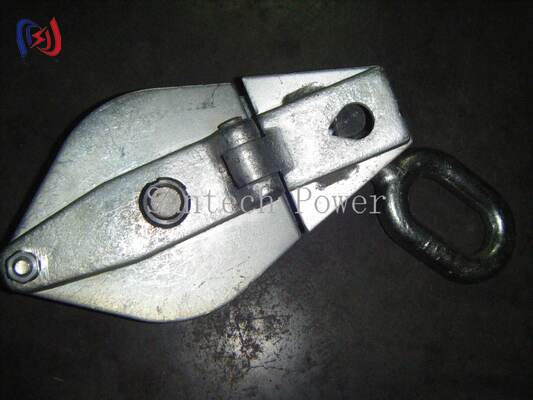

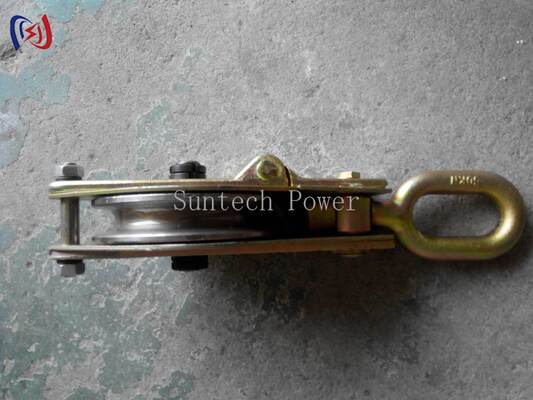

10-200KN Hoisting Tackle Aluminum Alloy Frame for Electric Power Tower Erection and Line Construction
Product Overview
This aluminum alloy and MC nylon hoisting tackle features light dead weight with aluminum alloy side panels and MC nylon sheaves. Hook type, plate type, and ring type hangers available. Suitable for assembling and erecting towers, line construction hoisting, and other hoisting operations. Full range from 10KN to 200KN rated load with 1 to 4 sheaves.
Technical Specifications
|
Item No.
|
Model
|
Sheaves
|
Rated Load (kN)
|
Roller Dia×W (mm)
|
Max Rope (mm)
|
Weight (kg)
|
|
11181
|
QH1x1
|
1
|
10
|
100×31
|
8
|
3
|
|
11182
|
QH1x2
|
2
|
|
80×27
|
6
|
3
|
|
11183
|
QH1x3
|
3
|
|
80×27
|
6
|
4
|
|
11191
|
QH2x1
|
1
|
20
|
120×35
|
10
|
4
|
|
11192
|
QH2x2
|
2
|
|
100×31
|
8
|
5
|
|
11193
|
QH2x3
|
3
|
|
100×31
|
8
|
6
|
|
11201
|
QH3x1
|
1
|
30
|
150×39
|
11
|
6.5
|
|
11202
|
QH3x2
|
2
|
|
120×35
|
10
|
5
|
|
11203
|
QH3x3
|
3
|
|
100×31
|
8
|
6
|
|
11211
|
QH5x1
|
1
|
50
|
166×40
|
15.5
|
9
|
|
11212
|
QH5x2
|
2
|
|
150×39
|
12.5
|
13
|
|
11213
|
QH5x3
|
3
|
|
120×35
|
11
|
11
|
|
11221
|
QH8x1
|
1
|
80
|
205×50
|
13
|
20
|
|
11222
|
QH8x2
|
2
|
|
166×40
|
11
|
19
|
|
11223
|
QH8x3
|
3
|
|
150×39
|
10
|
18
|
|
11231
|
QH10x1
|
1
|
100
|
246×60
|
19
|
22
|
|
11232
|
QH10x2
|
2
|
|
166×40
|
13
|
21
|
|
11233
|
QH10x3
|
3
|
|
150×39
|
11
|
20
|
|
11241
|
QH15-1
|
1
|
150
|
280×64
|
22
|
40
|
|
11242
|
QH15-2
|
2
|
|
205×50
|
18
|
33
|
|
11243
|
QH15-3
|
3
|
|
166×40
|
13
|
26
|
|
11244
|
QH15-4
|
4
|
|
150×39
|
11
|
28
|
|
11245
|
QH20-1
|
1
|
200
|
305×68
|
23
|
56
|
|
11248
|
QH20-4
|
4
|
|
205×50
|
18
|
50
|
Applications
· Tower assembly and erection
· Line construction hoisting devices
· Heavy object lifting operations
· Power construction lifting
· Utility maintenance hoisting
Product Advantages
· Extensive Range — 26 models from 10KN to 200KN with 1-4 sheaves covering all power construction lifting needs.
· Lightweight Design — Aluminum alloy side panels significantly reduce weight while maintaining strength.
· MC Nylon Sheave — Provides smooth operation and long service life with reduced rope wear.
· Multiple Hanger Options — Hook type, plate type, and ring type hangers available for different applications.
· Proven Quality — Exported to 120 countries with over 3000 satisfied clients worldwide.
Frequently Asked Questions (FAQ)
Q: What is the capacity range?
A: 10KN to 200KN across 26 models with 1-4 sheaves.
Q: Materials?
A: Aluminum alloy side panels with MC nylon sheaves.

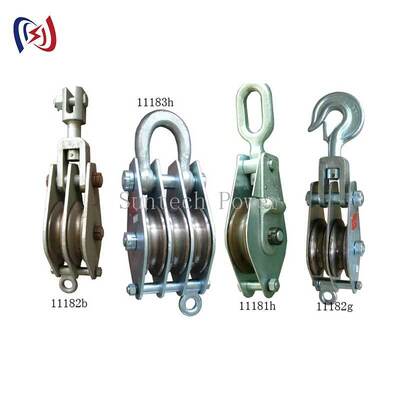

Q: Hanger types?
A: Hook type (G), ring style (H), and clevis type (B).
Q: What applications?
A: Tower erection, line construction hoisting, and general lifting.
Q: Weight?
A: 3KG (smallest) to 56KG (largest).
