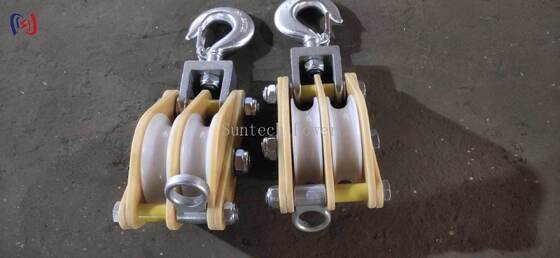

5-50KN Insulated Hoisting Tackle Epoxy Resin Plate MC Nylon Sheave for Live Line Work
Product Overview
The Insulated Hoisting Tackle is made of epoxy resin plate with MC nylon wheel, providing lightweight and non-conductive properties for safe operation near live lines. Available with 1-4 sheaves and rated load from 5KN to 50KN. Suitable for tower erection, line construction hoisting, and other hoist operations where electrical insulation is required.
Technical Specifications
|
Item No.
|
Model
|
Sheaves
|
Rated Load (kN)
|
Max Rope (mm)
|
Weight (kg)
|
|
11401
|
QHJ1x1
|
1
|
10
|
8
|
1.8
|
|
11402
|
QHJ1x2
|
2
|
|
6
|
1.8
|
|
11403
|
QHJ1x3
|
3
|
|
6
|
2.1
|
|
11411
|
QHJ2x1
|
1
|
20
|
10
|
2.9
|
|
11412
|
QHJ2x2
|
2
|
|
8
|
3.1
|
|
11413
|
QHJ2x3
|
3
|
|
8
|
3.8
|
|
11421
|
QHJ3x1
|
1
|
30
|
11
|
4.1
|
|
11422
|
QHJ3x2
|
2
|
|
10
|
4.3
|
|
11423
|
QHJ3x3
|
3
|
|
8
|
5.3
|
|
11424
|
QHJ3x4
|
4
|
|
8
|
6.3
|
|
11431
|
QHJ5x1
|
1
|
50
|
13
|
5.6
|
|
11432
|
QHJ5x2
|
2
|
|
11
|
6.1
|
|
11433
|
QHJ5x3
|
3
|
|
10
|
7.3
|
|
11434
|
QHJ5x4
|
4
|
|
10
|
8.3
|
|
11441
|
QHJx1
|
1
|
50
|
8
|
1.3
|
|
11442
|
QHJx2
|
2
|
|
6
|
1.3
|
|
11443
|
QHJx3
|
3
|
|
6
|
1.8
|
Applications
· Tower assembly near live lines
· Line construction requiring insulation
· Hoist operations with electrical safety requirements
· Transmission line maintenance work
· Substation construction
Product Advantages
· Electrical Insulation — Epoxy resin plate frame provides excellent electrical insulation for safe operation near energized lines.
· Ultra-Lightweight — Only 1.3-8.3KG, much lighter than steel alternatives, reducing fatigue.
· MC Nylon Sheave — Smooth operation with reduced rope wear and non-conductive properties.
· Multi-Sheave Options — 1-4 sheaves available for various mechanical advantage requirements.
· Comprehensive Range — 17 models from 10KN to 50KN covering all insulated lifting needs.
Frequently Asked Questions (FAQ)
Q: What makes this insulated?
A: Epoxy resin plate frame and MC nylon sheave provide non-conductive construction for electrical safety.
Q: Load range?
A: 10KN to 50KN across 17 models.
Q: Weight?
A: Only 1.3-8.3KG, extremely lightweight.
Q: Accessory options?
A: Open type, close type, hook type, and ring type available.
Q: Applications?
A: Live line maintenance, tower erection near power lines, substation work.
