Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | QHJ |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Exported Cartons and Pallets |
| Delivery Time: | 7-10days after Payment |
| Payment Terms: | Western Union, L/C, T/T, T/T |
| Supply Ability: | 200pcs/month |
| Material: | Insulated Plate | Type: | Hoisting Tackle |
|---|---|---|---|
| Name: | Insulated Tackle | Application: | Construction Transmission Line |
| Capacity: | 1,2,3,5T | Warranty: | One Year |
| High Light: | epoxy resin plate hoisting tackle,hoisting tackle epoxy resin plate,Tower Erection Stringing hoisting tackle |
||

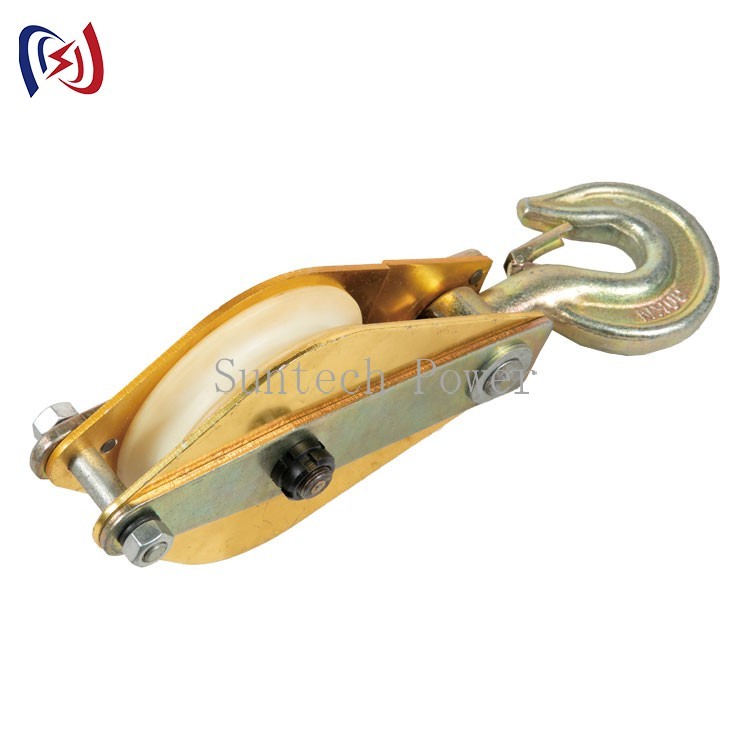

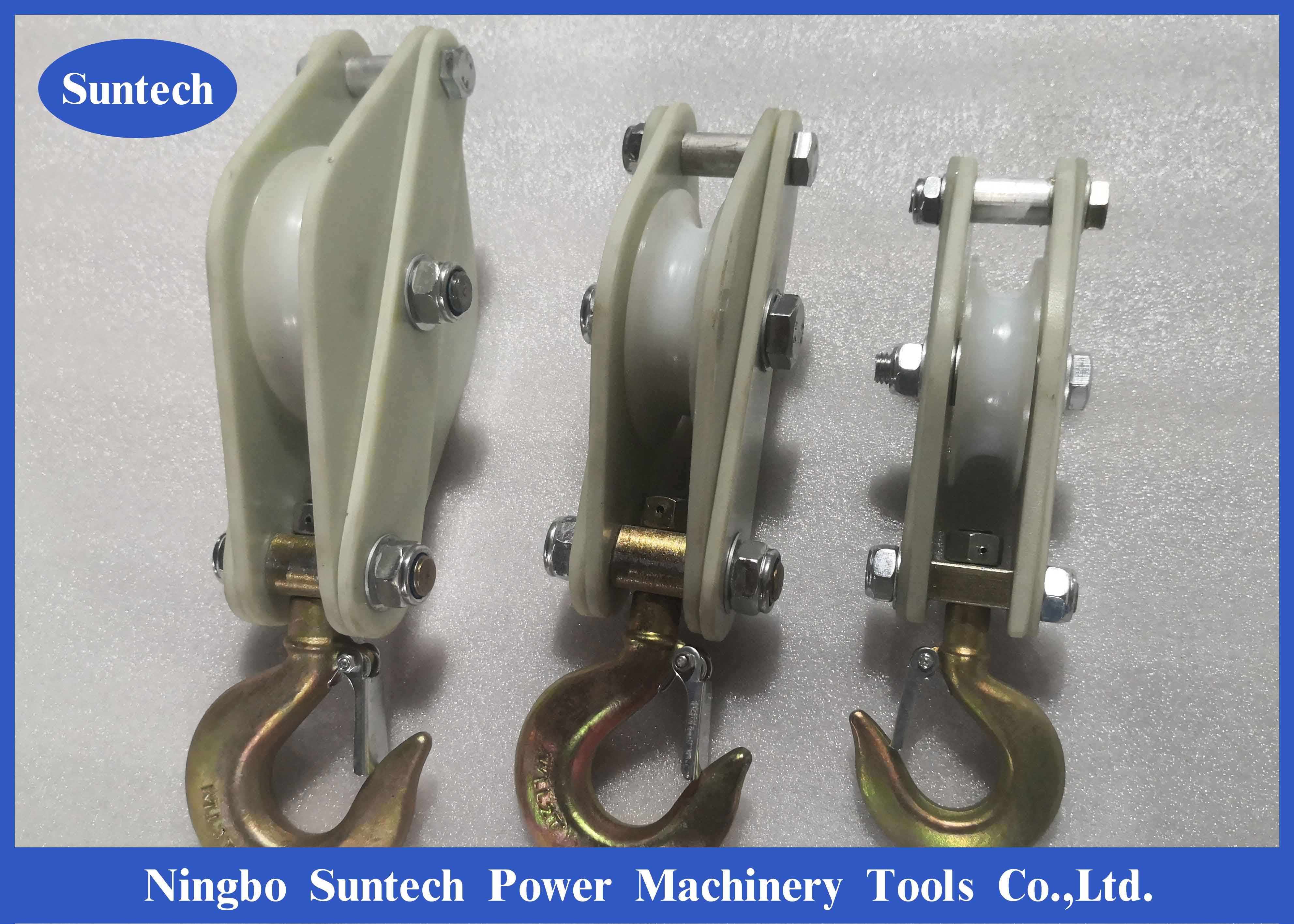

Epoxy Resin Plate Tower Erection Stringing Pulley Block Insulated Hoisting Tackle
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,
inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
| Item number | Model | Number of sheaves | Rated load (kN) | MAX. Rope Diameter(mm) | Weight (kg) |
| 11401 | QHJ1x1 | 1 | 10 | Φ8 | 1.8 |
| 11402 | QHJ1x2 | 2 | Φ6 | 1.8 | |
| 11403 | QHJ1x3 | 3 | Φ6 | 2.1 | |
| 11411 | QHJ2x1 | 1 | 20 | Φ10 | 2.9 |
| 11412 | QHJ2x2 | 2 | Φ8 | 3.1 | |
| 11413 | QHJ2x3 | 3 | Φ8 | 3.8 | |
| 11421 | QHJ3x1 | 1 | 30 | Φ11 | 4.1 |
| 11422 | QHJ3x2 | 2 | Φ10 | 4.3 | |
| 11423 | QHJ3x3 | 3 | Φ8 | 5.3 | |
| 11424 | QHJ3x4 | 4 | Φ8 | 6.3 | |
| 11431 | QHJ5x1 | 1 | 50 | Φ13 | 5.6 |
| 11432 | QHJ5x2 | 2 | Φ11 | 6.1 | |
| 11433 | QHJ5x3 | 3 | Φ10 | 7.3 | |
| 11434 | QHJ5x4 | 4 | Φ10 | 8.3 | |
| 11441 | QHJx1 | 1 | 50 | Φ8 | 1.3 |
| 11442 | QHJx2 | 2 |
Φ6
|
1.3 | |
| 11443 | QHJx3 | 3 | Φ6 | 1.8 |
Remarks:

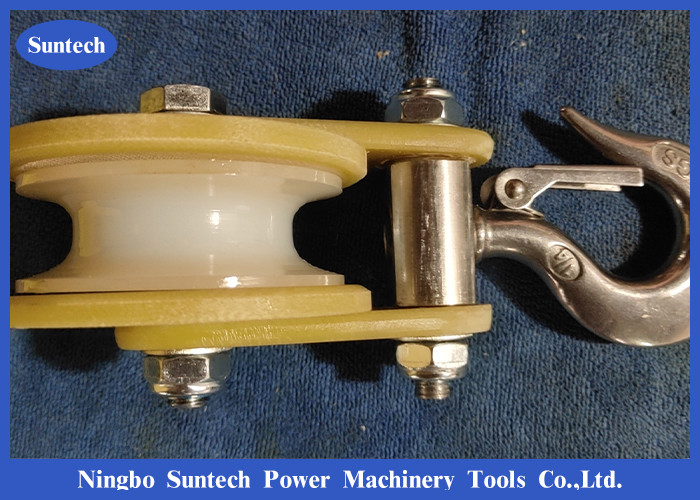

1.Product is made of Epoxy resin plate with MC nylon wheel,it has light weight.
2.Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.
3.Accessories style is need to indicated such like open type,close type,hook type and ring type when customer place order.
Other Hoisting Tackle for your referenc.
