Place of Origin: | Ningbo China |
Brand Name: | Suntech |
Certification: | ISO9001:2008 |
Model Number: | QH Hoisting Tackle |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Get Latest Price |
Packaging Details: | Pallets and Cartons |
Delivery Time: | In Stock |
Payment Terms: | L/C, T/T |
Supply Ability: | 800 sets per month |
Name: | Hoisting Block | Material: | Steel Iron |
---|---|---|---|
Number Of Sheave: | 1,2,3 | Apply: | Stringing Tools Transmission Line |
Load Rated: | 2T,5T Or Others | Use: | Lifting Pulley |
High Light: | pulley tackle for erecting pole,erecting pole pulley tackle,2T pulley tackle |

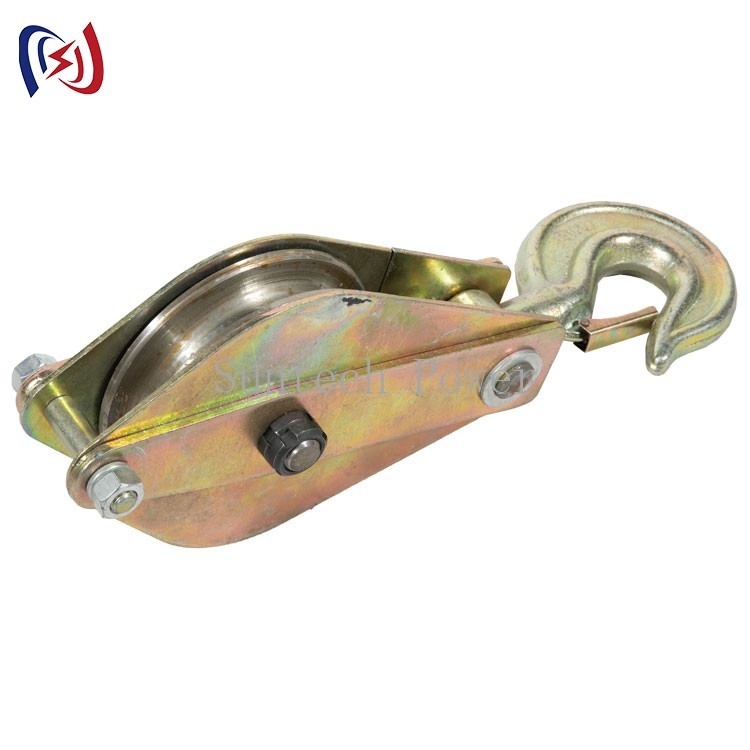

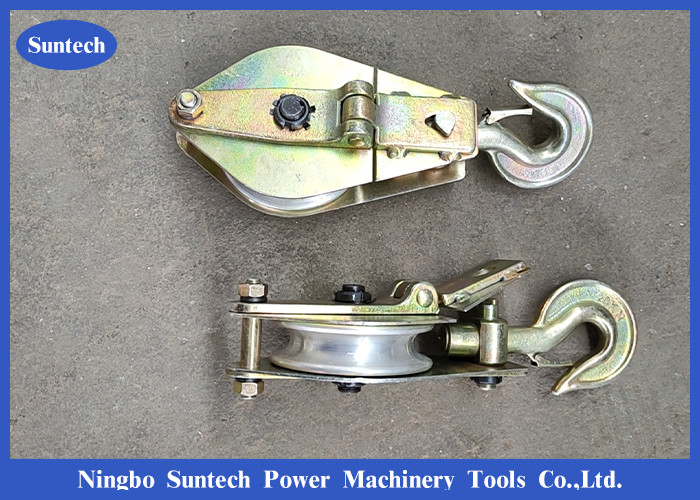

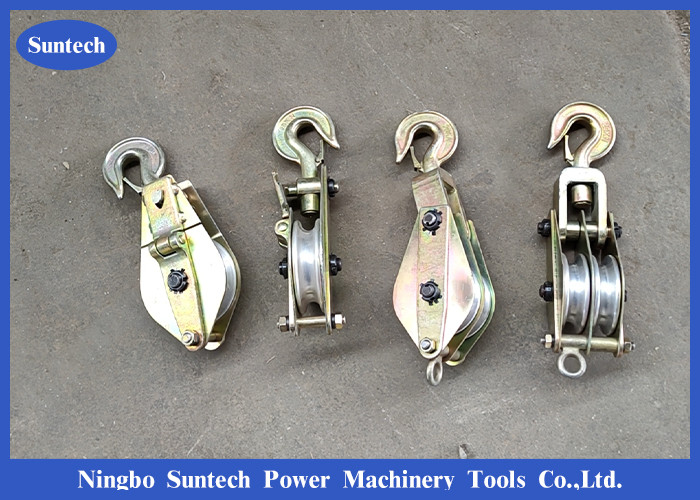

Tackle Tower Erection Stringing Tools Three Wheels Steel Hoisting For Erecting Pole
Application
Snatch Steel Wire Rope Pulley Block is for lifting.It can be used in single, also can be used as a block.
Hoisting Tackle Characteristics
1. Material: Aluminum alloy
2. Single wheel opening hook type.Two or three sheaves are closed.
3. It is light weight using the aluminum alloy.
Uses
Tower Erection Tools Three Wheels Steel Hoisting Tackle Block,is to erect pole and tower, line construction, hoist devices, etc.
Features
Tower Erection Tools Three Wheels Steel Hoisting Tackle Block,Hoisting point type: hook style(G), round style(H),clevis type(B)
Data Details
Item Number | Model | Number of Sheave | Rated Load (kN) | Sheave Outer Diameter × Sheave Width (mm) |
Rope Diameter (mm) | Weight (kg) | Hoisting Point Type | ||
11181 | QH1-1K | 1 | 10 | Φ100×31 | Φ7.7 | 2.8 | G | H | |
11182 | QH1-2 | 2 | 10 | Φ80×28 | Φ6 | 2.8 | G | H | |
11183 | QH1-3 | 3 | 10 | Φ80×27 | Φ6 | 4.1 | G | H | |
11191 | QH2-1K | 1 | 20 | Φ120×35 | Φ9.3 | 4.2 | G | H | B |
11192 | QH2-2 | 2 | 20 | Φ100×31 | Φ7.7 | 4.2 | G | H | |
11193 | QH2-3 | 3 | 20 | Φ100×31 | Φ7.7 | 6 | G | H | |
11201 | QH3-1K | 1 | 30 | Φ150×39 | Φ11 | 7 | G | H | B |
11202 | QH3-2 | 2 | 30 | Φ120×35 | Φ9.3 | 5.3 | G | H | |
11203 | QH3-3 | 3 | 30 | Φ100×31 | Φ7.7 | 6.5 | G | H | |
11211 | QH5-1K | 1 | 50 | Φ166×40 | Φ13 | 9.6 | G | H | B |
11212 | QH5-2 | 2 | 50 | Φ150×39 | Φ11 | 10.8 | G | H | |
11213 | QH5-3 | 3 | 50 | Φ120×35 | Φ9.3 | 7.7 | G | H | |
11221 | QH8-1K | 1 | 80 | Φ205×50 | Φ17 | 12.5 | G | H | B |
11222 | QH8-2 | 2 | 80 | Φ166×40 | Φ13 | 17 | G | H | |
11223 | QH8-3 | 3 | 80 | Φ150×39 | Φ11 | 17.5 | G | H | |
11231 | QH10-1K | 1 | 100 | Φ246×60 | Φ18.5 | 25 | G | B | |
11232 | QH10-2 | 2 | 100 | Φ166×40 | Φ13 | 18.5 | H | ||
11233 | QH10-3 | 3 | 100 | Φ150×39 | Φ11 | 20 | H | ||
11241 | QH15-1K | 1 | 150 | Φ280×65 | Φ21.5 | 34 | B | ||
11242 | QH15-2 | 2 | 150 | Φ205×50 | Φ17 | 22 | H | ||
11243 | QH15-3 | 3 | 150 | Φ166×40 | Φ13 | 26 | H | ||
11244 | QH15-4 | 4 | 150 | Φ150×39 | Φ11 | 30 | H | ||
11248 | QH20-4 | 4 | 200 | Φ205×50 | Φ17 | 50 | H |
Contact Person: Peter
Tel: 86-13958364836
