Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Made In China |
| Brand Name: | Suntech |
| Certification: | ISO & CE |
| Model Number: | QH |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Get newest price |
| Packaging Details: | Exported Wooden Boxes |
| Delivery Time: | 7-9 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 900pcs per month |
| Name: | Hoisting Tackle | Apply: | In Overhead Line Site |
|---|---|---|---|
| Type: | Hook Type | Weight: | 1.8kg-15kg |
| Number Of Sheaves: | 1-5 Wheels | Usage: | Conductor Pulley Block |
| High Light: | CE hoisting wire rope pulley block,hoisting wire rope pulley block CE |
||

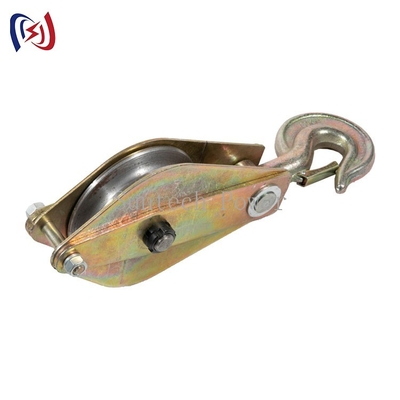

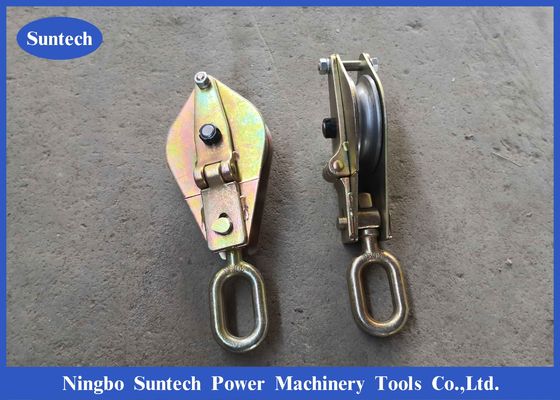

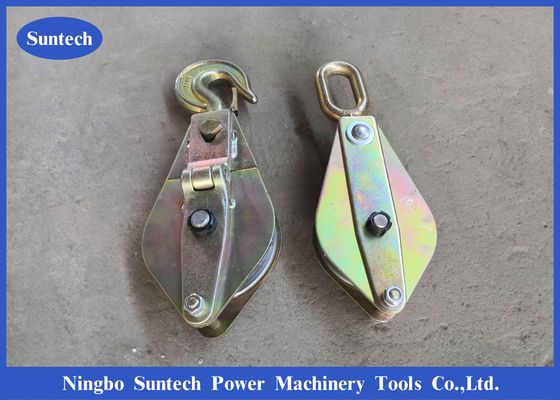

Sheave Hook Type Hoisting Pulling Block, Lifting Hook With Pulley
Wire Rope Pulley Block Snatch Block is for lifting and erecting pole and tower, line construction, hoisting devices.etc. It has 3 styles, G,H,B.
All are made by the best top steel material, with the bearings and through the tensioning and duration test, after millions time friction, it still can keep the smooth groove.
Hook Type Hoisting Tackle Specficaiton
| Item Number | Model | Number of Sheave | Rated Load (kN) | Sheave Outer Diameter × Sheave Width (mm) |
Rope Diameter (mm) | Weight (kg) | Hoisting Point Type | ||
| 11181 | QH1-1K | 1 | 10 | Φ100×31 | Φ7.7 | 2.8 | G | H | |
| 11182 | QH1-2 | 2 | 10 | Φ80×28 | Φ6 | 2.8 | G | H | |
| 11183 | QH1-3 | 3 | 10 | Φ80×27 | Φ6 | 4.1 | G | H | |
| 11191 | QH2-1K | 1 | 20 | Φ120×35 | Φ9.3 | 4.2 | G | H | B |
| 11192 | QH2-2 | 2 | 20 | Φ100×31 | Φ7.7 | 4.2 | G | H | |
| 11193 | QH2-3 | 3 | 20 | Φ100×31 | Φ7.7 | 6 | G | H | |
| 11201 | QH3-1K | 1 | 30 | Φ150×39 | Φ11 | 7 | G | H | B |
| 11202 | QH3-2 | 2 | 30 | Φ120×35 | Φ9.3 | 5.3 | G | H | |
| 11203 | QH3-3 | 3 | 30 | Φ100×31 | Φ7.7 | 6.5 | G | H | |
| 11211 | QH5-1K | 1 | 50 | Φ166×40 | Φ13 | 9.6 | G | H | B |
| 11212 | QH5-2 | 2 | 50 | Φ150×39 | Φ11 | 10.8 | G | H | |
| 11213 | QH5-3 | 3 | 50 | Φ120×35 | Φ9.3 | 7.7 | G | H | |
| 11221 | QH8-1K | 1 | 80 | Φ205×50 | Φ17 | 12.5 | G | H | B |
| 11222 | QH8-2 | 2 | 80 | Φ166×40 | Φ13 | 17 | G | H | |
| 11223 | QH8-3 | 3 | 80 | Φ150×39 | Φ11 | 17.5 | G | H | |
| 11231 | QH10-1K | 1 | 100 | Φ246×60 | Φ18.5 | 25 | G | B | |
| 11232 | QH10-2 | 2 | 100 | Φ166×40 | Φ13 | 18.5 | H | ||
| 11233 | QH10-3 | 3 | 100 | Φ150×39 | Φ11 | 20 | H | ||
| 11241 | QH15-1K | 1 | 150 | Φ280×65 | Φ21.5 | 34 | B | ||
| 11242 | QH15-2 | 2 | 150 | Φ205×50 | Φ17 | 22 | H | ||
| 11243 | QH15-3 | 3 | 150 | Φ166×40 | Φ13 | 26 | H | ||
| 11244 | QH15-4 | 4 | 150 | Φ150×39 | Φ11 | 30 | H | ||
| 11248 | QH20-4 | 4 | 200 | Φ205×50 | Φ17 | 50 | H | ||
