Round Eye Type 3t Cable Pulley Blocks Steel Transmission Line Stringing Tools

Product Details:

Place of Origin:	Ningbo,China
Brand Name:	Suntech
Certification:	ISO,CE
Model Number:	QH

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Get the lastest price
Packaging Details:	Exported Pallets and Cases
Delivery Time:	5-8 days after payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1500pcs per month

Contact Now

Detailed Product Description

Type:	Round Eye Type	Load Capacity:	3T
Function::	Lifting	Material:	Steel
Weight:	6.5kg	Usage:	Stringing Tools
High Light:	3t cable pulley blocks , cable pulley blocks 3t , cable pulley blocks stringing tools

Round Eye Type 3T Cable Pulling Hoisting Block Made of Steel

Application:Round Eye Type 5T Two Wheels Cable Pulling Hoisting Block Made of Steel

Our iron hoisting tackle is widely applicable to erection of overhead line structure, lifting equipment, and other hoisting devices. This product is classified as hook type G, ring style H, and clevis type B,Thus the style our customer needs should be clearly indicated in the contract when the order is palced.

Detailed Date:Round Eye Type 3T One Wheel Cable Pulling Hoisting Block Made of Steel

Item Number	Model	Number of Sheave	Rated Load (kN)	Sheave Outer Diameter × Sheave Width (mm)	Rope Diameter (mm)	Weight (kg)	Hoisting Point Type
11181	QH1-1K	1	10	Φ100×31	Φ7.7	2.8	G	H
11182	QH1-2	2	10	Φ80×28	Φ6	2.8	G	H
11183	QH1-3	3	10	Φ80×27	Φ6	4.1	G	H
11191	QH2-1K	1	20	Φ120×35	Φ9.3	4.2	G	H	B
11192	QH2-2	2	20	Φ100×31	Φ7.7	4.2	G	H
11193	QH2-3	3	20	Φ100×31	Φ7.7	6	G	H
11201	QH3-1K	1	30	Φ150×39	Φ11	7	G	H	B
11202	QH3-2	2	30	Φ120×35	Φ9.3	5.3	G	H
11203	QH3-3	3	30	Φ100×31	Φ7.7	6.5	G	H
11211	QH5-1K	1	50	Φ166×40	Φ13	9.6	G	H	B
11212	QH5-2	2	50	Φ150×39	Φ11	10.8	G	H
11213	QH5-3	3	50	Φ120×35	Φ9.3	7.7	G	H
11221	QH8-1K	1	80	Φ205×50	Φ17	12.5	G	H	B
11222	QH8-2	2	80	Φ166×40	Φ13	17	G	H
11223	QH8-3	3	80	Φ150×39	Φ11	17.5	G	H
11231	QH10-1K	1	100	Φ246×60	Φ18.5	25	G		B
11232	QH10-2	2	100	Φ166×40	Φ13	18.5		H
11233	QH10-3	3	100	Φ150×39	Φ11	20		H
11241	QH15-1K	1	150	Φ280×65	Φ21.5	34			B
11242	QH15-2	2	150	Φ205×50	Φ17	22		H
11243	QH15-3	3	150	Φ166×40	Φ13	26		H
11244	QH15-4	4	150	Φ150×39	Φ11	30		H
11248	QH20-4	4	200	Φ205×50	Φ17	50		H

Factory price:
We are direct manfucturer for stringing tools,so you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.

Feedback:
Your satisfaction and positive feedback is very important to us. If you have any problems with our Tools or services, please feel free to contact us. We will do our best to solve any problems and provide you the best customer services

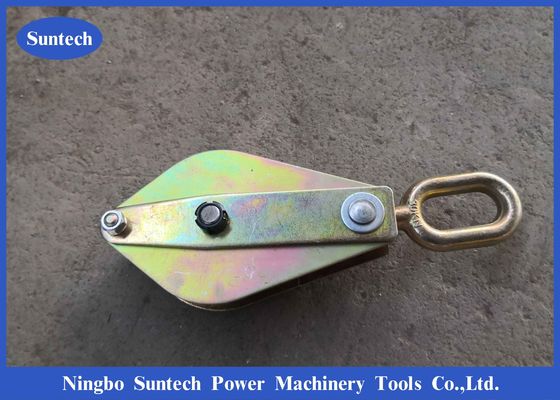

Round Eye Type 3t Cable Pulley Blocks Steel Transmission Line Stringing Tools 0

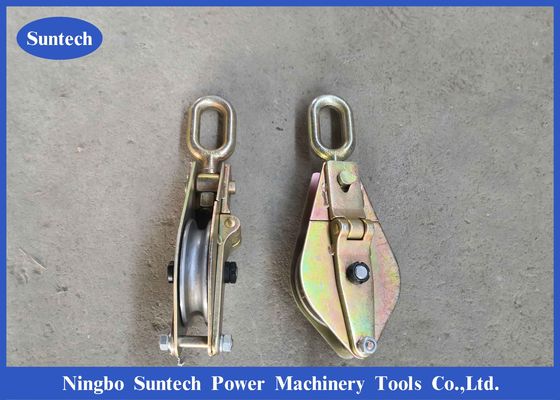

Round Eye Type 3t Cable Pulley Blocks Steel Transmission Line Stringing Tools 1
