Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo or Shanghai |
| Brand Name: | Suntech |
| Certification: | ISO9001:2008 |
| Model Number: | QH |
| Minimum Order Quantity: | 2 Sets |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Exported Wooden Case |
| Delivery Time: | 7 days after deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800pcs per month |
| Weight: | 3.4kg | Rated Load: | 30KN |
|---|---|---|---|
| Material: | Steel | Application: | Erecting Device |
| Usage: | Pole Or Device Or Line | Item: | Lifting Tools |
| High Light: | 30kn Conductor Stringing Tools,30kn lifting block and tackle,Conductor Stringing lifting block and tackle |
||

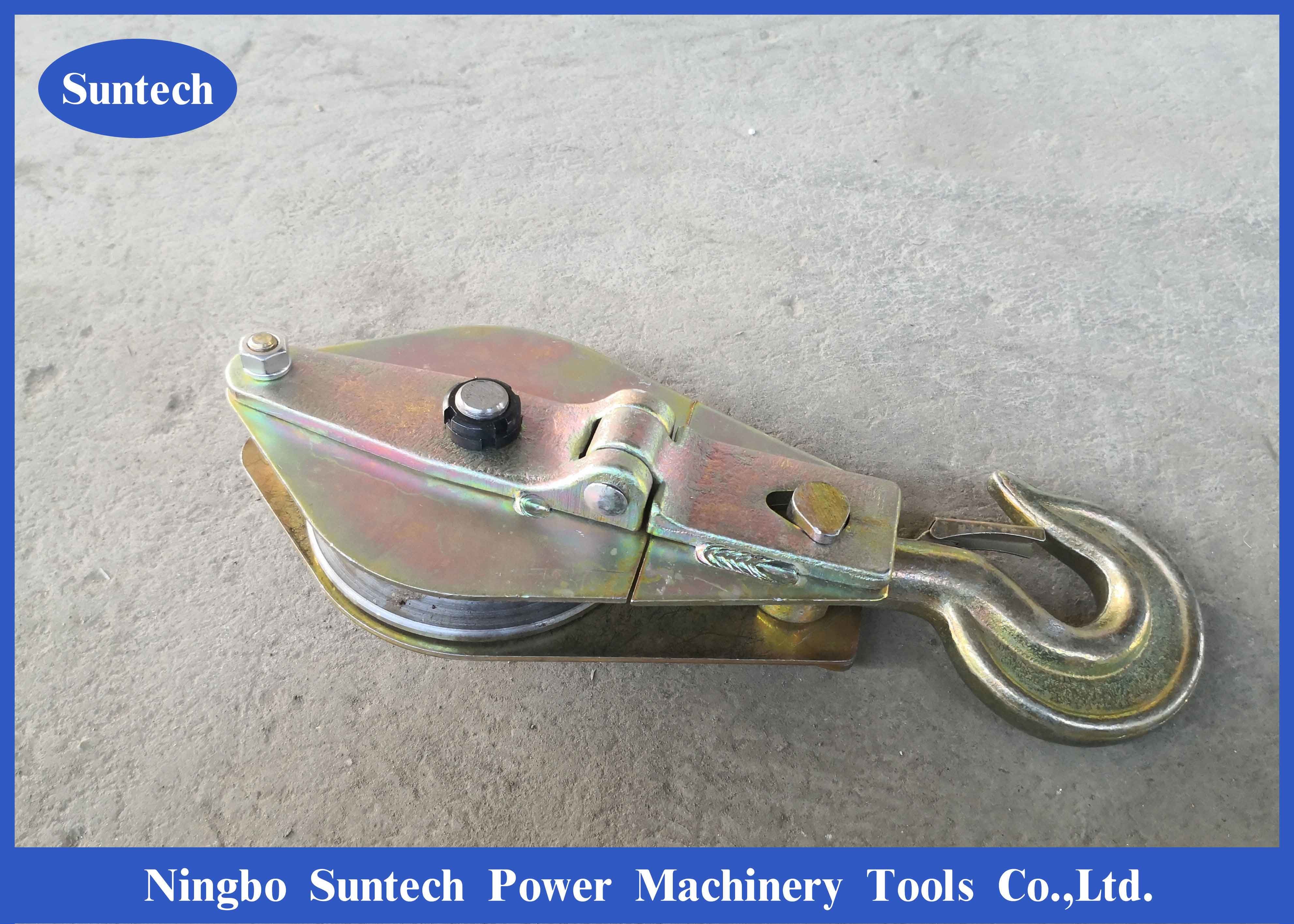

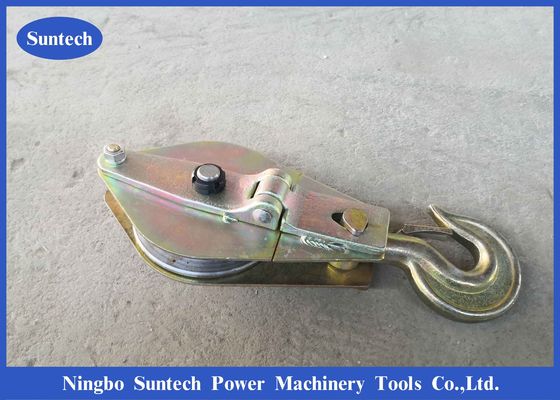

30KN Basic Construction Stringing Tools Steel Hoisting Tackle Block Pulley For Lifting
Ningbo Suntech Power Tools Machinery Co.,Ltd. is a professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,ect.
Iron Lifting Tackle Specification.
| Item Number | Model | Number of Sheave | Rated Load (kN) | Sheave Outer Diameter × Sheave Width (mm) |
Rope Diameter (mm) | Weight (kg) | Hoisting Point Type | ||
| 11181 | QH1-1K | 1 | 10 | Φ100×31 | Φ7.7 | 2.8 | G | H | |
| 11182 | QH1-2 | 2 | 10 | Φ80×28 | Φ6 | 2.8 | G | H | |
| 11183 | QH1-3 | 3 | 10 | Φ80×27 | Φ6 | 4.1 | G | H | |
| 11191 | QH2-1K | 1 | 20 | Φ120×35 | Φ9.3 | 4.2 | G | H | B |
| 11192 | QH2-2 | 2 | 20 | Φ100×31 | Φ7.7 | 4.2 | G | H | |
| 11193 | QH2-3 | 3 | 20 | Φ100×31 | Φ7.7 | 6 | G | H | |
| 11201 | QH3-1K | 1 | 30 | Φ150×39 | Φ11 | 7 | G | H | B |
| 11202 | QH3-2 | 2 | 30 | Φ120×35 | Φ9.3 | 5.3 | G | H | |
| 11203 | QH3-3 | 3 | 30 | Φ100×31 | Φ7.7 | 6.5 | G | H | |
| 11211 | QH5-1K | 1 | 50 | Φ166×40 | Φ13 | 9.6 | G | H | B |
| 11212 | QH5-2 | 2 | 50 | Φ150×39 | Φ11 | 10.8 | G | H | |
| 11213 | QH5-3 | 3 | 50 | Φ120×35 | Φ9.3 | 7.7 | G | H | |
| 11221 | QH8-1K | 1 | 80 | Φ205×50 | Φ17 | 12.5 | G | H | B |
| 11222 | QH8-2 | 2 | 80 | Φ166×40 | Φ13 | 17 | G | H | |
| 11223 | QH8-3 | 3 | 80 | Φ150×39 | Φ11 | 17.5 | G | H | |
| 11231 | QH10-1K | 1 | 100 | Φ246×60 | Φ18.5 | 25 | G | B | |
| 11232 | QH10-2 | 2 | 100 | Φ166×40 | Φ13 | 18.5 | H | ||
| 11233 | QH10-3 | 3 | 100 | Φ150×39 | Φ11 | 20 | H | ||
| 11241 | QH15-1K | 1 | 150 | Φ280×65 | Φ21.5 | 34 | B | ||
| 11242 | QH15-2 | 2 | 150 | Φ205×50 | Φ17 | 22 | H | ||
| 11243 | QH15-3 | 3 | 150 | Φ166×40 | Φ13 | 26 | H | ||
| 11244 | QH15-4 | 4 | 150 | Φ150×39 | Φ11 | 30 | H | ||
| 11248 | QH20-4 | 4 | 200 | Φ205×50 | Φ17 | 50 | H | ||
Our main product is stringing blocks with single sheave, 3 sheaves, 5 sheaves, 7 sheaves, 9 sheaves stringing blocks, include helicopter stringing blocks. Our stringing blocks are produced under special and strict process: 1. Steel frames are welded by welding robot. 2. Shot peening surface treatment before galvanization. 3. Best ball bearings and special grease according to different conditions. 4. Strict assemble procedure, load test before ex-works. Contact with us for more details,thanks.
Contact Person: Peter
Tel: 86-13958364836
