Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO9001:2008 |
| Model Number: | QHN |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Get newest price |
| Packaging Details: | Exported Pallets and Cases |
| Delivery Time: | 5-7 days after deposit |
| Payment Terms: | L/C, T/T, MoneyGram, Western Union |
| Supply Ability: | 2000pcs per month |
| Application: | Stringing Tools Hosting Blocks | Item: | 11101 |
|---|---|---|---|
| Type: | Pulling Conductors | Sheave Number: | One |
| Capacity: | 1 Ton | Warranty: | One Year |
| High Light: | nylon sheave rope pulley blocks,10kn rope pulley blocks,rope pulley blocks 10kn |
||

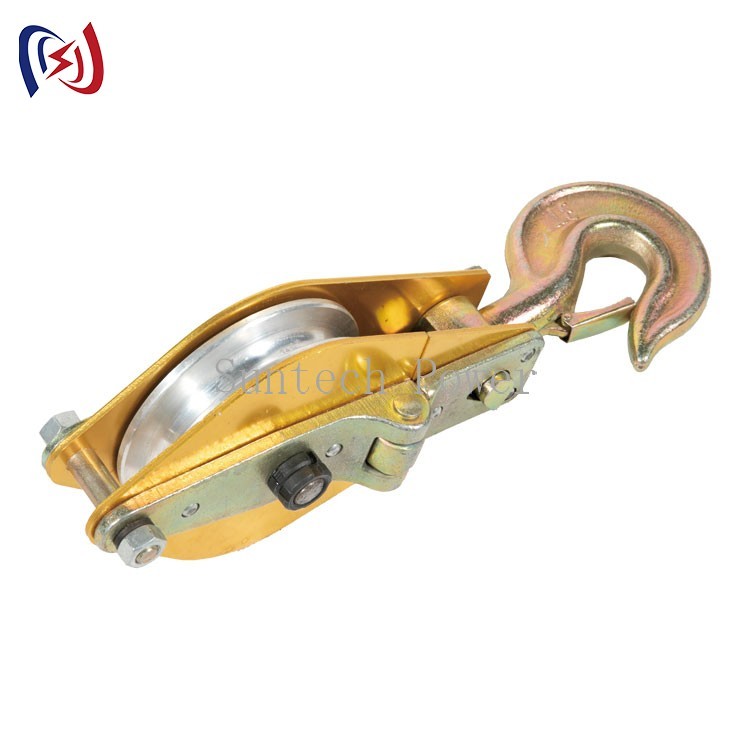

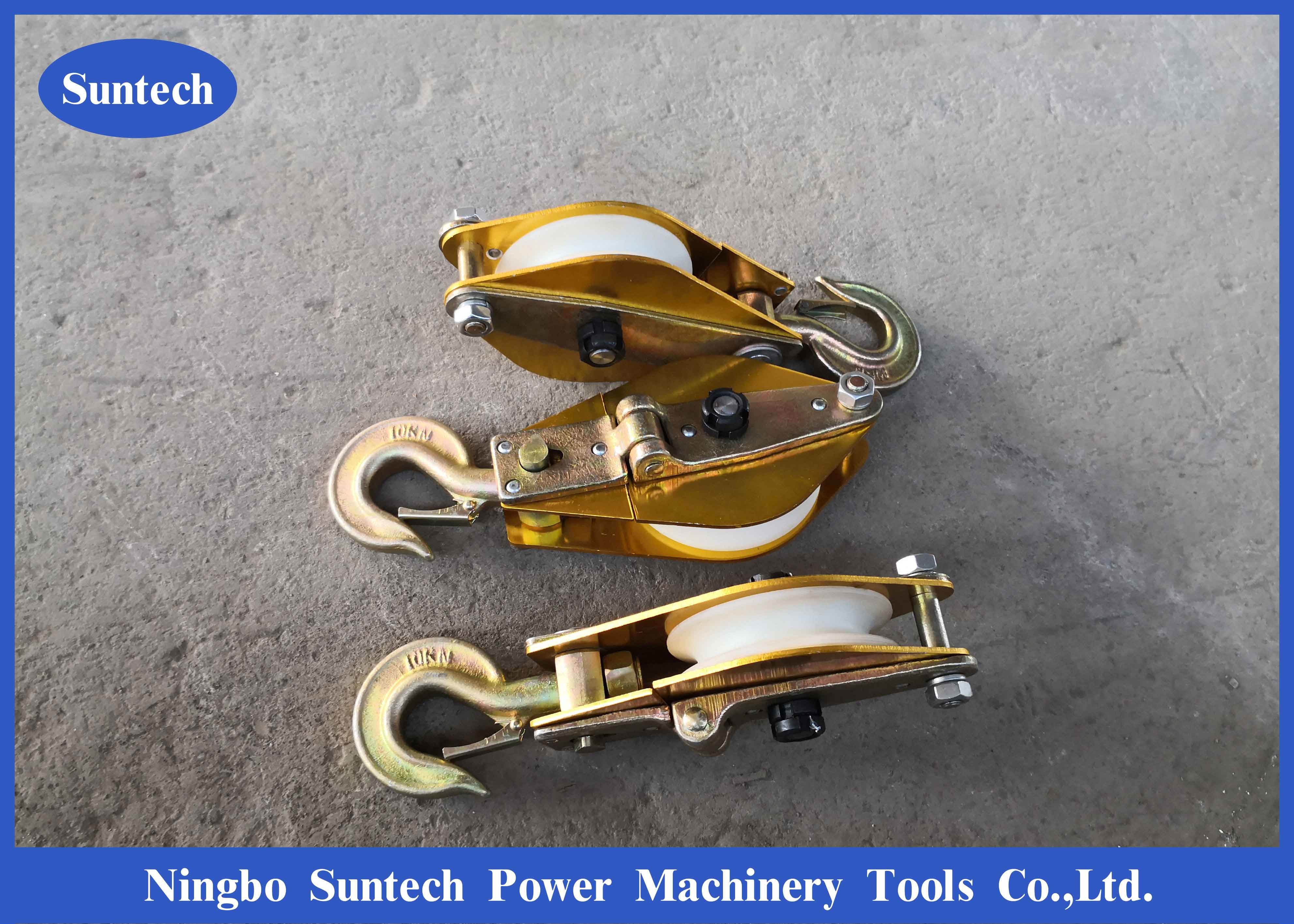

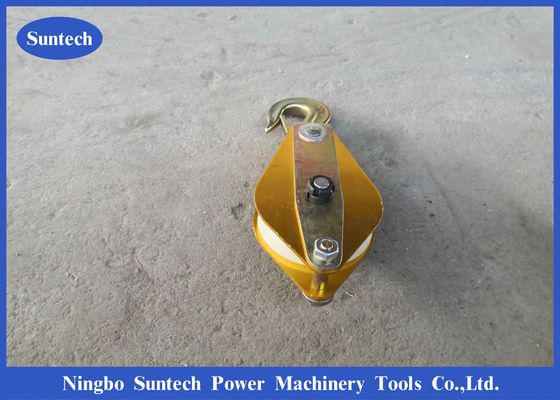

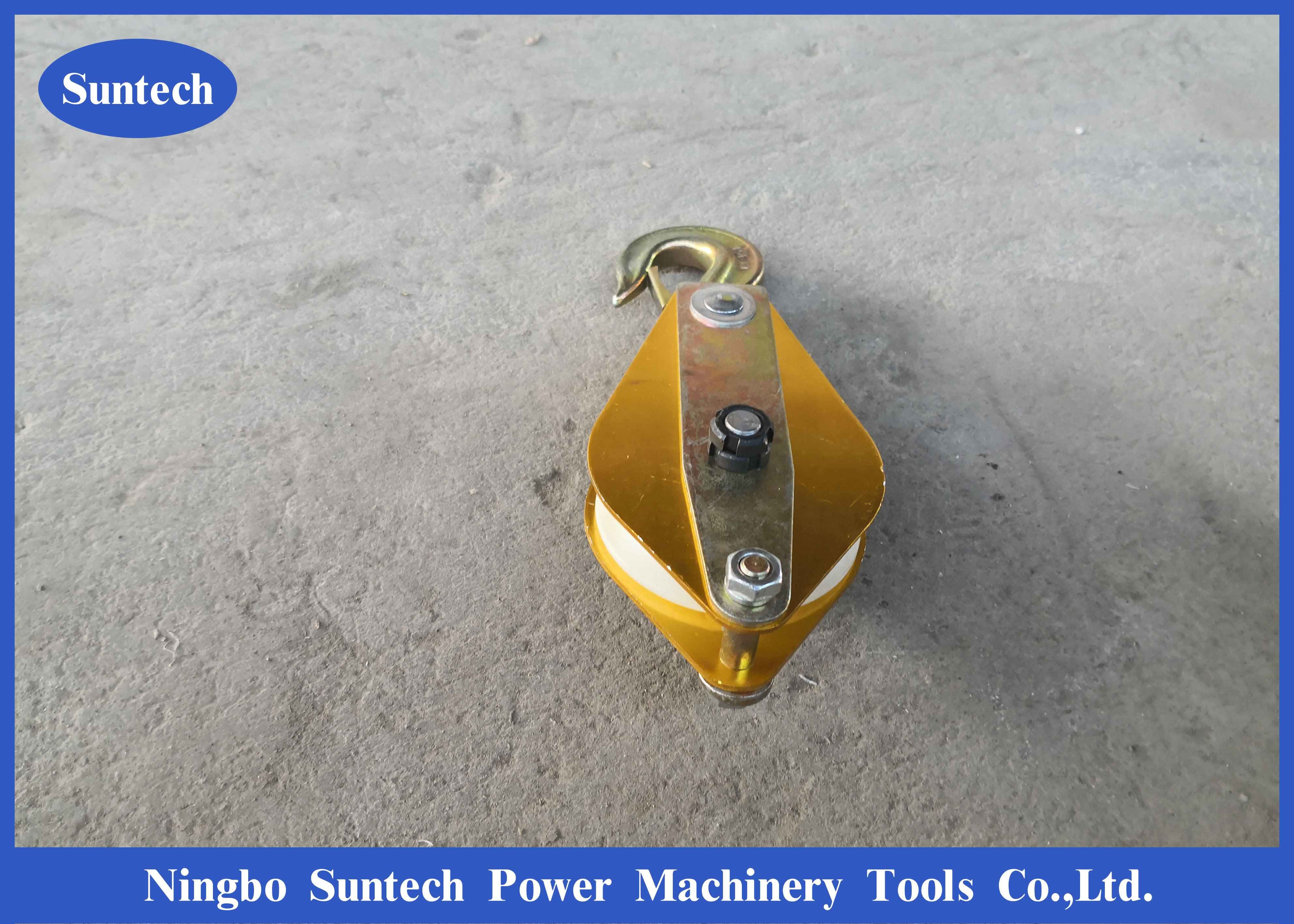

Tranmission Stringing Hoisting Pulley Block Tackle 10KN Nylon Sheave
This hoisting tackle(aluminum alloy plated with nylon sheave) apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.
Suntech Power is a professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,ect.
| Item number | Model | Number of sheaves | Rated load (kN) |
(MM) Roller Dia width |
(mm) MAX. Rop Dia meter |
Weight (kg) |
| 11101 | QHN1x1 | 1 | 10 | Φ100×31 | Φ8 | 2 |
| 11102 | QHN1x2 | 2 | Φ80×27 | Φ6 | 2 | |
| 11103 | QHN1x3 | 3 | Φ80×27 | Φ6 | 2 | |
| 11111 | QHN2x1 | 1 | 20 | Φ120×35 | Φ10 | 2 |
| 11112 | QHN2x2 | 2 | Φ100×31 | Φ8 | 3 | |
| 11113 | QHN2x3 | 3 | Φ100×31 | Φ8 | 4 | |
| 11121 | QHN3x1 | 1 | 30 | Φ150×39 | Φ11 | 3 |
| 11122 | QHN3x2 | 2 | Φ120×35 | Φ10 | 4 | |
| 11123 | QHN3x3 | 3 | Φ100×31 | Φ8 | 5 | |
| 11131 | QHN5x1 | 1 | 50 | Φ166×40 | Φ13 | 5 |
| 11132 | QHN5x2 | 2 | Φ150×39 | Φ11 | 6 | |
| 11133 | QHN5x3 | 3 | Φ120×35 | Φ10 | 5 | |
| 11141 | QHN8x1 | 1 | 80 | Φ205×49 | Φ18 | 7 |
| 11142 | QHN8x2 | 2 | Φ166×40 | Φ13 | 8 | |
| 11143 | QHN8x3 | 3 | Φ150×39 | Φ11 | 8 | |
| 11151 | QHN10x1 | 1 | 100 | Φ246×60 | Φ20 | 11 |
| 11152 | QHN10x2 | 2 | Φ166×40 | Φ13 | 10 | |
| 11153 | QHN10x3 | 3 | Φ150×39 | Φ11 | 12 |
Product is made of aluminum alloy plate with MC nylon wheel,it has light weight
