| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | QHN1X1 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Wooden Cases |
| Delivery Time: | 7-9 days after deposit |
| Payment Terms: | L/C, T/T, MoneyGram, Western Union |
| Supply Ability: | 800pcs per month |
| Product Name: | Nylon Sheave Pulley Blocks | Item: | Nylon Pulley |
|---|---|---|---|
| Type: | Open Type | Number: | 1 |
| Capacity: | 10KN | License: | ISO,CE |
| High Light: | aluminous alloy Conductor Stringing Tools,aluminous alloy pulley tackle,Conductor Stringing pulley tackle |
||

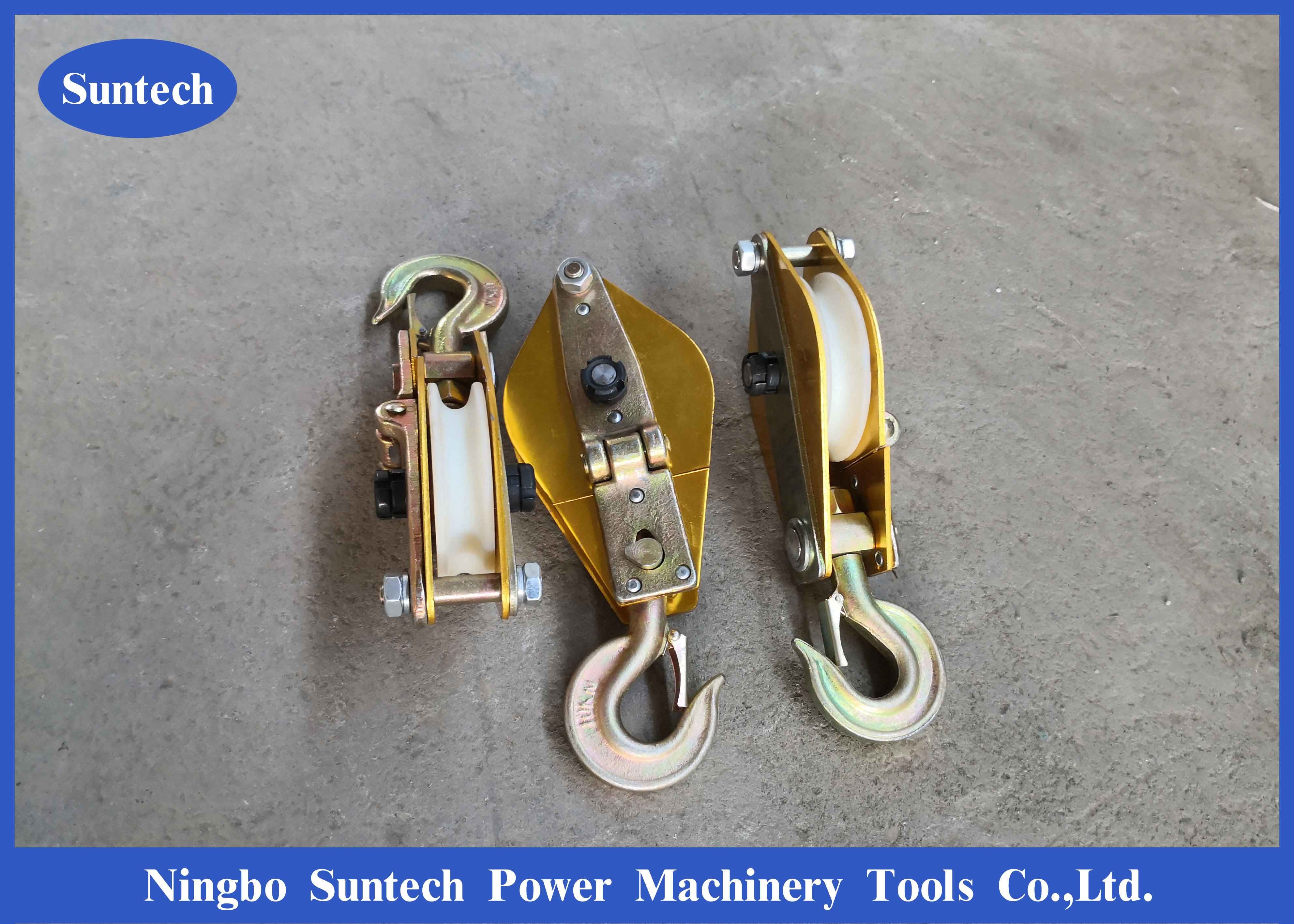

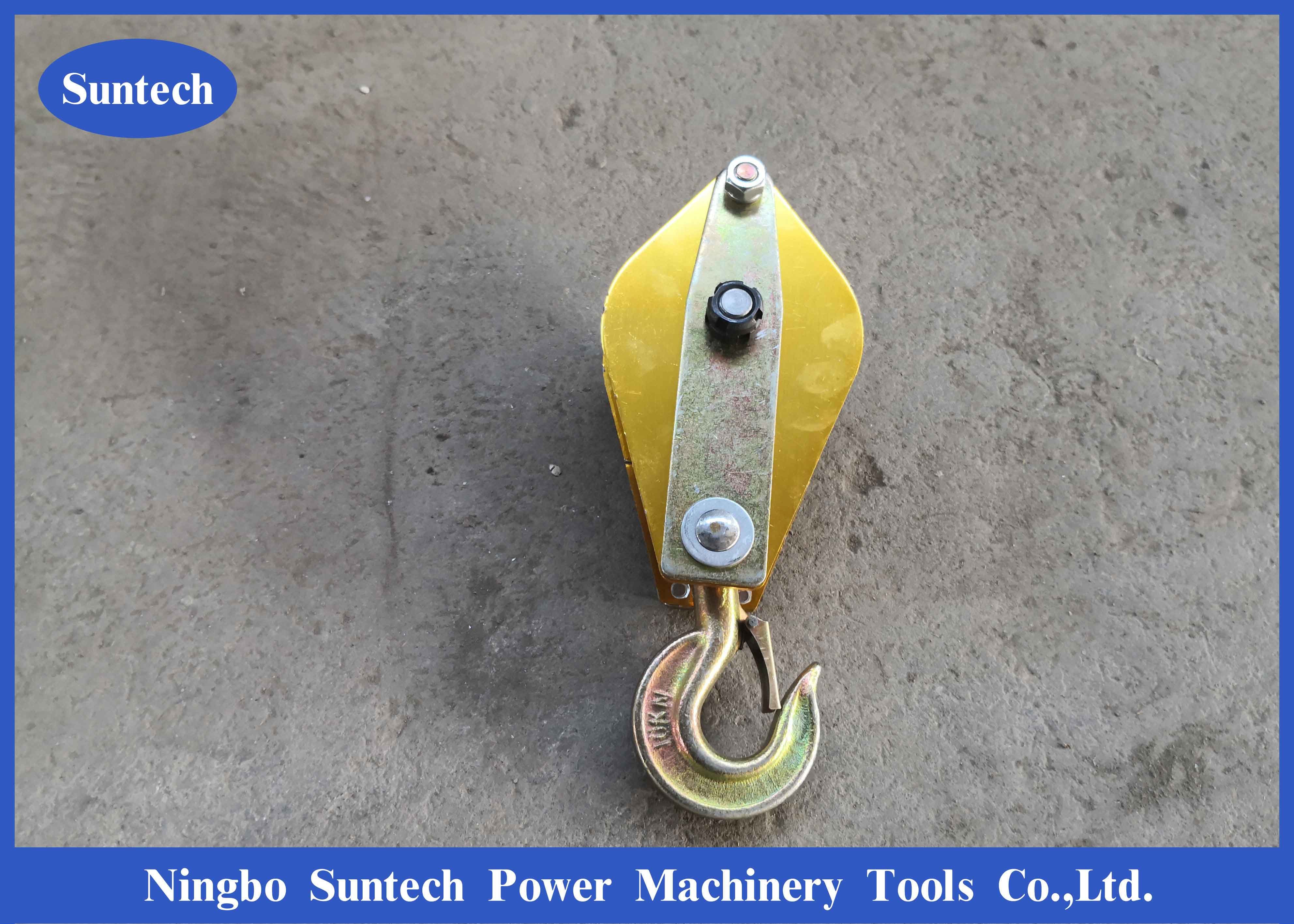

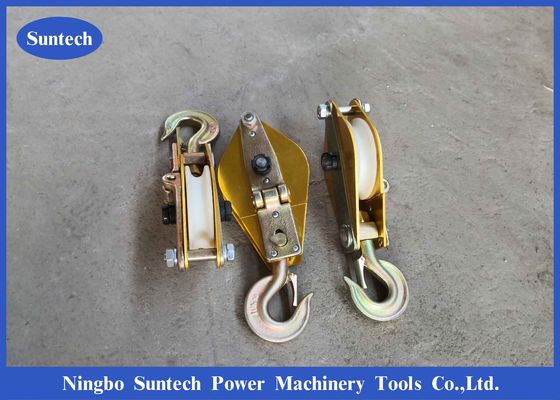

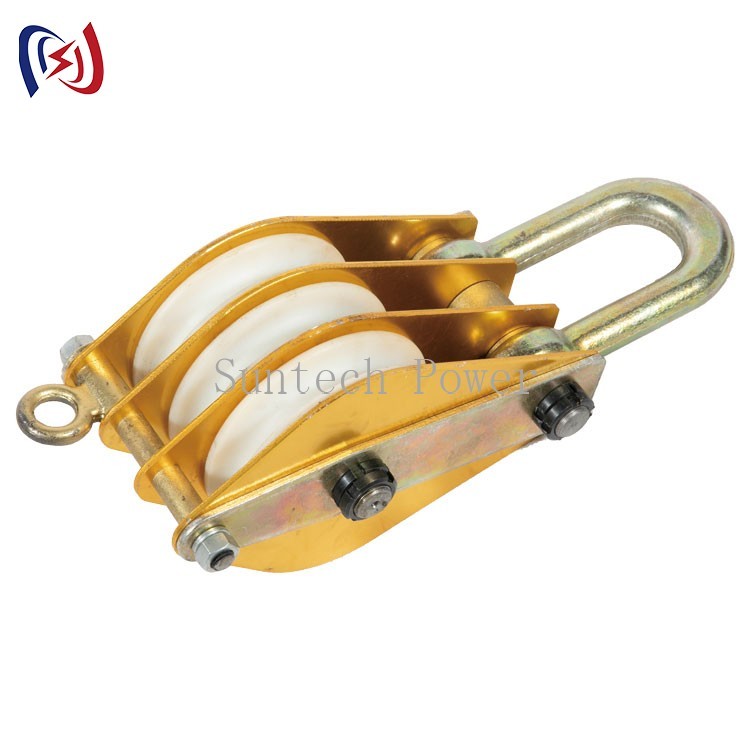

Open Type Nylon Sheave Hoisting Tackle , Rope Pulley Block with Hook
Hoisting Aluminous alloy and MC nylon sheave tackle are suitable fordifference diameter steel ropes; the wheels are mounted on ball bearings. Theframe is made of aluminium alloy or galvanized steel. Rope and swivel joint notincluded.
| Item number | Model | Number of sheaves | Rated load (kN) |
(MM) Roller Dia width |
(mm) MAX. Rop Dia meter |
Weight (kg) |
| 11101 | QHN1x1 | 1 | 10 | Φ100×31 | Φ8 | 2 |
| 11102 | QHN1x2 | 2 | Φ80×27 | Φ6 | 2 | |
| 11103 | QHN1x3 | 3 | Φ80×27 | Φ6 | 2 | |
| 11111 | QHN2x1 | 1 | 20 | Φ120×35 | Φ10 | 2 |
| 11112 | QHN2x2 | 2 | Φ100×31 | Φ8 | 3 | |
| 11113 | QHN2x3 | 3 | Φ100×31 | Φ8 | 4 | |
| 11121 | QHN3x1 | 1 | 30 | Φ150×39 | Φ11 | 3 |
| 11122 | QHN3x2 | 2 | Φ120×35 | Φ10 | 4 | |
| 11123 | QHN3x3 | 3 | Φ100×31 | Φ8 | 5 | |
| 11131 | QHN5x1 | 1 | 50 | Φ166×40 | Φ13 | 5 |
| 11132 | QHN5x2 | 2 | Φ150×39 | Φ11 | 6 | |
| 11133 | QHN5x3 | 3 | Φ120×35 | Φ10 | 5 | |
| 11141 | QHN8x1 | 1 | 80 | Φ205×49 | Φ18 | 7 |
| 11142 | QHN8x2 | 2 | Φ166×40 | Φ13 | 8 | |
| 11143 | QHN8x3 | 3 | Φ150×39 | Φ11 | 8 | |
| 11151 | QHN10x1 | 1 | 100 | Φ246×60 | Φ20 | 11 |
| 11152 | QHN10x2 | 2 | Φ166×40 | Φ13 | 10 | |
| 11153 | QHN10x3 | 3 | Φ150×39 | Φ11 | 12 |
Configuration:
User:Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.
Features:Product is made of aluminum alloy plate with MC nylon wheel,it has light weight.
Specification:Accessories style is need to indicated such like open type,close type,hook type and ring type when customer place order.
Contact Person: Peter
Tel: 86-13958364836
