Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | QHS |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Exported Wooden Case |
| Delivery Time: | 5-7days after Payment |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 1000pcs/month |
| Product Name: | Hoisting Pulling Block | Material: | Steel |
|---|---|---|---|
| Dia: | 11-18.5mm | Weight: | 18kg |
| Type: | Hook Type | Apply: | In Overhead Line Site |
| High Light: | Hook Pulley Block 30kN,30kN Conductor Stringing Tools,10mm Snatch Hook Pulley Block |
||

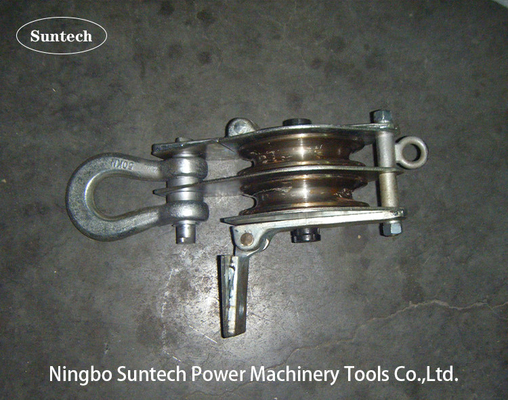

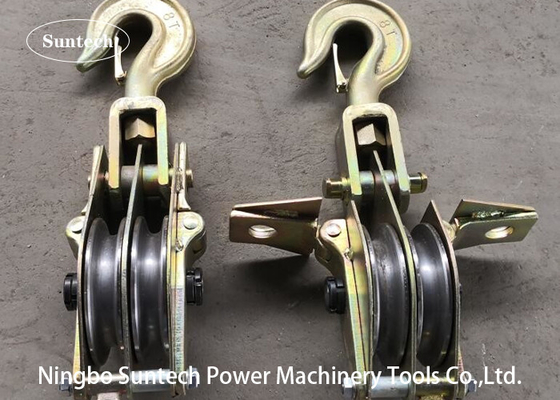

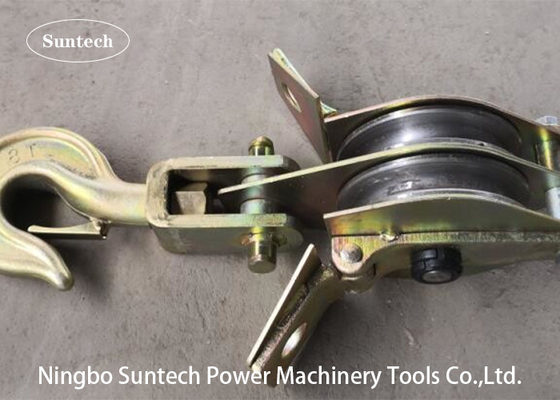

Two Open Tye Hoisting Pulling Block, Hoisting Tackle For Sale
Wire Rope Pulley Block Snatch Block is for lifting and erecting pole and tower, line construction, hoisting devices.etc.
It has 3 styles, G,H,B. All are made by the best top steel material, with the bearings and through the tensioning and
duration test, after millions time friction, it still can keep the smooth groove.
Specification
| Item number | Model | Rated load (kN) |
Roller Dia×width(MM) |
Rope Diameter (mm) |
Weight (kg) |
| 11281 | QHS2-3 | 30 | Φ120×35 | ≤Φ10 | 6.3 |
| 11282 | QHS2-5 | 50 | Φ150×39 | ≤Φ11 | 11.0 |
| 11283 | QHS2-8 | 80 | Φ166×40 | ≤Φ13 | 16.0 |
| 11284 | QHS2-10 | 100 | Φ166×40 | ≤Φ13 | 18.0 |
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
