Aluminum Sheave Hoist Tackle 100KN Conductor Stringing Tools

1pcs

MOQ

Get Latest Price

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Application: Construction Works

Type: Hoist Tackles, Hoist Block

Material: Casting Steel

Product Name: Casting Steel Sheave Lifting Pulley Blocks Steel Hoisting Block

Sheaves: 1-4

Rated Load: 10-100KN

Weight: 2-13KG

Function: Power Line Construction

Highlight:

4 Aluminum Sheave Hoist Tackle

Aluminum Sheave Hoist Tackle 100KN

100KN Conductor Stringing Tools

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO

Model Number: QHL

Payment & Shipping Terms

Packaging Details: Cartons or pallets for exported

Delivery Time: 7-15days after payment

Payment Terms: T/T,L/C, Western Union

Supply Ability: 2000pcs/month

Gallery

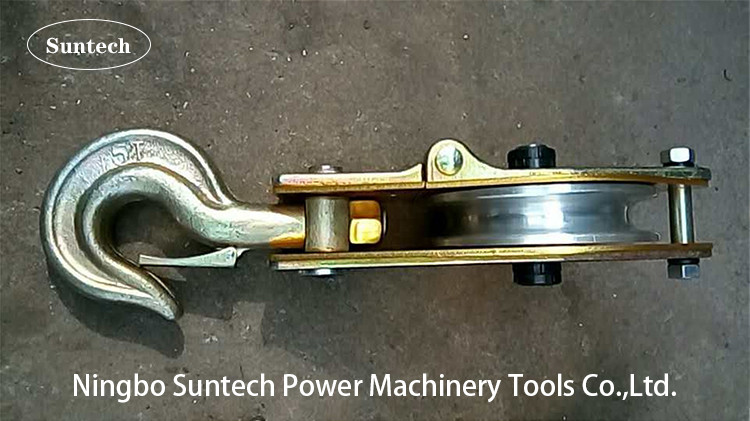

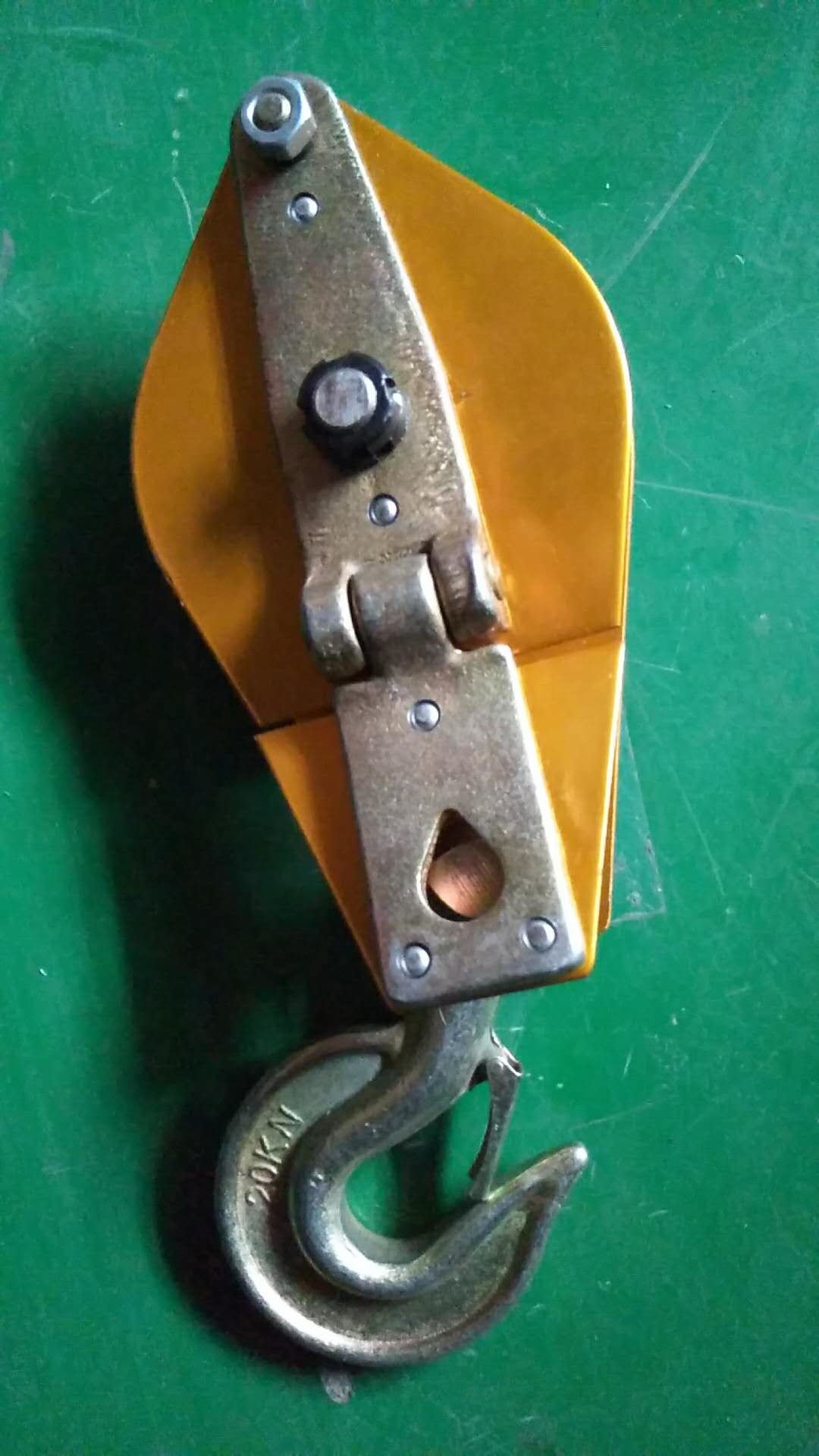

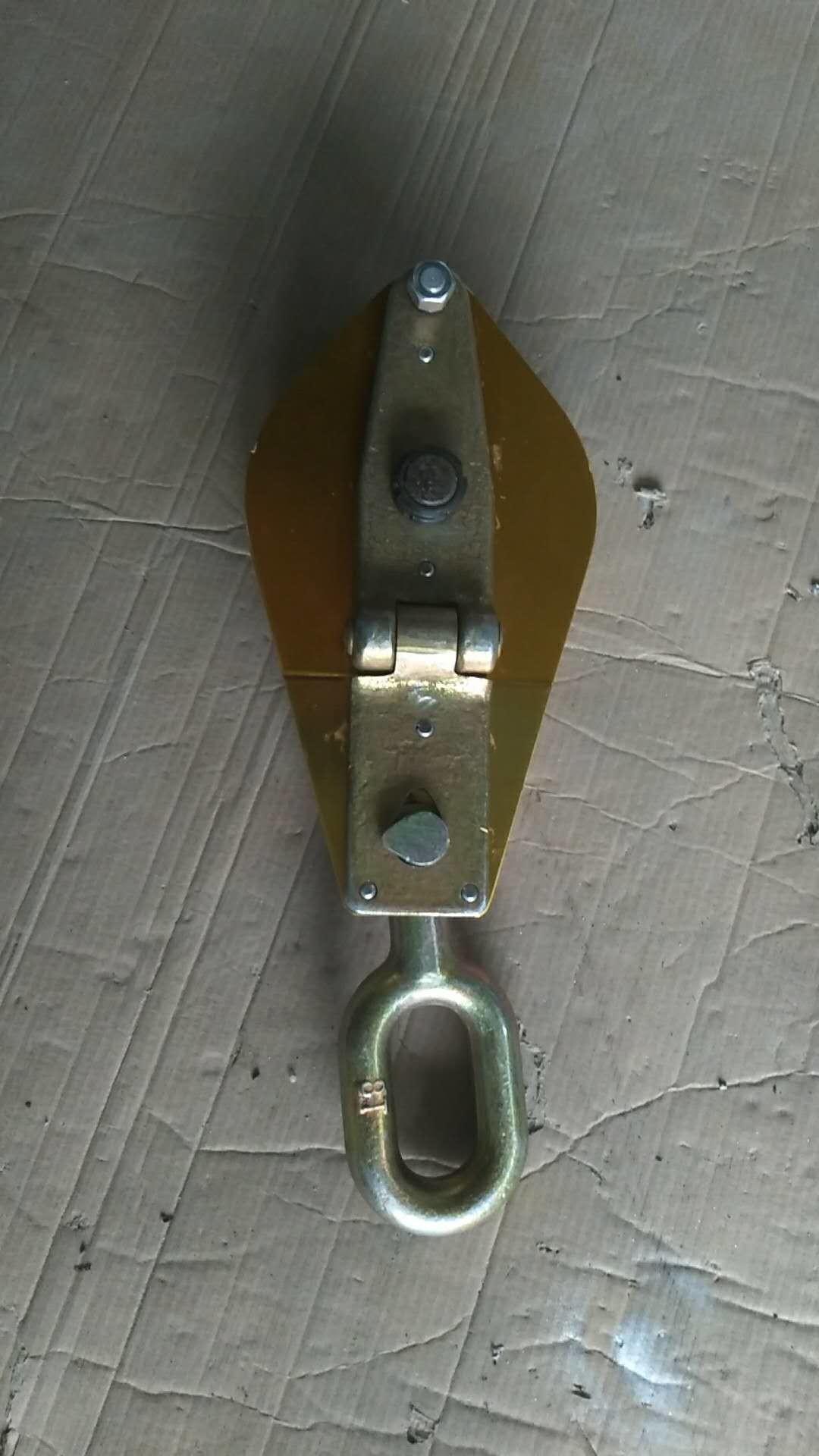

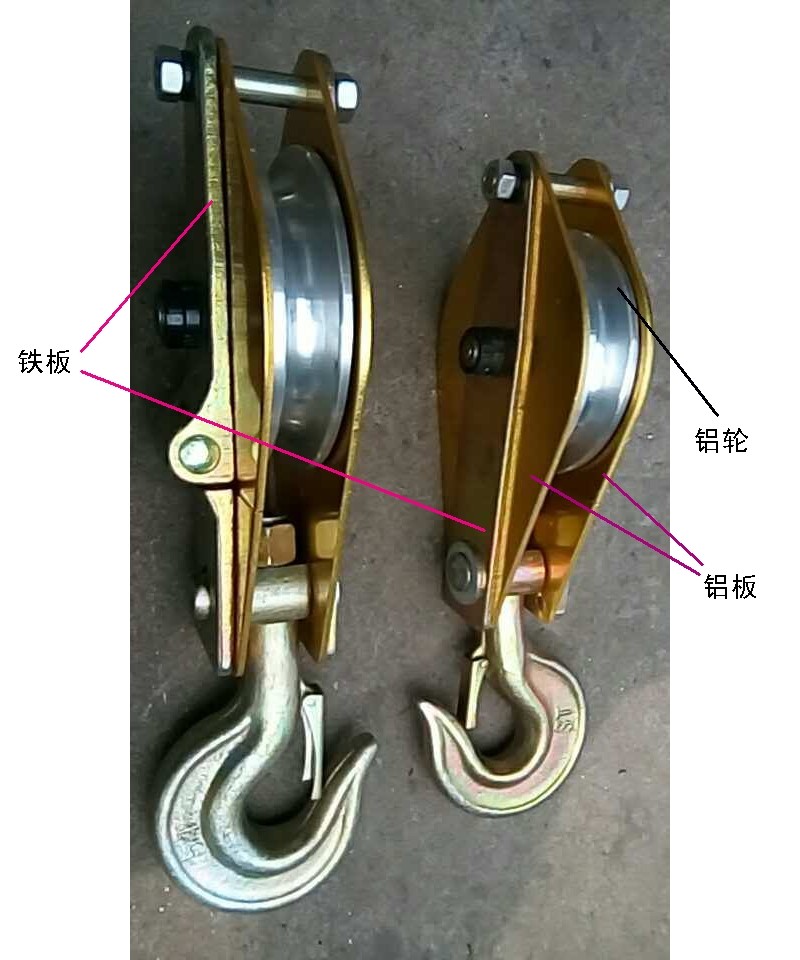

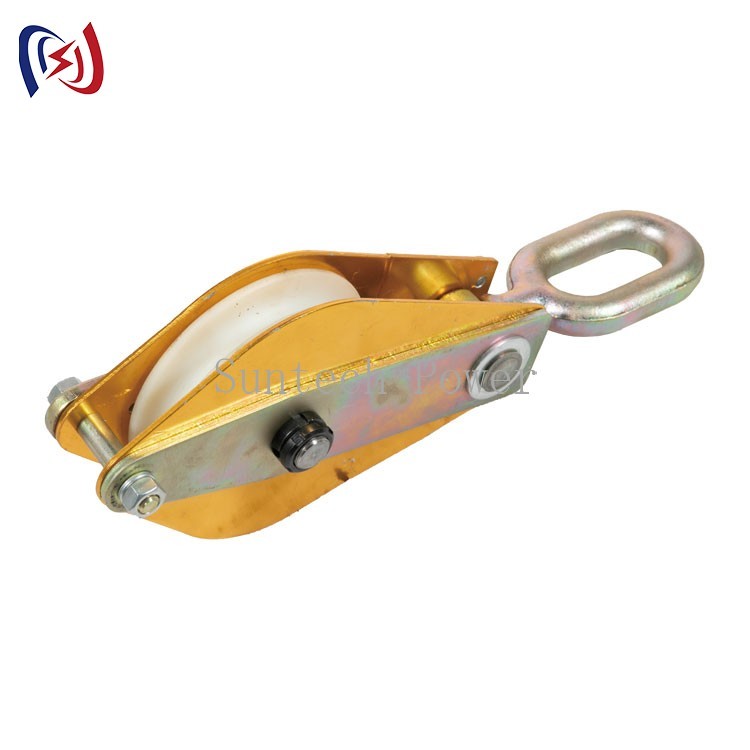

Aluminum Sheave Hoist Tackle 100KN Conductor Stringing Tools

Product Description

Aluminum Sheave Lifting Steel Hoisting Block Tackle cable pulling pulley

Apply to assemble and erect the tower,line construction hoist devices and other hoist operation.

Hanger includes hook type,plate type and ring type.This is need indicated when customer place order.

Characteristics

1. Material: steel

2. The type of single wheel is open hook type ,loop type.

3. The type of double wheel or third wheel is closed loop type.

4. It is made of high quality steel.

5. Light weight

Item number	Model	Number of sheaves	Rated load (kN)	Roller Diaxwidth (MM)	MAX. Rope Diamete (mm)	Weight (kg)
11301	QHL1x1	1	10	Φ100×31	Φ8	2
11302	QHL1x2	2		Φ80×27	Φ6	2
11303	QHL1x3	3		Φ80×27	Φ6	2
11311	QHL2x1	1	20	Φ120×35	Φ10	3
11312	QHL2x2	2		Φ100×31	Φ8	3
11313	QHL2x3	3		Φ100×31	Φ8	4
11321	QHL3x1	1	30	Φ150×39	Φ11	4
11322	QHL3x2	2		Φ120×35	Φ10	4
11323	QHL3x3	3		Φ100×31	Φ8	5
11331	QHL5x1	1	50	Φ166×40	Φ13	6
11332	QHL5x2	2		Φ150×39	Φ11	6
11333	QHL5x3	3		Φ120×35	Φ10	7
11341	QHL8x1	1	80	Φ205×49	Φ18	9
11342	QHL8x2	2		Φ166×40	Φ13	9
11343	QHL8x3	3		Φ150×39	Φ11	10
11351	QHL10x1	1	100	Φ246×60	Φ20	12
11352	QHL10x2	2		Φ166×40	Φ13	12
11353	QHL10x3	3		Φ150×39	Φ11	13

Aluminum Sheave Hoist Tackle 100KN Conductor Stringing Tools 0

Aluminum Sheave Hoist Tackle 100KN Conductor Stringing Tools 1
