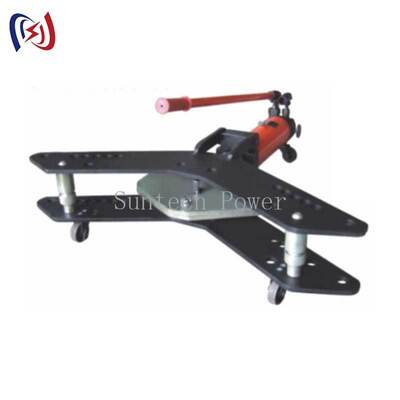

59Mpa Hydraulic Busbar Bender for 40-120mm Width and 4-12mm Plate Thickness Busbar Bending Machine

The BCB-100A is a hydraulic busbar bender used to form accurate bends in copper and aluminium busbar during substation and switchgear assembly. It develops a 59Mpa hydraulic output with a 320mm stroke, and bends busbar from 40mm to 120mm wide and 4mm to 12mm thick through angles between 90 and 180 degrees. The bending angle is set directly on the tool, allowing repeatable, uniform bends without pre-marking each piece.

• 59Mpa Hydraulic Output: forms full-width busbar bends with consistent force across the section.
• Direct Angle Setting: the bending angle is set on the tool and repeats evenly for every piece.
• Wide Capacity: bends copper and aluminium busbar from 40mm to 120mm wide and up to 12mm thick.
• Forged Bending Arms: reinforced frame and hydraulic cylinder hold alignment under repeated use.
• Safety Relief System: automatic pressure relief and non-slip handles protect the operator and the tool.

• Substation busbar installation and forming
• Power distribution panel fabrication
• Switchgear and electrical room busbar modification
• Workshop busbar pre-fabrication

• Produced under an ISO 9001 certified quality management system
• CCC marked for the domestic market
• Factory function and pressure testing before packing

• OEM and custom die configurations available
• Technical guidance on tool selection and busbar forming
• Spare parts and after-sales support

• Minimum order quantity: 1 piece
• Price: negotiable depending on configuration and quantity
• Packaging: plywood case for export

To confirm a specification, request a quotation or discuss a custom configuration, contact our engineering sales team with your busbar width, thickness and required bend angle.
