Name: Power Line Electrical Porcelain Pin Insulator High Voltage 24KV
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: Porcelain Pin Insulator
Price: 285,715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Porcelain

Model Number: SHF-20

Rated Voltage:: 24KV

Application: High Voltage

Tensile Strength:: 13KN

Standard: DIN

Highlight:

Electrical Porcelain Pin Insulator

Pin Type Power Line Insulator

High Voltage Electrical Porcelain Insulator

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO

Model Number: Porcelain Pin Insulator

Payment & Shipping Terms

Packaging Details: Pallets and Cartons

Delivery Time: 30 days after deposit

Payment Terms: L/C, T/T, Western Union

Supply Ability: 90,000,000pcs per year

Gallery

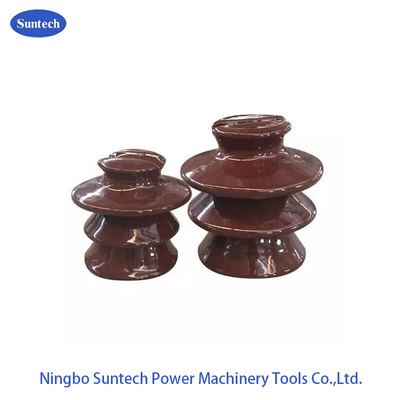

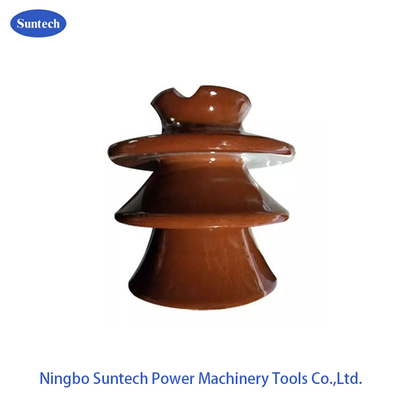

Power Line Electrical Porcelain Pin Insulator High Voltage 24KV

Product Description

Transmission Power Line Electrical Porcelain Pin Insulator

Our post insulators from the latest high performance ceramics have been in use for many decades in switchgear and capacitor bank platforms. We have experience with the manufacture of post insulators. Research and further development resulted in the optimization of our post insulators for distribution plants and switchgear systems.

In accordance with the standards IEC, ANSI, CSA and other certifications we manufacture single-component series up to a length of 90 inches and voltage levels up to 1100 kV. Our post insulators are mainly exposed to pressure, bending and torsional forces during operation and have been specifically designed for this purpose. We are also happy to offer our customers a customized full-service solution tailored ideally to their requirements.

ANSI Class			SHF-10	SHF-15	SHF-20	SHF-25
Creepage distance,mm			240	270	400	550
Main dimension,mm	D		135	150	175	225
	H		130	150	185	215
	d		31	35	35	35
	h		53	65	65	53
	R1		10	10	10	12.5
	R2		12.5	12.5	12.5	12.5
Cantilever Strength,kN			10	12.5	12.5	12.5
Min Flashover Voltage	Power frequency	Dry,kv	70	90	90	90
	Power frequency	Wet,kv	42	65	65	70
	50% Critical impulse		100	125	135	135
Power Frequency Puncture Voltage,kv			110	140	180	180

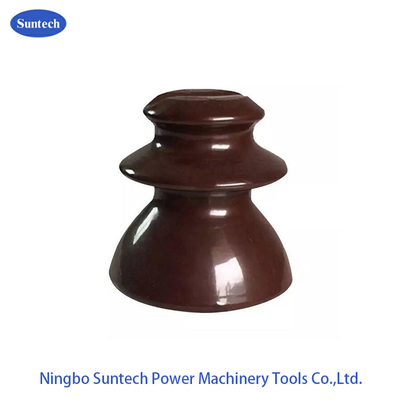

Power Line Electrical Porcelain Pin Insulator High Voltage 24KV 1

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
