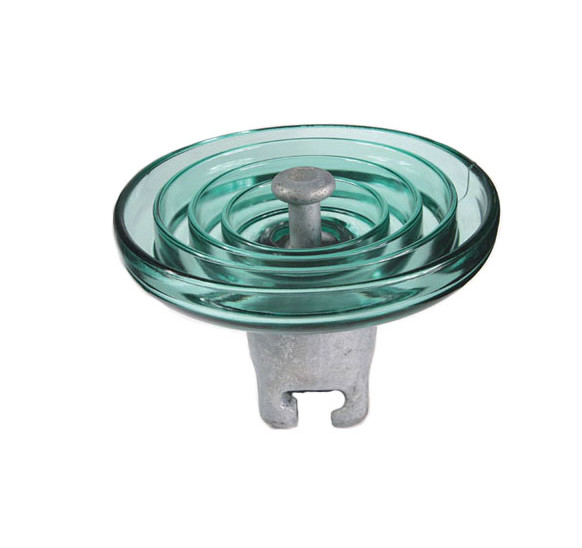

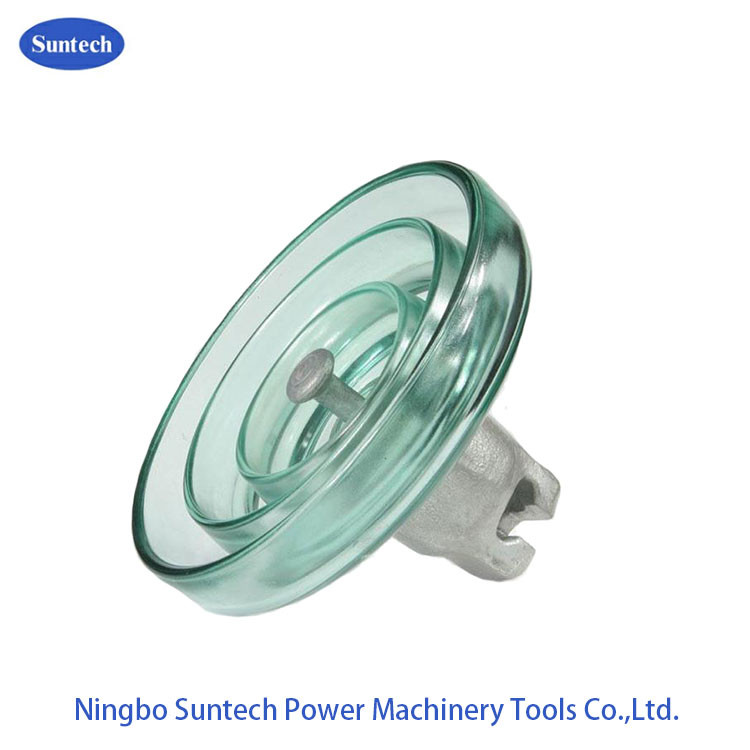

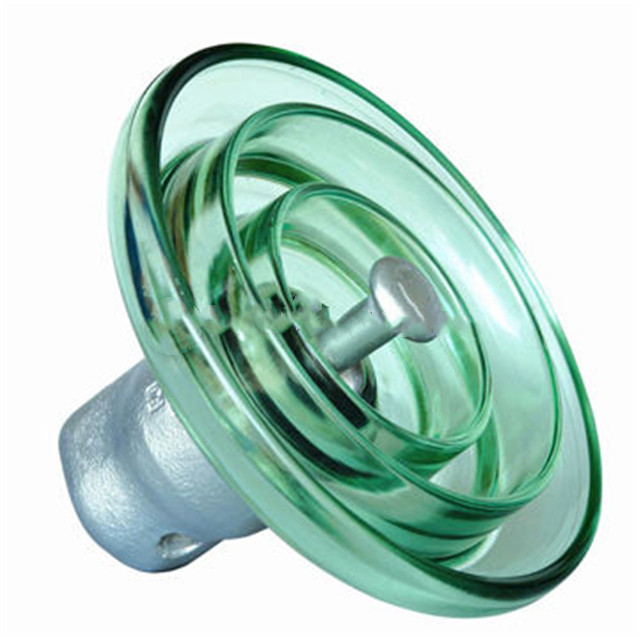

Anti Fouling 240kN Toughened Glass Electrical Insulators

Anti Fouling 240kN Toughened Glass Electrical Insulators

  • Anti Fouling 240kN Toughened Glass Electrical Insulators
  • Anti Fouling 240kN Toughened Glass Electrical Insulators
Anti Fouling 240kN Toughened Glass Electrical Insulators
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: U160BS
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Get the newest price
Packaging Details: Exported Wooden Case or Containers
Delivery Time: 25-30days after deposit
Payment Terms: L/C, T/T
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Mechanical Damage Load:: >240KN Battering Load:: >1017KN
Electromechanical Load Test Value:: 180KN Weight: 6.8kg
Nominal Height:: 170mm Nominal Diameter:: 240mm
Minimum Nominal Creepage Distance:: 390mm Type: Standard Type Toughened Glass Insulator
High Light:

240kN Glass Electrical Insulators


Toughened Glass Electrical Insulators


240kN Glass Power Line Insulators

Transmission Line Accessories High Voltage Anti-fouling 240kn Anti-pollution Suspension Glass Insulators


Product advantages

High line operation efficiency, good pollution flashover resistance, good structural stability, good aging resistance, excellent electrical corrosion resistance, excellent mechanical performance, light weight, etc.


Product parameters

Model ST-70 ST1-70 ST-100 ST-120 ST3-160 ST3-210 ST-240 ST-300

Mechanical damage load≥


70 70 100 120 160 210 240 300

Battering load≥


565 565 678 678 1017 1017 1017 1017

Electromechanical load test value/h


52.5 52.5 75 90 120 157.5 180 225

Nominal Height H


127 146 146 146 155 170 170 195

Nominal diameter of insulator D


255 255 255 255 280 280 280 320

Minimum nominal creepage distance


320 320 320 320 380 390 390 485


Product characteristics

  • Insulator is one of the key components in high voltage transmission line, its performance directly affects the whole the safety operation of the transmission line. Glass insulators are widely used because of their characteristics of zero self-breaking and easy maintenance.
  • Using glass insulator, it can cancel the operation process of insulator of charged periodic preventive test. This is due to every damage to tempered glass causes damage to the insulator, which operators can easily find when patrolling the wire.
  • It is made of toughened glass. Due to the high mechanical strength of the surface layer of glass insulator, cracks are not easy to occur on the surface. The electrical strength of glass remains constant throughout its operation and the aging process is much slower than that of porcelain.
  • Insulator is a special insulation control, which can play an important role in overhead transmission lines.

Anti Fouling 240kN Toughened Glass Electrical Insulators 0
