Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Disc Suspension Insulators |
| Minimum Order Quantity: | 300PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported cartons or cases |
| Delivery Time: | 25 days after deposit |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 9000pcs per week |
| Name: | Disc Suspension Type Insulators | Item: | Disc-52-3 |
|---|---|---|---|
| Tensile Strength:: | 70KN | Material: | Porcelain |
| Rated Voltage: | 33KV | Color: | White /Brown |
| Application: | High Voltage | Usage: | Transmission Overhead Line |
| High Light: | 33KV Porcelain Suspension Insulator,70KN Porcelain Suspension Insulator,33KV Disc Type Insulator |
||

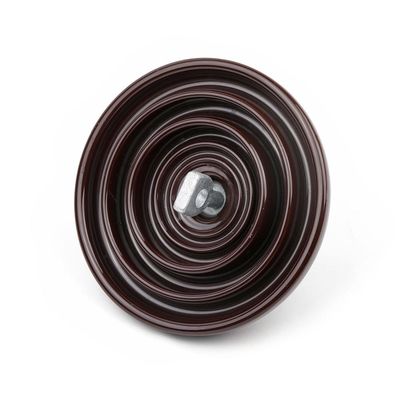

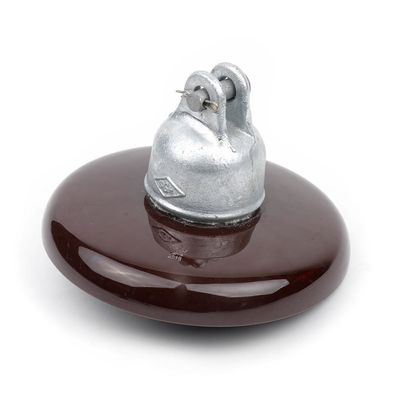

High Voltage Electrical Porcelain Disc Suspension Type Insulators
High-voltage lines disc hanging porcelain insulator (ordinary) for the insulation of high voltage overhead transmission and distribution lines and fixed for conductor.
General assemble insulator string on a line for different voltage grade type insulator used for general areas, such as increasing insulator piece number can also improve the pollution flashover performance.
Hanging by the porcelain, porcelain insulator iron cap and steel legs with no less than 525 Portland cement, quartz sand cement gel pack. The contact surface between the iron cap and the steel foot and the adhesive is lightly coated with a buffer layer, and the top of the steel foot is provided with elastic liner. Porcelain surface generally painted white glaze, brown glaze, according to the need to draw other glaze. The surface of iron cap and steel foot is all hot-dip galvanized. The push-pull type elastic locking pin of ball-type connection has two types: w-type and r-type, both of which are made of tin bronze, brass and austenitic stainless steel. Grooved cylindrical and hunchback cotter pins, the former having a hot zinc surface and the latter made of brass. The elastic locking pin, cylinder pin and other parts are supplied with complete sets of products.
Insulator according to the connection points ball type and trough type two kinds.
The same strength grade of regular and fouling resistance type insulator, using the same size ball and socket connections, can guarantee the swap.
Packaging & Delivery
| Quantity(Pieces) | 1 - 300 | 301 - 1000 | >1000 |
| Est. Time(days) | 25 | 40 | To be negotiated |
FAQ :
Q 1. What's the payment term ?
A. We accept TT,30% deposit and 70% balance against copy of B/L or L/C at sight.
Q 2. How long is producing time ?
A. Normally it will take about 35-40 days for production.
Q 3. What is the standard of package ?
A. For small capacity, we use carton, but for big capacity, we will use strong wooden
case for protection or double inner packs in a master carton .
Q 4. Can you offer Form A or C/O ?
A. Yes. We can prepare relative documents to forgin affairs office or other
offices to apply for this certificate.
Q 5. Will you accept using customer's logo ?
A. Only accaept OEM when you order a big quantity.
Q 6.What is your monthly output?
A. It depends on the product model, normally our monthly output is 850 tons.
Q 7. How do you make sure your good quality ?
A. We use the best raw material , and every single product will go through a series of strict test.
Q 8. What kind of certificate you have ?
A. Our company got ISO 9001, ISO 14001, OHSAS 18001 certificate, and each series of product got a test report.
Q 9. What else can you do for me?
A. Our customer service staff will be always online and reply your inquiry within 24 hours.
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
