11KV Porcelain Stay Insulator For High Voltage Power Line

Product Details:

Place of Origin:	Ningbo,China
Brand Name:	Suntech
Certification:	ISO
Model Number:	Porcelain Stay Insulator

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Get the newest price
Packaging Details:	Pallets and Cartons
Delivery Time:	30 days after deposit
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100,000,000pcs per year

Contact Now

Detailed Product Description

Material:	Porcelain	Model Number:	GY-3
Rated Voltage::	11KV	Application:	High Voltage
Tensile Strength::	222KN	Color:	Brown Or White
High Light:	11KV Electrical Porcelain Insulators , High Voltage Power Line Porcelain Insulator , Power Line Porcelain Stay Insulator

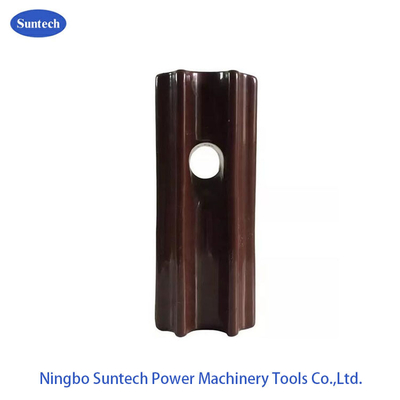

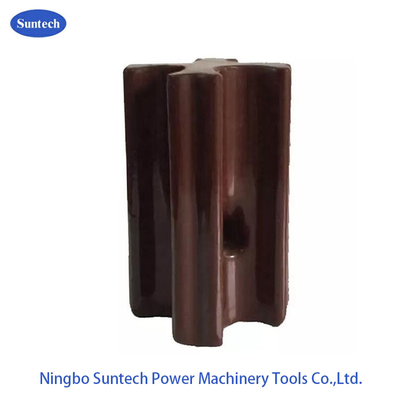

11KV Porcelain Stay Insulator For High Voltage Power Line

Suntech Insulators is a technology leader and manufacturer of state-of-the-art electrical porcelain insulators for overhead transmission lines, substations and electrostatic precipitator applications. Traditional porcelain insulators originated in the late 19th century. These were further developed in-house by Suntech via its isostatic production technology, allowing production of high-quality products with efficient designs, tightest tolerances and shorter lead times for applications up to 1,200kV AC and 1,100kV DC.

ANSI Class		54-1	54-2	54-3	54-4	GY-2	GY-3	GY-4
Main dimension,mm	D	64	73	86	89	73	115	115
	H	89	108	140	171	146	216	280
	d	44	54	60	60	44	67	67
	d1	16	22	25	25	18	38	38
	h	44	57	79	67	73	89	89
	h1	64	76	103	114	99	153	165
Creepage Distance,mm		41	48	57	76	76	123	124
Mechanical Failing Load,kN		44	53	89	89	71	222	222
Low Frequency Flashover Voltage,kv	Dry,Kv	25	30	35	40	-	20	20
Low Frequency Flashover Voltage,kv	Wet,kV	12	15	18	23	15	40	40
Approx.weight,kg		0.5	0.65	1.2	2.2	-	-	-
