N95 - 3 Pin Type Transmission Line Insulator Electrical Porcelain Products

N95 - 3 Pin Type Transmission Line Insulator Electrical Porcelain Products

  • N95 - 3 Pin Type Transmission Line Insulator Electrical Porcelain Products
  • N95 - 3 Pin Type Transmission Line Insulator Electrical Porcelain Products
N95 - 3 Pin Type Transmission Line Insulator Electrical Porcelain Products
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: Products Pin Insulators
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Get the newest price
Packaging Details: Pallets and Cartons
Delivery Time: 25 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000,000pcs per year
Contact Now
Detailed Product Description
Material: Porcelain Model Number: N95-3
Feature: Stable Electrical Performence Application: High Voltage
Tensile Strength:: 10KN Rated Voltage: 24KV
High Light:

Pin Electrical Porcelain Insulators

,

10KN Transmission Line Insulator

,

Electrical Porcelain Transmission Line Insulator

N95-3 Electrical Porcelain Products Pin Insulators



The insulators have excellent electrical & machincal performance .

we offer up to 4 years quality guarantee as per tender requirement or customer's requirement .



The porcelain glaze are hard and shinning , good self-cleaning advantage and easy for maintenance .

We can design insulators based on customer’s requirement or special technical specifications.



Porcelain insulators are perfect for areas experiencing extreme cold / heat environmental changes. They are suitable for environments with dust, salt and high humidity, or a combination of all of these. The highly glazed surface provides the product with better self-cleaning properties in heavily polluted areas.



The product shows stable results in loads and short circuits in this type of environment; they are highly resistant to corrosion in acidic and caustic environments.

Type
E-80
E-95
N-80
N-95
N95-2
N95-3
N95-4
Fig No.
1 1 2 2 3 4 4
Ceepage distance,mm
120 140 120 140 160 230 318








Main dimension,mm
D
80 95 80 95 95 102 130
H
85 97 87 97 100 120 152
D1
42 50 42 50 50 60 80
d
16 16 19 22 22 80 100
d1
/ / 21 24 24 25.4 25.4
a
38 43 38 41 41 / /
b
38 32 30 35 35 51 51
R
7.5 13 705 13 10 14 14
Breaking load,kN
12.5 12.5 12.5 12.5 12.5 10 13.6
One minute withstand
voltage wet,Kv
10 10 10 10 10 34 50
Power Frequency Puncture Voltage,kv
/ / / / / 95 115

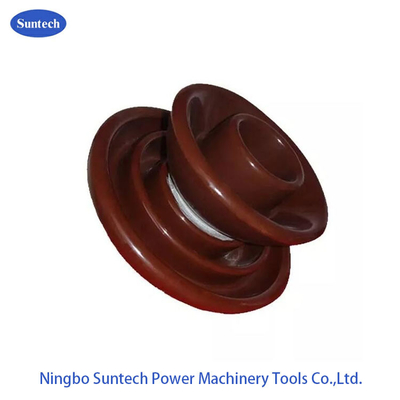

N95 - 3 Pin Type Transmission Line Insulator Electrical Porcelain Products 0

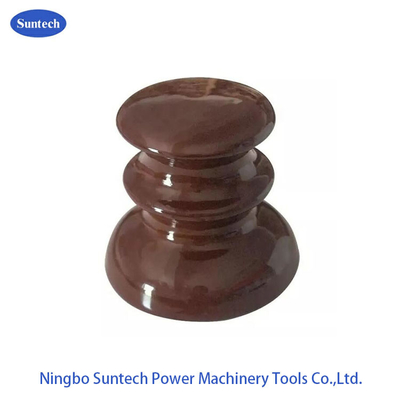

N95 - 3 Pin Type Transmission Line Insulator Electrical Porcelain Products 1
