Name: Transmission Line Screw Electrical Ceramic Insulators Low Voltage
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: Ceramic Insulators
Price: 285,715.00 USD
Availability: InStock

Transmission Line Screw Electrical Ceramic Insulators Low Voltage

1 PCS

MOQ

Get the newest price

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Porcelain

Model: 802-3A

Rated Voltage: 0.4KV

Application: Excellent

Usage: Low Voltage

Color: Brown Or White

Highlight:

Screw Electrical Ceramic Insulators

Porcelain Electrical Ceramic Insulators

Low Voltage Ceramic Power Line Insulators

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO

Model Number: Ceramic Insulators

Payment & Shipping Terms

Packaging Details: Pallets and Cartons

Delivery Time: 25 days after deposit

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1,000,000pcs per year

Gallery

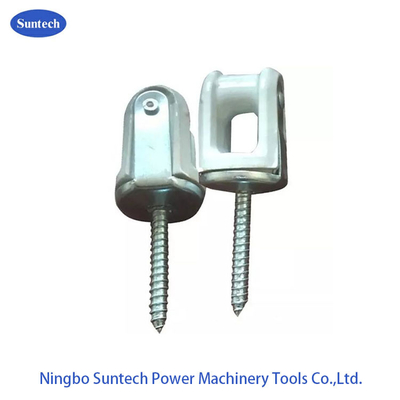

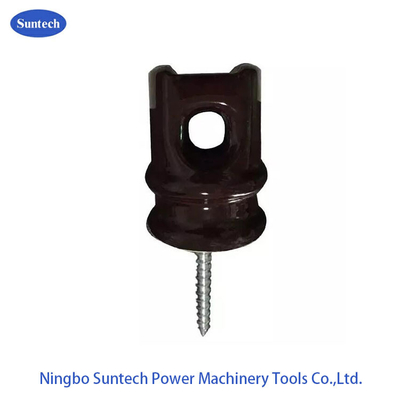

Transmission Line Screw Electrical Ceramic Insulators Low Voltage

Product Description

Transmission Line Screw Electrical Ceramic Insulators

Porcelain insulators typically contain large concentrations of some other mineral like alumina or clay. The combination of porcelain and other minerals allows electricity to pass without reacting with nearby electrical conductors.

Since porcelain does not conduct electricity, especially when combined with other non-conductive materials, it is the ideal material for insulators.

The use of ceramic porcelain as electrical insulator is unrivalled by any other materials currently. Porcelain insulators are characterized with excellent properties such as high mechanical strength, high electrical stability and corrosion resistance even in harsh environments

The important stages in the manufacture of porcelain insulators are

1.Wet grinding of raw materials to slurry form.

2.Filter pressing to de-water the slurry.

3.Vacuum extrusion to provide plastic clay.

4.Shaping by pressing or turning.

5.Drying to remove absorbed water

Transmission Line Screw Electrical Ceramic Insulators Low Voltage 0

Series	801		802						803
Item	801	801-1	802	802-1	802-2	802-3	802-4	802-5	803
Diameter	36mm	35mm	44.8mm	50.5mm	50mm	50.8mm	53mm	53mm	49mm
