Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Suspension Disc Insulator |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Pallets and Cartons |
| Delivery Time: | 20-25 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1,000,000pcs per year |
| Material: | Porcelain | Model Number: | XHP-120 |
|---|---|---|---|
| Rated Voltage: | 110KV | Application: | High Voltage |
| Tensile Strength:: | 120KN | Creepage Distance:: | 320mm |
| High Light: | 120KN Porcelain Suspension Insulator,110kv Disc Insulator,Disc Porcelain Suspension Insulator |
||

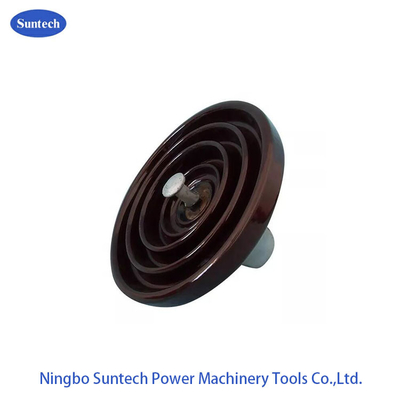

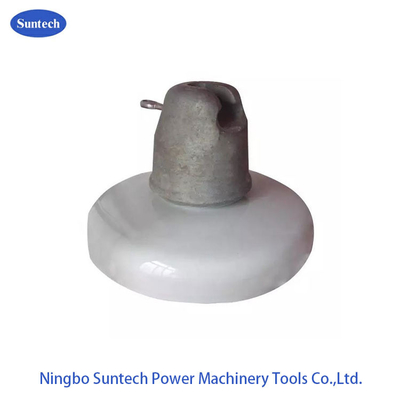

120KN Porcelain Suspension Insulator 110kv Disc Insulator
Porcelain is the most commonly used material for overhead insulators in the present day. The porcelain is aluminum silicate. The aluminum silicate is mixed with plastic kaolin, feldspar, and quartz to obtain final hard and glazed porcelain insulator material.
The surface of the insulator should be glazed enough so that water should not be traced on it. Porcelain also should be free from porosity since porosity is the main cause of deterioration of its dielectric property. It must also be free from any impurity and air bubble inside the material which may affect the insulator properties.
| XHP-70 | XHP-80 | XHP-100 | XHP-120 | XHP-160 | ||
| 254 | 254 | 254 | 180 | |||
| 146 | 146 | 146 | 155 | |||
| 432 | 432 | 432 | 432 | |||
| 70 | 80 | 120 | 160 | |||
| 16B | 16B | 16B | 20 | |||
| 28 | 32 | 48 | 50 | |||
| 90 | 90 | 90 | 90 | |||
| 50 | 50 | 50 | 50 | |||
| 80 | 80 | 80 | 80 | |||
| 45 | 45 | 45 | 45 | |||
| 125 | 125 | 125 | 125 | |||
| Impulse Withstand Voltage,Kv | 115 | 115 | 115 | 115 | ||
| Power Frequency Puncture Voltage,Kv | 120 | 120 | 120 | 120 | ||
| 6.5 | 6.5 | 7.8 | 9 | |||
