Indoor Three Phase HV 12KV AC Load Break Switch

1 Set
MOQ
Negotiation
Price
Indoor Three Phase HV 12KV AC Load Break Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: AC Hv Load Break Switch
Altitude: Under 1000M
Ambient Temperature: -25℃-+40℃
Application: High Voltage
Highlight:

12KV AC Load Break Switch

,

Three Phase HV Load Break Switch

,

HV 12KV Indoor Load Break Switch

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: FN7-12
Payment & Shipping Terms
Packaging Details: Exported Wooden Cases
Delivery Time: 25-30 days after Payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000pcs per month
Product Description

Indoor Three Phase AC High Voltage 12KV Load Isolating Break Switch


FN7- 12DR Model Indoor AC HV Load Switch is suitable in 50Hz, rated voltage of 12Kv the three- -phase AC power system as the breaking load short-circuit current of the power and used the Closing, until the combination of electrical short-circuit current can be breaking any current can be used as protection purposes.



Rated voltage(KV) 12
Insulation level 1min frequency voltage(KV) Phase to phase,to earth 42 Isolation fracture48
Lightning impulse withstand voltage(KV) Phase to phase,to earth 75 Isolation fracture85
Rated current(A) 400 630
4S Rated thermal current(KA) 12.5 20
Rated active load breaking current(KA Peak) 31.5 50
Rated short circuit making current(KA peak) 31.5 50

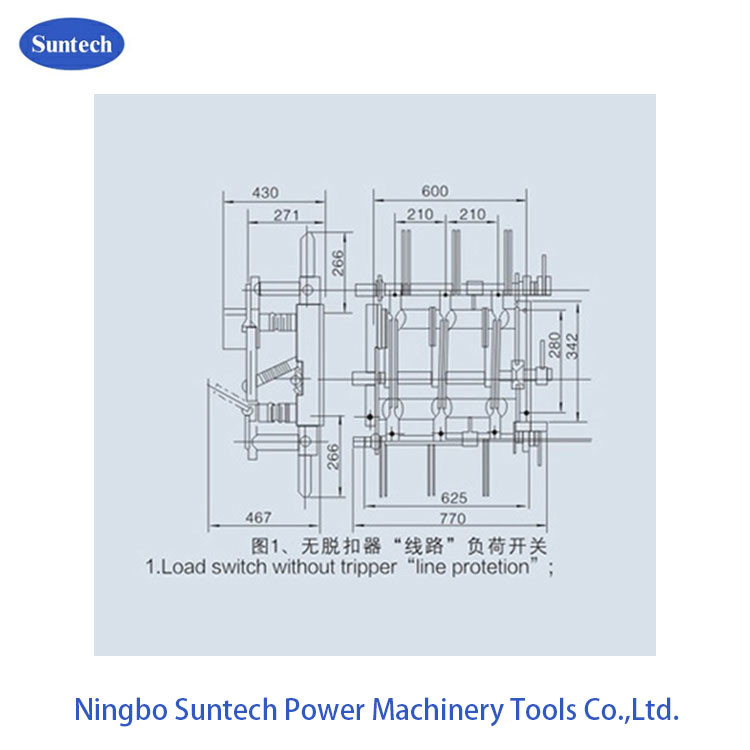

Indoor Three Phase HV 12KV AC Load Break Switch 0

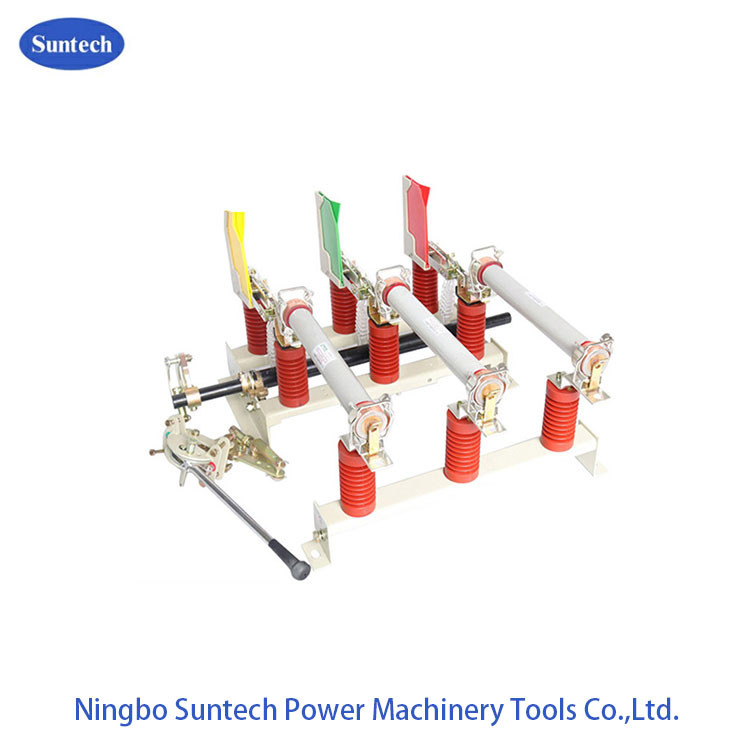

Indoor Three Phase HV 12KV AC Load Break Switch 1



Ambient condition

1. The altitude: under 1000M.

2. The ambient temperature: -25℃-+40℃.

3. The relative humidity of air: monthly≤90%, daily≤95%.

4. Ampitude: Earthquake degree 8.

5. Aplication occasions should free from fire, inflammables, explosives,corrosives and severe vibration.

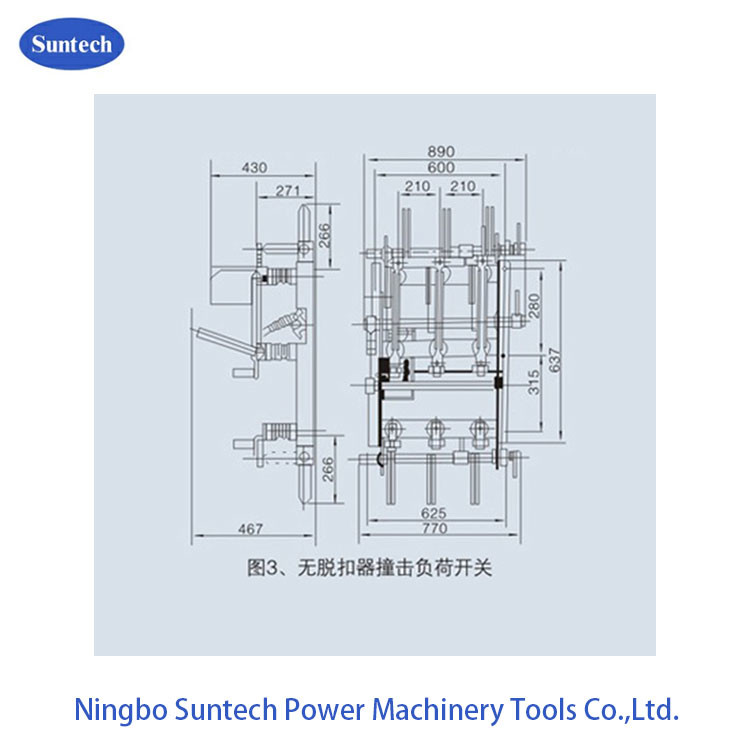

Indoor Three Phase HV 12KV AC Load Break Switch 2

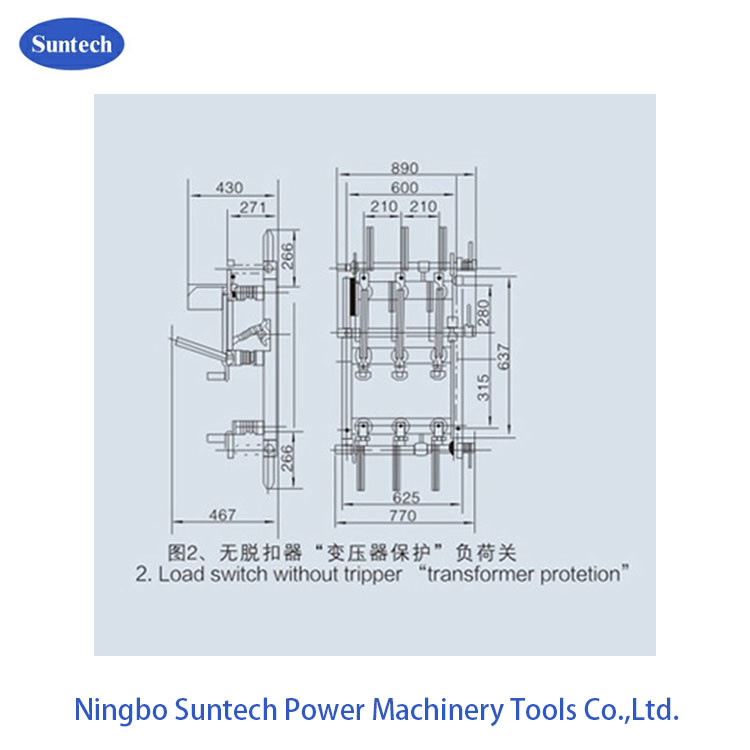

Indoor Three Phase HV 12KV AC Load Break Switch 3
