| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | RHB |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |

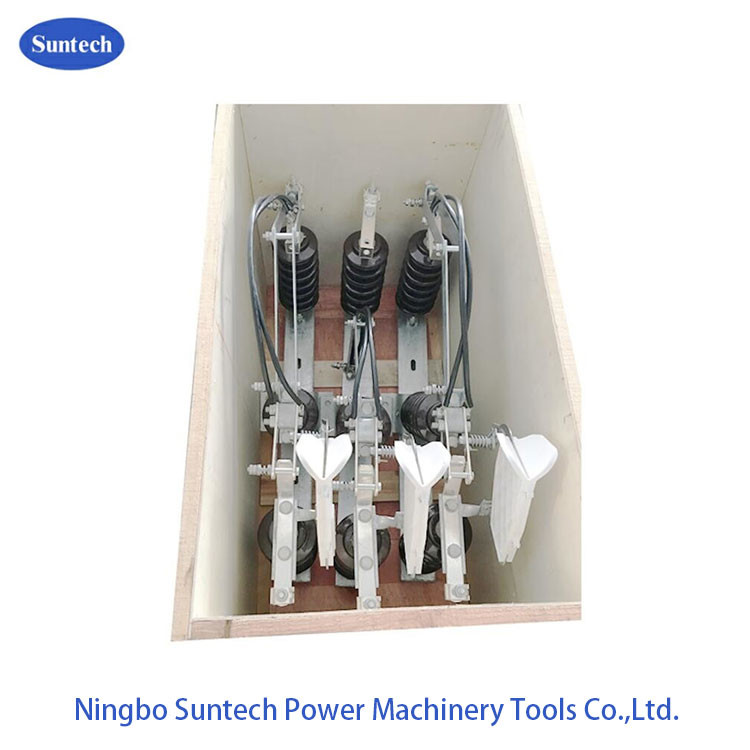

| Packaging Details: | Exporting Cartons Or Cases |
| Delivery Time: | 30-35 days after payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 6000pcs per month |
| Max Current: | 1000A | Max Voltage:: | 38KV |
|---|---|---|---|
| Application: | High Voltage | Standard: | IEC-60265, IEC-129 |
| High Light: | 1250A Isolator Disconnect Switch,Power Line Isolator Disconnect Switch,38KV Power Line Disconnect Switch |
||

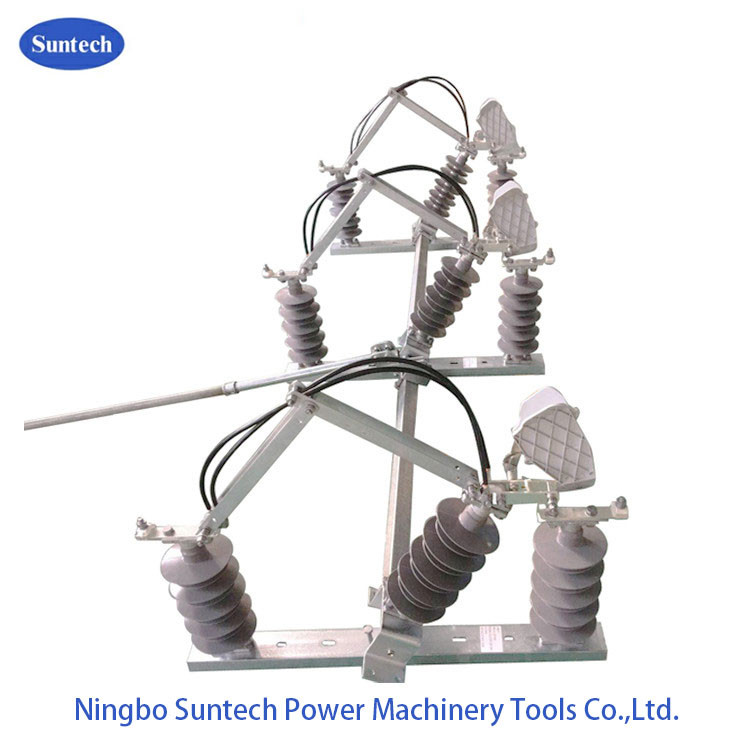

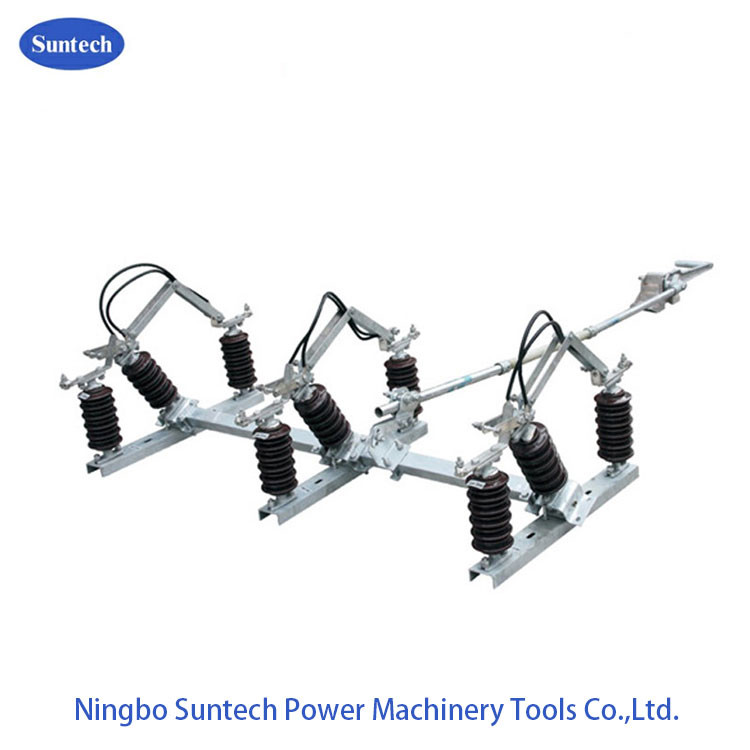

Electrical Power Line Outdoor Max 38KV 1250A Isolator Disconnect Switch
Outdoor AC Gang isolator switch 11KV/400A-33KV/1000A used in 3 phase AC 50/60Hz power circuit, it is used as switching on and switch off at the voltage without load. It apply to IEC 60964: 1996, IEC62271-102:2002.
Technical Data:
| Type | Unit | RHB-11 | RHB-24 | RHB-33 | |||
| Rated Voltage | KV | 11 | 24 | 33 | |||
| Rated Current | A | 400 | 600 | 600 | 800 | 800 | 1000 |
| 4s Heat Steady Current | KA | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| Shock Steady Current | KA | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Impulse Withstand Voltage | To Earth | 75 | 75 | 125 | 125 | 170 | 170 |
| Across the isolating distance | 95 | 95 | 145 | 145 | 195 | 195 | |
| Power frequency withstand voltage | To Earth | 38 | 38 | 65 | 65 | 70 | 70 |
| Across the isolating distance | 42 | 42 | 79 | 79 | 80 | 80 | |
