24KV 630A Disconnecting Switch Isolator With Fuse

24KV 630A Disconnecting Switch Isolator With Fuse

  • 24KV 630A Disconnecting Switch Isolator With Fuse
  • 24KV 630A Disconnecting Switch Isolator With Fuse
24KV 630A Disconnecting Switch Isolator With Fuse
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: Isolate
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Get The Latest Price
Packaging Details: Exported Wooden Case
Delivery Time: 25 days after Payment
Payment Terms: L/C, T/T
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Max. Current: 630A Max. Voltage:: 24KV
Certification: IEC Standard: IEC/IEEE And DVE-recommendati
High Light:

24KV Switch Isolator

,

Disconnecting Switch Isolator With Fuse

,

630A Disconnecting Switch

Outdoor High Voltage Disconnecting Switch Isolator With Fuse



Ningbo Suntech Power Machinery Tools Co.,Ltd. Is one of the global processional electircal apparatus manufacturer in China,covering various electrical frelds and engaged in the widest range of electrical power components and parts including Hardware Fitting,Clamps,Connectors,Terminals Cable Accessories,Insulators,Surge Arresters,Cutouts,Isolates Switches,Transormer,Tools,BK,BKC series control transformer,and all kinds of the regulator and so on.



SUNTECH has been thrived on supplying the products according to the international standard such as 61952,IEC 61109,IEC 60099-4,IEC 60282-2,etc.With scientific administration,professional engineers,highly trained technicians and skilled workers,SUNTECH is capable to produce more than 2 million units of the main electics in best quality annually,almost all of its products have been made for overseas markets and well sold to USA,South Africa,Vietnam,Korea,South America,South Asia etc.Over 50 countries worldwide.Some of its products have already been granted IEC certificates and have won high reputation around world market.



In order to meet new challenge and satisfy increased customers’ demand on our products and quality,SUNTECH will consistenly keep on updating and developing more products for new and old clients. We are looking forward to your mutual cooperation and support as usual.



Type Unit JISF-24/400 JISF-24/630
Rated Voltage KV 36 36
Rated Current A 400 630
Frequency Hz 50/60 50/60
Impulse Voltage (BIL) KV 125 125
Power Frequency withstand Voltage KV 42 42
Creepage Distance MM 600 600
Weight KGS 11.5 12
Package Size CM 140*85*97 140*85*97



Standard

IEC/IEEE and DVE-recommendation standards especially comply with DIN VDE 0670 part

IEC-60265, IEC-129

Features

All steels are made of either in stainless steel or hot-dip galvanized steel.

1. Solid and stable base frame.
2. main contact with ice protection.
3. Polymer insulators or alternatively in porcelain.
4. Minimal sag for the line-connection between two fixed terminals.
5. Completely maintence antirust Aluminium alloy Arc chamber.
6. Switching-off procedure without external arc.
7. Short circuit making capacity under specific conditions possible
8. Fixing on the supporting structure either by clamping(free setting) or screwing (holes in the base frame)
9. Easy on-site installation and setting.

10. High reliabilty up to 1000 cycles (depending on the running current).

11. All contacts are either sliver or tin-plated.
12. Practically maintance-free.

Environmental Conditions

Ambient Temperature: -30℃ - +40

Altitude: 3000m

Frequency: 50Hz / 60Hz

Maximum Wind Speed: 35m/s

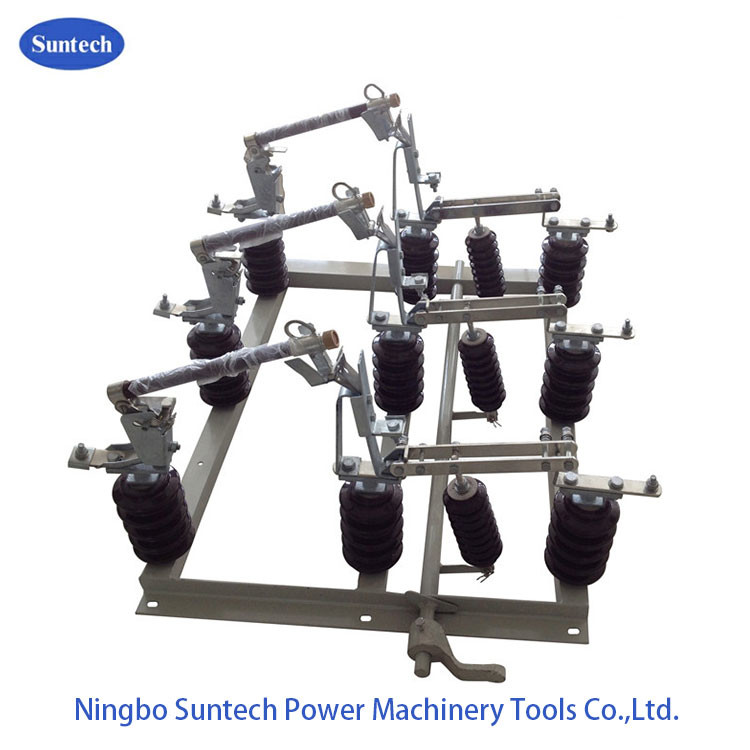

24KV 630A Disconnecting Switch Isolator With Fuse 0

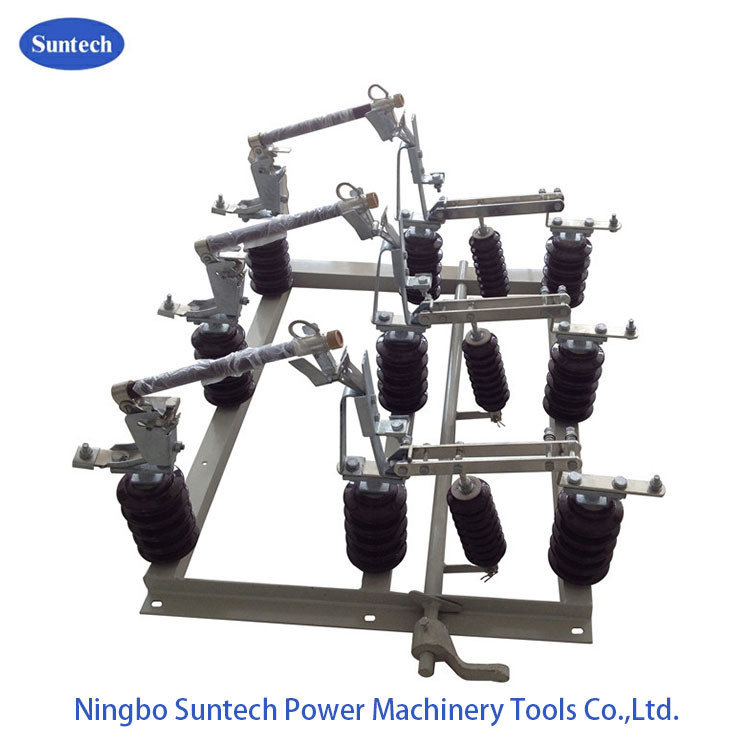

24KV 630A Disconnecting Switch Isolator With Fuse 1



FAQ



Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.

Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.

Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.

Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.

Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
