IEC 60265 IEC 129 Polymer Electric Isolator Switch

1pcs
MOQ
Get the newest price
Price
IEC 60265 IEC 129 Polymer Electric Isolator Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Current: 630A
Max. Voltage:: 36KV
Material: Polymer
Color: Grey
Standard: IEC 60265, IEC 129
Usage: High Voltage
Highlight:

IEC 60265 Electric Isolator Switch

,

IEC 129 Electric Isolator Switch

,

IEC 60265 Isolate Switch

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: LBIS type
Payment & Shipping Terms
Packaging Details: Exported Wooden Case
Delivery Time: 25-30 days after Payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000pcs per month
Product Description

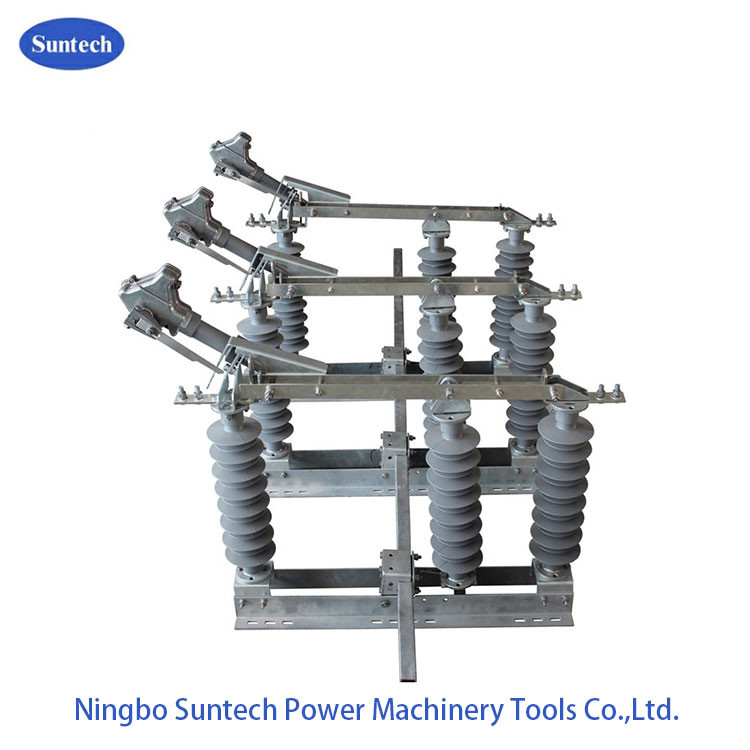

Outdoor Electric High Voltage On Load break Isolate Switch



LBIS Type outdoor on load break switch disconnector contained in this list are destined to switch stub lines and ring main lines or transformers (It can be equipped with MV HRC fuse links as short circuit protection fuction) or for switching under on load conditions. This disconnector complies with IEC/IEEE and DVE-recommendation standards especially comply with DIN VDE 0670 part 3 and IEC 60265, IEC 129.



Features

All steels are made of either in stainless steel or hot-dip galvanized steel.

1. Solid and stable base frame.
2. main contact with ice protection.
3. Polymer insulators or alternatively in porcelain.
4. Minimal sag for the line-connection between two fixed terminals.

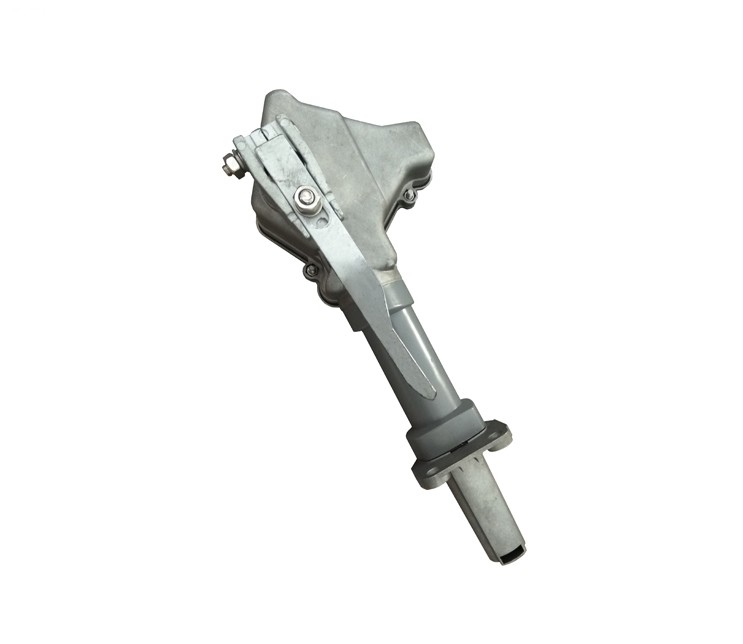

5. Completely maintence antirust Aluminium alloy Arc chamber.
6. Switching-off procedure without external arc.
7. Short circuit making capacity under specific conditions possible
8. Fixing on the supporting structure either by clamping(free setting) or screwing (holes in the base frame)
9. Easy on-site installation and setting.

10. High reliabilty up to 1000 cycles (depending on the running current).

11. All contacts are either sliver or tin-plated.
12. Practically maintance-free.

Environmental Conditions

Ambient Temperature: -40℃ - +50

Altitude: 2500m

Frequency: 50Hz / 60Hz

Maximum Wind Speed: 35m/s



Technical Datas

IEC 60265 IEC 129 Polymer Electric Isolator Switch 0

IEC 60265 IEC 129 Polymer Electric Isolator Switch 1IEC 60265 IEC 129 Polymer Electric Isolator Switch 2IEC 60265 IEC 129 Polymer Electric Isolator Switch 3

IEC 60265 IEC 129 Polymer Electric Isolator Switch 4
