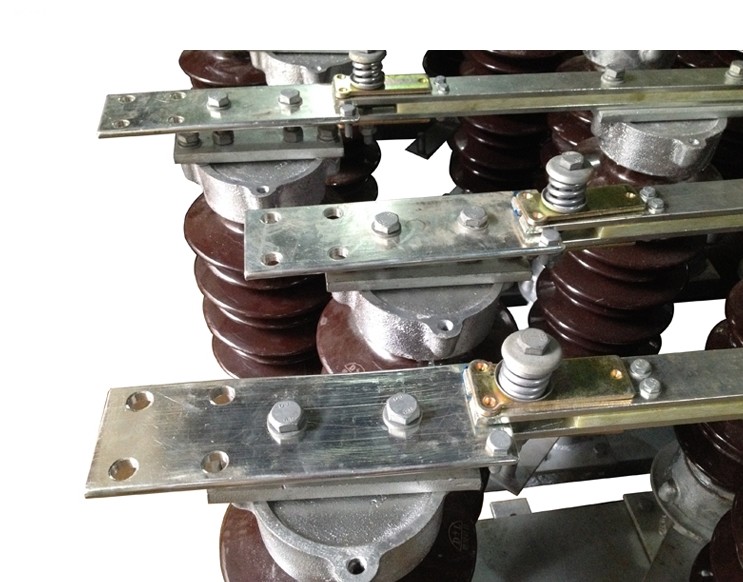

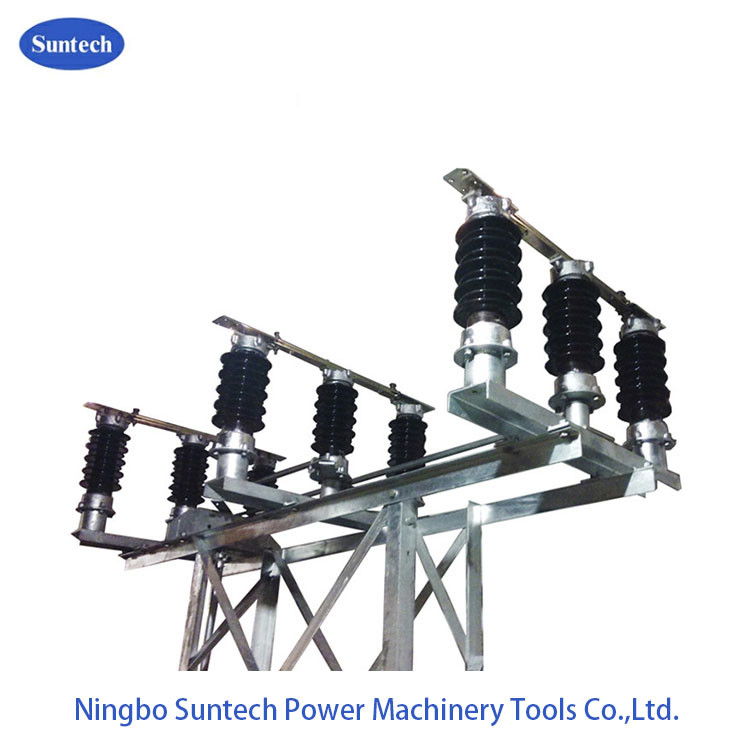

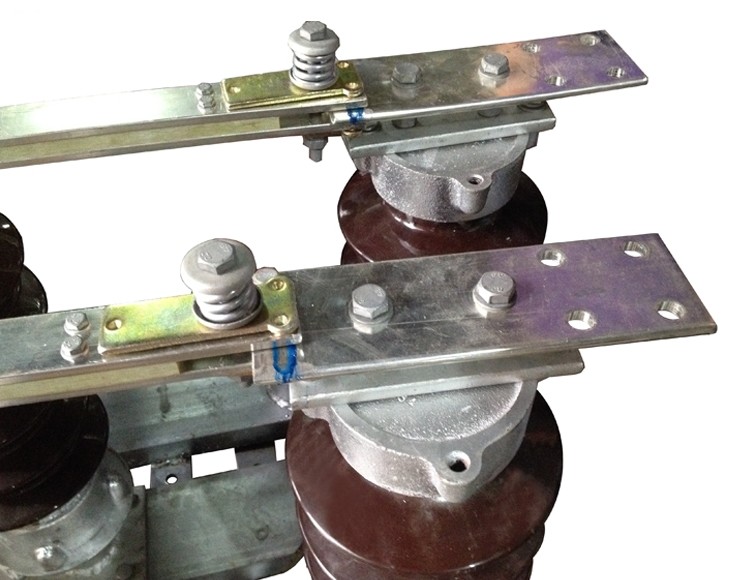

36KV 1250A Porcelain Rotating Center Insulator With Mounting Structure

1pcs
MOQ
Get the lastest price
Price
36KV 1250A Porcelain Rotating Center Insulator With Mounting Structure
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Current: 1250A
Max. Voltage:: 38KV
Material: Porcelain
Standard: IEC-60265, IEC-129
Highlight:

1250A Rotating Center Insulator

,

36KV Center Insulator

,

36KV Porcelain Insulator
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: Rotating Isolate
Payment & Shipping Terms
Packaging Details: Exported Box and Carton
Delivery Time: 25-30 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs per month
Product Description

High Quality 36KV 1250A Porcelain Rotating Center Isolator With Mounting Structure



Ningbo Suntech Power Machinery Tools Co.,Ltd. Is one of the global processional electircal apparatus manufacturer in China,covering various electrical frelds and engaged in the widest range of electrical power components and parts including Hardware Fitting,Clamps,Connectors,Terminals Cable Accessories,Insulators,Surge Arresters,Cutouts,Isolates Switches,Transormer,Tools,BK,BKC series control transformer,and all kinds of the regulator and so on.



Type Unit GW4-35/630 GW4-35/1250
Rated Voltage KV 35 35
Rated Current A 630 1250
Frequency Hz 50/60 50/60
Impulse Voltage (BIL) KV 150 150
Power Frequency withstand Voltage KV 50 50
Creepage Distance MM 1100 1100
Weight KGS 282 282
Package Size CM 128*93*95 128*93*95



Type Unit GW4-35/400 GW4-35/800
Rated Voltage KV 35 35
Rated Current A 400 800
Frequency Hz 50/60 50/60
Impulse Voltage (BIL) KV 150 150
Power Frequency withstand Voltage KV 50 50
Creepage Distance MM 1100 1100
Weight KGS 280 282
Package Size CM 128*93*95 128*93*95



Standard

IEC/IEEE and DVE-recommendation standards especially comply with DIN VDE 0670 part

IEC-60265, IEC-129
Features

All steels are made of either in stainless steel or hot-dip galvanized steel.

1. Solid and stable base frame.
2. main contact with ice protection.
3. Polymer insulators or alternatively in porcelain.
4. Minimal sag for the line-connection between two fixed terminals.
5. Completely maintence antirust Aluminium alloy Arc chamber.
6. Switching-off procedure without external arc.
7. Short circuit making capacity under specific conditions possible
8. Fixing on the supporting structure either by clamping(free setting) or screwing (holes in the base frame)
9. Easy on-site installation and setting.

10. High reliabilty up to 1000 cycles (depending on the running current).

11. All contacts are either sliver or tin-plated.
12. Practically maintance-free.
Environmental Conditions

Ambient Temperature: -30℃ - +40℃

Altitude: 3000m

Frequency: 50Hz / 60Hz

Maximum Wind Speed: 35m/s
