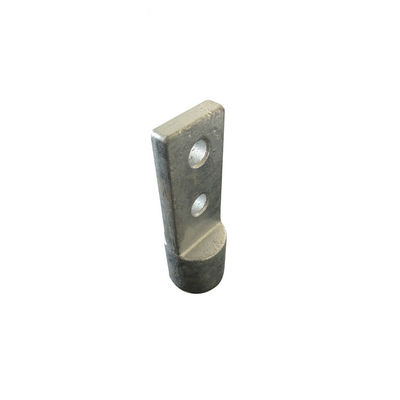

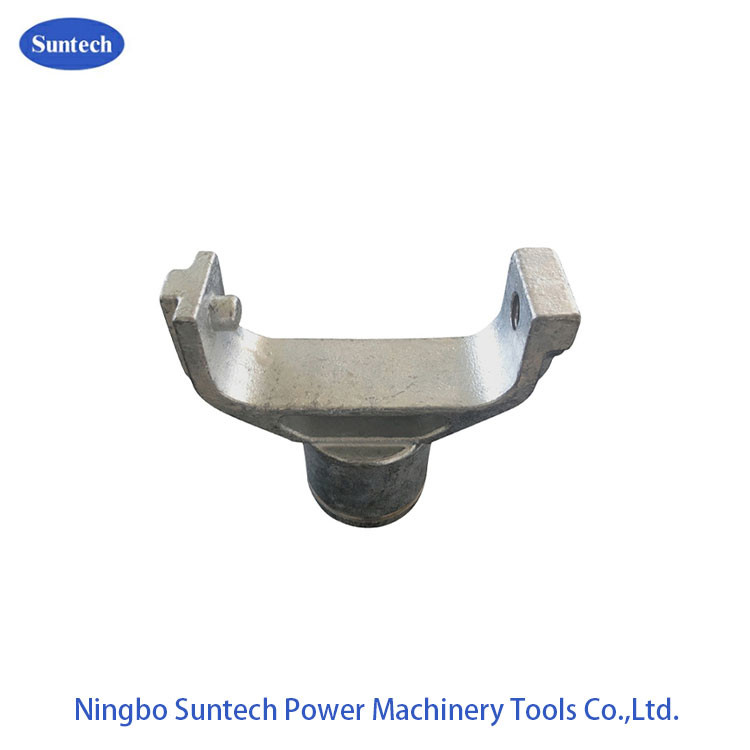

Hot Dip Galvanized Transmission Line Insulator End Fittings

Hot Dip Galvanized Transmission Line Insulator End Fittings

  • Hot Dip Galvanized Transmission Line Insulator End Fittings
  • Hot Dip Galvanized Transmission Line Insulator End Fittings
Hot Dip Galvanized Transmission Line Insulator End Fittings
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001
Model Number: Fittings Ending
Payment & Shipping Terms:
Minimum Order Quantity: 2000pcs
Price: Get the lastest price
Packaging Details: Exported cartons
Delivery Time: 25-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300000pcs per month
Contact Now
Detailed Product Description
Type: Fitting 15-Tongue 16 Material: Carbon Steel
Usage: High Voltage & Low Voltage Rated Voltage:: 33KV
Tensile Strength:: 70KN Name: Insulator End Fitting
High Light:

Transmission Line Insulator End Fittings

,

Hot Dip Galvanized Insulator End Fittings

,

Hot Dip Galvanized Insulator Hardware Fittings

Hot Dip Galvanized Transmission Power Line Insulator End Fittings



High-voltage lines disc hanging porcelain insulator (ordinary) for the insulation of high voltage overhead transmission and distribution lines and fixed for conductor.

General assemble insulator string on a line for different voltage grade type insulator used for general areas, such as increasing insulator piece number can also improve the pollution flashover performance.

Hanging by the porcelain, porcelain insulator iron cap and steel legs with no less than 525 Portland cement, quartz sand cement gel pack. The contact surface between the iron cap and the steel foot and the adhesive is lightly coated with a buffer layer, and the top of the steel foot is provided with elastic liner. Porcelain surface generally painted white glaze, brown glaze, according to the need to draw other glaze. The surface of iron cap and steel foot is all hot-dip galvanized. The push-pull type elastic locking pin of ball-type connection has two types: w-type and r-type, both of which are made of tin bronze, brass and austenitic stainless steel. Grooved cylindrical and hunchback cotter pins, the former having a hot zinc surface and the latter made of brass. The elastic locking pin, cylinder pin and other parts are supplied with complete sets of products.

Insulator according to the connection points ball type and trough type two kinds.

The same strength grade of regular and fouling resistance type insulator, using the same size ball and socket connections, can guarantee the swap.



The Polymeric Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.

The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem – interface electric spark puncture, which would affect the reliability of composite insulator.



Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.

This product is reliable structure, can’t damage the core rod, and take full advantage of the mechanical strength.



We also have kinds of fitting for Insulators,welcome to inquiry,thanks very much!



Packaging & Delivery
Packaging Details
Carton, Pallet, Crate, Wooden box or as per your requirement.
Port
Ningbo Port, Shanghai Port
Lead Time:
Quantity(Pieces) 1 - 2000 2001 - 50000 >50000
Est. Time(days) 25 40 To be negotiated
