Name: 69KV 10KN Pin Suspension Type Polymer Post Insulator
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: FZSW-69/10
Price: 285,715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Item: Polymer Insulator

Material: Composite Polymer

Usage: High Power Voltage

Rate Voltage: 69KV

Tensile Strength:: 10KV

Keywords: Polymeric Line Post Insulator

Highlight:

69KV Polymer Post Insulator

10KN Polymer Post Insulator

69KV Suspension Type Insulators

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO

Model Number: FZSW-69/10

Payment & Shipping Terms

Packaging Details: Exported Cartons and Container

Delivery Time: 25-30 days after deposit

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 6000PCS PER WEEK

Gallery

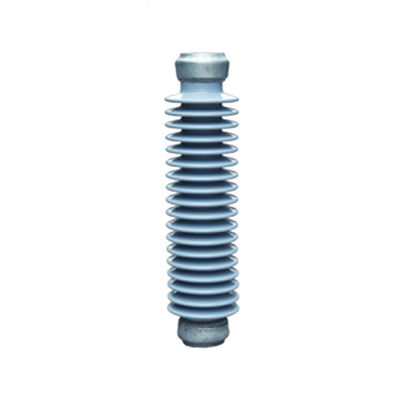

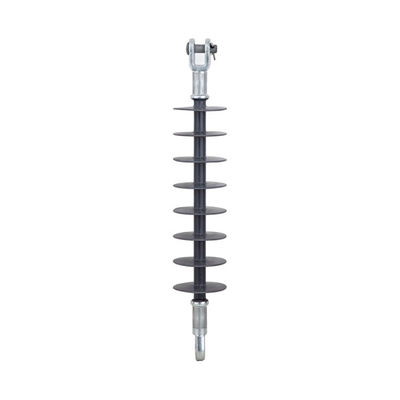

69KV 10KN Pin Suspension Type Polymer Post Insulator

Product Description

High Voltage Pin Polymer Suspension Insulator , Polymeric Post Insulator

We manufacture and supply high performance pin insulators for various industrial applications. The pin Insulators of one piece or multi piece design are widely used in low cost distribution lines. The Multi-piece design makes these insulators very less vulnerable to damage, as with one shell broken a multi-piece insulator can generally withstand the line voltage for a considerable time without any difficulty.

Advantages:

No need of zero value check
High anti-pollution performance, suitable for high polluted area
Not brittle, and reduce the purchasing quantities for spare parts
Light weight, easy and economical to transportation and installation
Less energy required for cleaning, low maintenance and suitable for difficult maintenance area

Technical Parameters:

Product Model	Rated Voltage	Rated mechanical Bending load(KN)	Structure Height H(mm)	Insulating Distance L(mm)	Min Creepaqe Distance (mm)	Lighting Impulse Withstand Voltage (peak)(kv)	P.F.Withstand Voltage (virtual value) (kv
FZSW-69/10	69	10	760	640	1900	410	185
FZSW-12/6	12	6	215	210	450	100	45
FZSW-24/8	24	8	305	265	780	130	60
FZSW-36/6	36	6	445	435	1015	190	90
FZSW-72.5/10	72.5	10	770	675	1820	350	150
FZSW-126/8	126	8	1220	1125	3150	500	230
FZSW-245/4	252	4	2300	2200	6300	1050	450

69KV 10KN Pin Suspension Type Polymer Post Insulator 0

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
