Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | HLPI-11/12.5C450 |
| Minimum Order Quantity: | 300 SETS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Cartons |
| Delivery Time: | 20-25 days after deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000PCS PER WEEK |
| Product Name: | Polymer Horizontal Stand Insulator | Type: | Insulator |
|---|---|---|---|
| Rated Voltage: | 11KV | Application: | High Voltage |
| Warranty: | At Least One Year | Tensile Strength:: | 4KV |
| High Light: | Lightweight Composite Polymer Transmission Line Insulator,11KV Transmission Line Insulator,11KV Polymer Line Insulator |
||

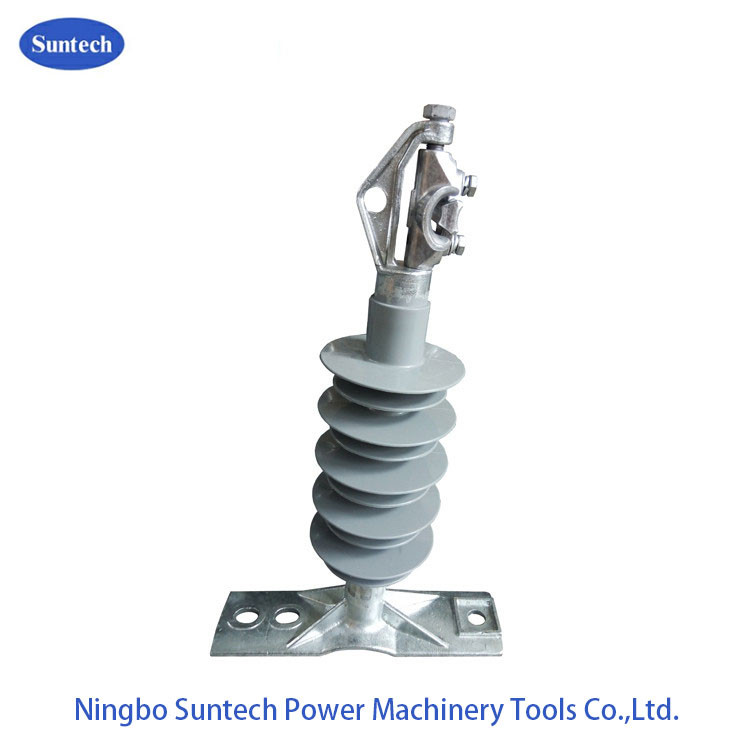

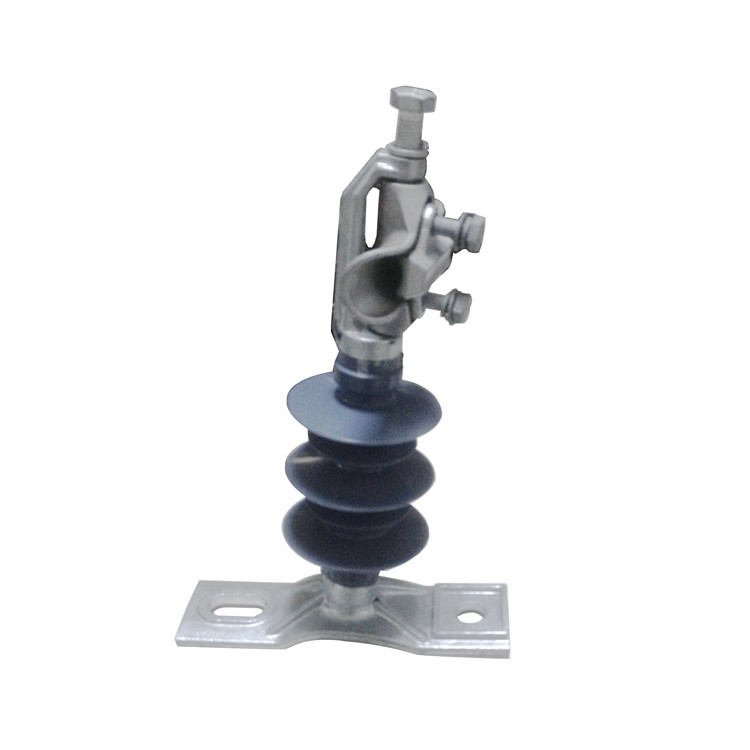

11kv Light Weight Line Pin Type Post Composite Polymer Horizontal Stand Insulator
Polymer Pin Insulator -We manufacture All Types of Polymer Insulator .Electrical is a well-renowned company and is indulge in the business of over-head line insuator.We are an approved vendor in most Discom''s also supplied material in different part of Africa.Polymer Pin insulator,Composite pin insulator, Silicon Pin Insulators are different names for Polymer Pin insulator.These are used in Power Distribution System for 11kv and 33kv. The bottom part of the pin insulator
Technical Parameters:
|
Product Model |
Rated Voltage |
Rated mechanical Bending load(KN) |
Overall Height H(mm) |
Insulating Distance L(mm) |
Min Creepaqe Distance (mm) |
Lighting Impulse Withstand Voltage (peak)(kv) |
P.F.Withstand Voltage (virtual value) (kv) |
| HLPI-11/12.5C450 | 11 | 12.5 | 425 | 177 | 450 | 110 | 30 |
| HLPI-11/8C450 | 11 | 8 | 374 | 169 | 450 | 110 |
30 |
This insulator is applied to high voltage power line service. And it has features of good hydrophobicity, anti-ageing, anti-leakage trace and electric erode proof, tensile strenght and bending strength, strong mechanical strength, shock resistance, good quake proof and brittle failure proof, light weight, easy for installation, and the installation size of top and base is the same as porcelain type line post insulator. They can replace each other.
In order to meet new challenge and satisfy increased customers’ demand on our products and quality,SUNTECH will consistenly keep on updating and developing more products for new and old clients. We are looking forward to your mutual cooperation and support as usual.
