Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | Polymer Pin Post Insulator |
Minimum Order Quantity: | 100PCS |
---|---|
Price: | Get the newest price |
Packaging Details: | Exported cartons or cases |
Delivery Time: | 30days after deposit |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20000PCS Per Month |
Item: | Insulator | Product Material: | Composite Polymer |
---|---|---|---|
Rated Voltage: | 3.3KV | Tensile Strength:: | 10KN |
Usage: | High Voltage | MOQ: | 100 |
High Light: | 3.3KV Pin Post Insulators,10KN Pin Post Insulators,3.3KV Electrical Line Insulator |

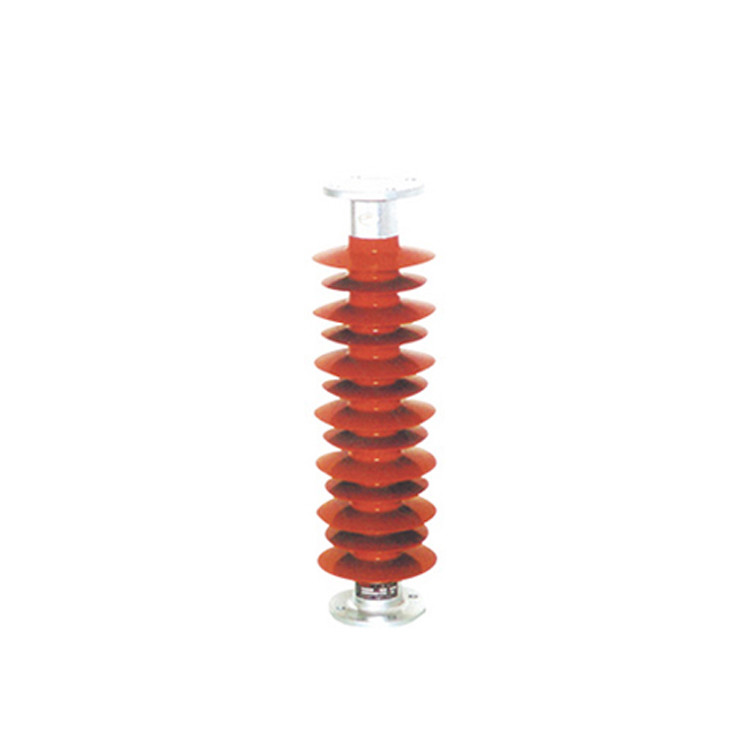

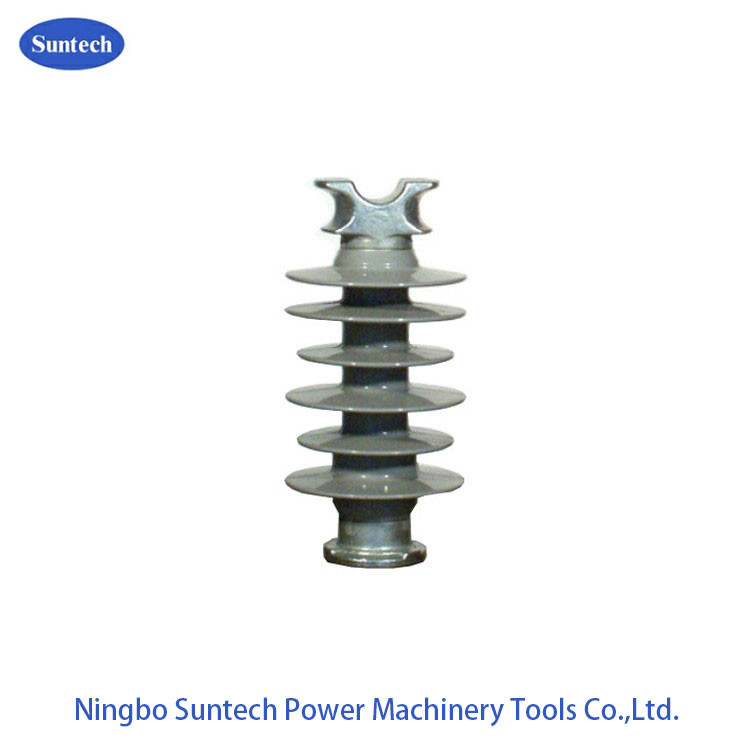

Power Line Electrical Outdoor High Voltage Composite Polymer Pin Post Insulator
This product is applied to high voltage power line service.And have features of good gydrophobicity.anti-ageing.
anti-leakage traceand electric erode proof, tensile sfrengih and bending strength.strong mechanical strength.shock
resistance good quake proof and brittle failure proof light weight.easy lo installation,and the installation size ol top
and base are the same size with porcelainp in type,they can exchange to use each other
Normal service conditions:
1. The ambient temperature: -40°C ~+40°C
2. The altitude above sea level :not exceed 1000-2000m (the altiplano area should be indicated when order)
3. Earthquake intensity: not higher than 7 degrees;
4. Maximum wind velocity :less than 35m/s.
5. The filthy area should be given clear indication.
Technical Parameters:
Product Model |
Rated Voltage |
Rated mechanical Bending load(KN) |
Structure Height H(mm)
|
Insulating Distance L(mm) |
Min Creepaqe Distance (mm) |
Lighting Impulse Withstand Voltage (peak)(kv) |
P.F.Withstand Voltage (virtual value) (kv |
FPQ-10/4T20 | 10 | 4 | 215 | 125 | 280 | 75 | 42 |
FPQ-10/5T20 | 10 | 5 | 250 | 165 | 420 | 105 | 42 |
FPQ-24/6 | 24 | 6 | 305 | 255 | 715 | 150 | 75 |
FPQ-36/8 | 36 | 8 | 440 | 320 | 1000 | 185 | 95 |
FPQ-52/12 | 52 | 12 | 400 | 415 | 1255 | 220 |
110 |
