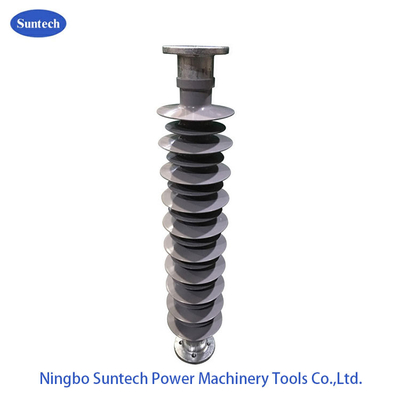

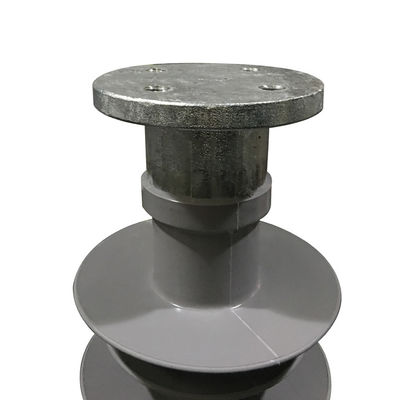

69KV 10KN Erode Proof High Voltage Polymer Line Post Insulators

69KV 10KN Erode Proof High Voltage Polymer Line Post Insulators

  • 69KV 10KN Erode Proof High Voltage Polymer Line Post Insulators
  • 69KV 10KN Erode Proof High Voltage Polymer Line Post Insulators
69KV 10KN Erode Proof High Voltage Polymer Line Post Insulators
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: FZSW-69/10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Exported Wooden Case
Delivery Time: 25-30days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60000PCS Per Month
Contact Now
Detailed Product Description
Name: Polymeric Line Post Insulator Material: Composite Polymer
Rated Voltage: 69KV Tensile Strength:: 10KN
Application: High Voltage Bending Stregth:: 10KN
High Light:

10KN Polymer Line Post Insulators

,

69KV Polymer Line Post Insulators

,

69KV High Voltage Line Insulators

High Voltage Anti Leakage Composite Electric Erode Proof Pin Polymeric Post Insulator



This product is applied lo high voltage power line service. And it has features of good hydrophobicity, anti-ageing, anti-leakage trace and electric erode proof, tensile strength and bending strength, strong mechanical strength, shock resistance, good quake proof and brittle failure proof, light weight, easy for installation, and the installation size of top and base is the same as porcelain type post insulator. They can replace each other.



Technical Parameters:



Product

Model



Rated

Voltage



Rated

mechanical

Bending load(KN)



Structure

Height

H(mm)





Insulating

Distance

L(mm)

Min

Creepaqe

Distance

(mm)

Lighting

Impulse

Withstand

Voltage

(peak)(kv)

P.F.Withstand

Voltage

(virtual

value)

(kv

FZSW-69/10 69 10 760 640 1900 410 185
FZSW-12/6 12 6 215 210 450 100 45
FZSW-24/8 24 8 305 265 780 130 60
FZSW-36/6 36 6 445 435 1015 190 90
FZSW-72.5/10 72.5 10 770 675 1820 350 150
FZSW-126/8 126 8 1220 1125 3150 500 230
FZSW-245/4 252 4 2300 2200 6300 1050 450



FAQ



Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.

Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.

Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.

Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.

Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.

69KV 10KN Erode Proof High Voltage Polymer Line Post Insulators 069KV 10KN Erode Proof High Voltage Polymer Line Post Insulators 1
