Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Post Insulators |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Pallets and Cartons |
| Delivery Time: | 15-20days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000PCS PER WEEK |
| Material: | Composite | Type: | Insulator |
|---|---|---|---|
| Rated Voltage: | 10KV To 110KV | Application: | High Voltage |
| Tensile Strength:: | 6KN To 10KN | Warranty: | At Least One Year |
| High Light: | 6KN Transmission Line Insulator,10KV Polymer Transmission Line Insulator,6KN Polymer Line Insulator |
||

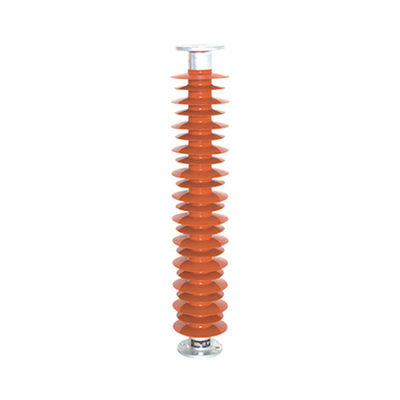

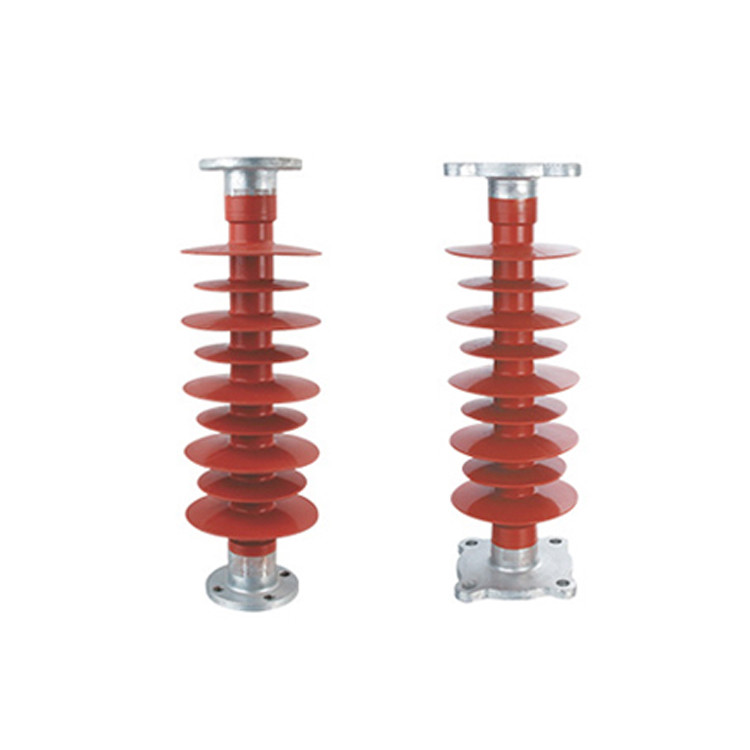

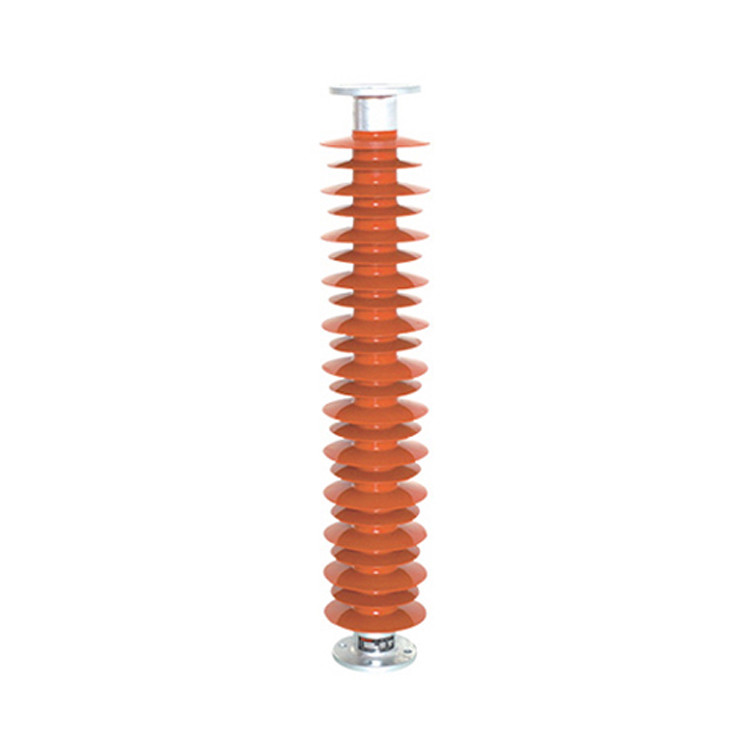

10KV To 110KV Transmission Composite Polymer Line Post Insulators
This product is applied lo high voltage power line service. And it has features of good hydrophobicity, anti-ageing, anti-leakage trace and electric erode proof, tensile strength and bending strength, strong mechanical strength, shock resistance, good quake proof and brittle failure proof, light weight, easy for installation, and the installation size of top and base is the same as porcelain type post insulator. They can replace each other.
|
Product Model |
Rated Voltage |
Rated mechanical Bending load(KN) |
Structure Height H(mm)
|
Insulating Distance L(mm) |
Min Creepaqe Distance (mm) |
Diameter Of Shed D(mm) |
Lighting Impulse Withstand Voltage (peak)(kv) |
P.F.Withstand Voltage (virtual value) (kv |
| FZSW-10/4 | 10 | 4 | 215 | 125 | 290 | 100/90 | 75 | 42 |
| FZSV/-24/8 | 24 | 8 | 300 | 220 | 750 | 133/93 | 150 | 65 |
| FZSW-35/6 | 35 | 6 | 450 | 360 | 946 | 148/118 | 185 | 95 |
| FZSW-66/6 | 66 | 6 | 760 | 630 | 1886 | 160/130 | 410 | 185 |
| FZSW-66/10 | 66 | 10 | 760 | 630 | 2010 | 220/190 | 410 | 185 |
| FZSW-110/10 | 110 | 10 | 1220 | 1080 | 3530 | 220/190 | 500 | 230 |
| FZSW-220/8 | 220 | 8 | 2440 | 2200 | 7060 | 220/190 | 1000 | 395 |
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
