SA-YQ90 Hydraulic Puller For Overhead Transmission Line Cable Stringing Maintenance

1set
MOQ
Negotiable
Price
SA-YQ90 Hydraulic Puller For Overhead Transmission Line Cable Stringing Maintenance
Features Gallery Product Description Chat Now
Features
Specifications
Model No.: SA-YQ90
Maximum Pulling Speed (km/h): 5
Engine Power/Speed(kw/Rpm): 121/2500
Product Name: Hydraulic Puller
Specification: Weight 4500KGS
Production Capacity: 30PCS/Month
Continuous Tractive Effort(kn): 80
Number Of Bullwheel Grooves: 7
Weight(kg): 4300
Transport Package: Carton Box
Highlight:

Overhead Transmission Line Hydraulic Puller

,

Cable Stringing Maintenance Hydraulic Puller

,

Cable Stringing Hydraulic Puller

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001:2008
Model Number: YQ-90
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 10 work days
Payment Terms: L/C, T/T
Supply Ability: 10sets / 3months
Product Description

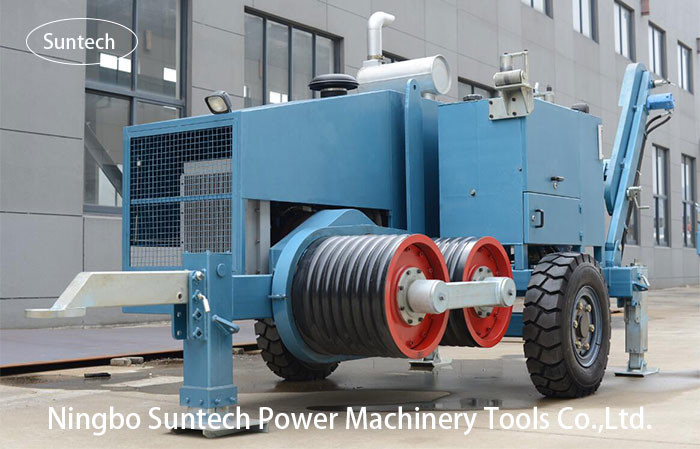

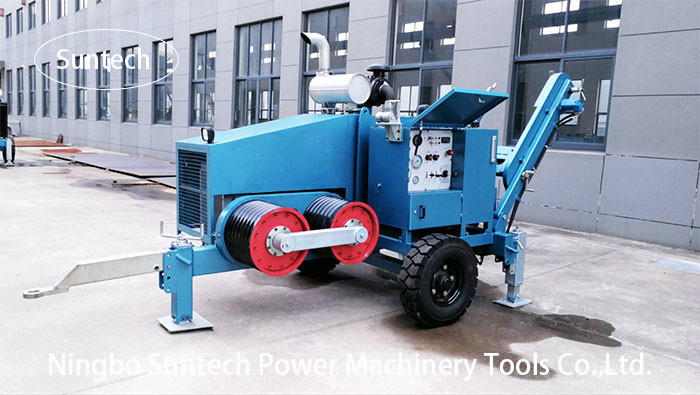

SA-YQ90 Hydraulic Puller for Overhead Transmission Line Cable Stringing Maintenance



Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either



Our SA-YQ90 Hydraulic Wire Puller possesses the steplessly adjustable traction force and pulling speed, and the pull in the rope can be visually displayed on the line pull gauge. This equipment also comes with an overload automatic protection system. The maximum traction force can be preset. A reliable overhead protection mechanism makes this machine easy to be used.



Moreover, the spring applied hydraulically released brake can act automatically. Thus, the secure operation of our SA-YQ90 Hydraulic Puller can be well ensured, when the hydraulic puller set's motor suddenly turns off or other reasons cause the hydraulic failure.



Thanks to the hydraulic type rope clamping device,industrial hydraulic pullers are easy to replace the steel wire rope reel. Additionally, hydraulic hub puller is equipped with the steel wire rope automatically winding device, which can automatically arrange the rope and also make loading and unloading convenient



Model SA-YQ90 Hydraulic Puller
Maximum Traction Force (kN) 90
Continuous Tractive Effort (kN) 80
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ520
Number of Bullwheel Grooves 7
Maximum Diameter of Suitable Steel Rope (mm) Φ21
Maximum Through Connector Diameter (mm) Φ60
Engine Power / Speed (kW/rpm) 121/2500
Dimensions (mm) 3500× 2100× 2500
Weight (kg) 4300



Engine Cummins (USA) water-cooled diesel engine
Main Variable Displacement Pump, Main Motor Rexroth (BOSCH)
Reducer Rexroth (BOSCH)
Main Hydraulic Valves Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument WIKA
Suitable Drum Model GSP1400 (order number: 07125C)
Option Cummins DONGFENG water-cooled diesel motor
(Model: YA-YQ90D, Item number: 07042)
