70kn Hydraulic Puller Tensioner For Overhead Line Construction Cable Stringing Equipment

1set
MOQ
Negotiable
Price
70kn Hydraulic Puller Tensioner For Overhead Line Construction Cable Stringing Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Model No.: SA-YZ2x35
Feature: Hydraulic
Maximum Tension: 2x35KN
Maximum Speedback: 3KM/H
Number Of Grooves: 5
Weight: 2800kg
Highlight:

70kn Hydraulic Puller Tensioner

,

Overhead Line Construction Hydraulic Puller Tensioner

,

Cable Stringing Equipment Hydraulic Puller Tensioner

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001:2008
Model Number: SA-YZ2*35
Payment & Shipping Terms
Packaging Details: Containers
Delivery Time: 10 work days
Payment Terms: L/C, T/T
Supply Ability: 10sets / 3months
Product Description

40kn Hydraulic Puller Tensioner for Overhead Line Construction Cable Stringing Equipment



Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

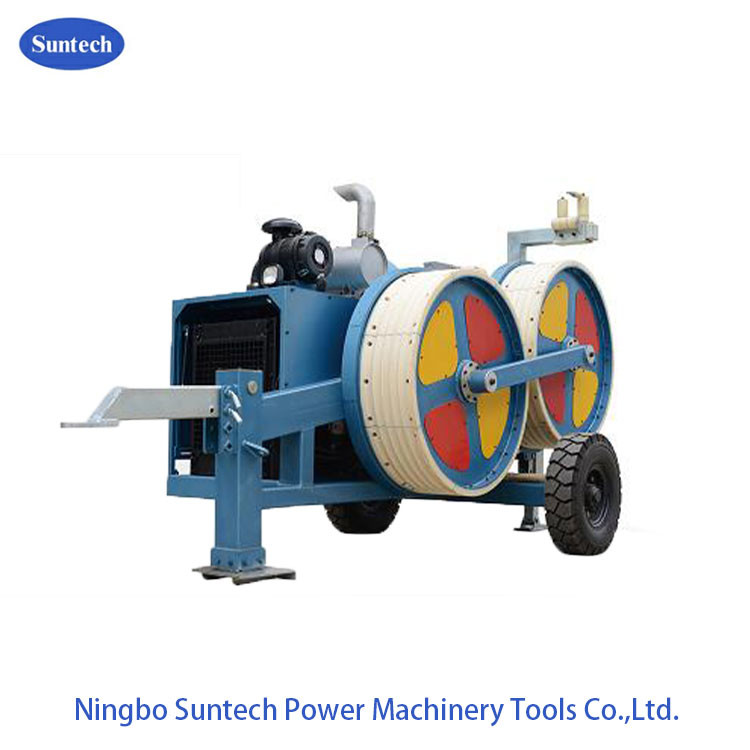

This SA-YZ2×35 Hydraulic Tensioner is able to string all sorts of conductors and ground wires. It can realize the constant-tension conductor stringing, because of the infinitely variable tension control.

Main Technical Parameters

Model SA-YZ70 Hydraulic Tensioner
Maximum Tension (kN) 2× 35 or 1× 70
Continuous Tension (kN) 2× 30 or 1× 60
Maximum Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ1200
Number of Grooves 2× 5
Maximum Pullback (kN) 2× 30 or 1× 60
Maximum Speedback (km/h) 2× 2.1
Maximum Diameter of Suitable Conductor (mm) Φ32
Engine Power / Speed (kW/rpm) 51/2500
Dimensions (mm) 4400 × 2100× 2600
Weight (kg) 4000


Main Components

Engine Beinei Deutz air cooled diesel engine
Main Pump/Motor Rexroth (BOSCH)
Reducer RR (Italian) or Rexroth
Hydraulic Valve Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument WIKA
