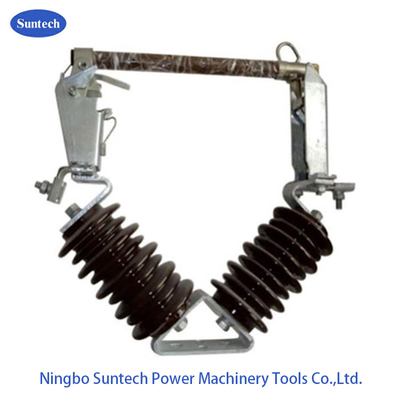

High Voltage Expulsion Dropout 22kv T Bar Type Fuse Cut Out Outdoor

High Voltage Expulsion Dropout 22kv T Bar Type Fuse Cut Out Outdoor

  • High Voltage Expulsion Dropout 22kv T Bar Type Fuse Cut Out Outdoor
  • High Voltage Expulsion Dropout 22kv T Bar Type Fuse Cut Out Outdoor
High Voltage Expulsion Dropout 22kv T Bar Type Fuse Cut Out Outdoor
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: SCO22
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Get the newest price
Packaging Details: Box with Pattets For Shipping
Delivery Time: 7 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000PCS Per Month
Contact Now
Detailed Product Description
Usage: High Voltage Capacity: High
Name: T Bar Type Fuse Cut Out Application: Construction Site
Material: Drop Fuse Cutout Standard: IEC60282-2
High Light:

22kv Fuse Cut Out

,

T Bar Type Fuse Cut Out

,

IEC60282-2 High Voltage Fuse Cutout

Outdoor High Voltage Expulsion Dropout 22kv T Bar Type Fuse Cut Out



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.



Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.



Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.



Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.



Overview:

Drop out fuses and load-drop fuses are outdoor high voltage protection appliances. It is installed on the high voltage side of the distribution transformer or on the branch line of the distribution line. used as a short circuit of the transformer and the line, overload protection and split load current.



The drop fuse is composed of two parts:

An insulating bracket and a fuse tube. The static contact is installed at two ends of the insulating bracket, the movable contact is installed at both ends of the fuse tube, and the fuse tube is composed of an inner arc extinguishing tube and an outer layer.

It consists of a phenolic paper tube or an epoxy glass tube. The load drop fuse enhances the elastic auxiliary contact and the arc extinguishing cover to divide and combine the load current.



Product use environment:

1. The ambient temperature is not higher than +40 C, not lower than-40 C

2. The altitude does not exceed 3000m

3. The maximum wind speed does not exceed 35m/s

4. The earthquake intensity does not exceed 8 degrees



Outdoor High Voltage Expulsion Dropout 22kv T Bar Type Fuse cut out

Outdoor High Voltage Expulsion Dropout 22kv T Bar Type Fuse cut out

Technical Parameter Table

Type Unit DOPT22360 DOPT22360
Rated Voltage KV 22 22
Rated Current A 100 200
Rated Short-circuit Breaking Current KA 10 12
Impulse Withstand Voltage (BIL) KV 125 125
Power Frequency withstand Voltage KV 45 45
Creepage Distance MM 360 360
weight KG 8 8.5
Applicable Standard IEC 60282-2 60282-2
Dimensions CM 51*32.5*12 51*32.5*12

Outdoor High Voltage Expulsion Dropout 22kv T Bar Type Fuse cut out

Description Fuse cutout is to provide reliable protection for the 10-35KV power distribution line and distribution transformers, it also protects the overload and short circuit, switching on/off the rated load current.
Standard IEC 60282-2
Environmental Conditions

Ambient Temperature: -30℃ - +40

Altitude: 3000m

Frequency: 50Hz / 60Hz

Maximum Wind Speed: 35m/s
