Features

Specifications

Name: Hoisting Tackle

Model: QH

Rated Load: 10-200KN

Max Diameter: 5.7-20mm

Weight: 3-50KG

Warranty: 1 Year

Basic Infomation

Place of Origin: Ningbo

Brand Name: Suntech

Certification: ISO

Model Number: QH

Payment & Shipping Terms

Packaging Details: Plywood Case

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 3000 PCS/Month

Gallery

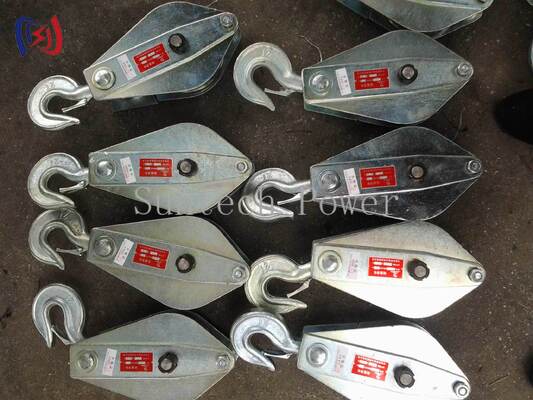

Professional Hoisting Tackle Block and Tackle System for Heavy Duty Lifting with 10-200KN Rated Load in Electrical Construction Projects

Product Description

Professional Hoisting Tackle for Heavy Duty Lifting and Pulling in Electrical Construction Projects

Item number	Model	Number of sheaves	Rated load (kN)	Roller Dia×width (MM)	MAX. Rope Diameter (mm)	Weight (kg)
11301	QHL1x1	1	10	Φ100×31	Φ8	2
11302	QHL1x2	2		Φ80×27	Φ6	2
11303	QHL1x3	3		Φ80×27	Φ6	2
11311	QHL2x1	1	20	Φ120×35	Φ10	3
11312	QHL2x2	2		Φ100×31	Φ8	3
11313	QHL2x3	3		Φ100×31	Φ8	4
11321	QHL3x1	1	30	Φ150×39	Φ11	4
11322	QHL3x2	2		Φ120×35	Φ10	4
11323	QHL3x3	3		Φ100×31	Φ8	5
11331	QHL5x1	1	50	Φ166×40	Φ13	6
11332	QHL5x2	2		Φ150×39	Φ11	6
11333	QHL5x3	3		Φ120×35	Φ10	7
11341	QHL8x1	1	80	Φ205×49	Φ18	9
11342	QHL8x2	2		Φ166×40	Φ13	9
11343	QHL8x3	3		Φ150×39	Φ11	10
11351	QHL10x1	1	100	Φ246×60	Φ20	12
11352	QHL10x2	2		Φ166×40	Φ13	12
11353	QHL10x3	3		Φ150×39	Φ11	13

Hoisting Tackle, commonly known as a block and tackle system, is a fundamental mechanical assembly used for lifting, lowering, and pulling heavy loads with precision and control. This system utilizes one or more pulleys (sheaves) and a rope or cable to provide mechanical advantage. In the electrical power industry, this equipment is critical for tasks requiring controlled mechanical force where powered cranes or hoists are impractical or where fine manual control is essential.

Key Features and Benefits

Provides Significant Mechanical Advantage for Heavy Lifting: The core principle is force multiplication, allowing a single operator to lift loads weighing several tons with moderate effort.
Enables Precise and Controlled Load Positioning: Offers unmatched control for minute, incremental adjustments critical when aligning mounting holes or positioning delicate components.
Operates with Complete Independence from External Power: Requires no electricity, compressed air, or hydraulic power, making it ready for immediate deployment in any environment.
Essential for Rigging and Lifting in Confined or Complex Spaces: Compact design allows rigging in tight areas inaccessible to larger machinery like cranes and forklifts.
Dramatically Enhances Worksite Safety for Material Handling: Provides a safe, engineered method for lifting heavy objects, reducing risks of injuries and equipment damage.
Versatile for a Wide Array of Electrical Construction and Maintenance Tasks: Applications include vertical lifting, horizontal pulling, cable installation, and vehicle recovery.
Durable and Low-Maintenance for Demanding Industrial Use: Built with forged alloy steel components and hardened steel sheaves for years of reliable service.
A Foundational Tool for Professional Electrical and Rigging Work: Essential equipment for electricians, substation technicians, linemen, and riggers committed to safe work practices.
Cost-Effective with a Rapid Return on Investment: Modest initial cost with zero ongoing energy costs and significant savings in labor time and equipment protection.
Trusted for Reliability in Critical and Sensitive Lifting Operations: Mechanical simplicity and robust construction provide absolute confidence for critical infrastructure work.

Hoisting Tackle is a timeless masterpiece of practical mechanical engineering that reliably amplifies human effort to provide controlled, powerful lifting and pulling force with precision and safety. Its independence, versatility, and durability make it an irreplaceable asset for any task involving the movement of heavy electrical equipment. This essential, foundational tool is crucial for building, maintaining, and repairing the electrical systems that power our modern world.
