Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Suntech Tower |
| Certification: | ISO, CE |
| Model Number: | Self-Support Telecom Tower |
| Minimum Order Quantity: | 1 Tower |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Exported Containers |
| Delivery Time: | 30-35 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000 Metric Ton/Metric Tons Per Year |
| Product Name: | Generator Galvanised Steel Tower | Material: | Steel Q345,Q235 |
|---|---|---|---|
| Height: | 10-80M | Surface Treatment: | Hot Dip Galvanized |
| Wind Speed: | 110~160km/h_3 Second Gust | Application: | Telecom Site Construction |
| High Light: | Generator Galvanised Steel Tower,Communication Galvanised Steel Tower,Q235 Galvanised Steel Tower |
||
Generator Galvanised Steel Tower For Communication
Main Features
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds
of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting
,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Material :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3 equivalent
standard materials
3. deal: Hot dip galvanized Following ASTM A 123 or any other standard by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.
Telecommunication Tower- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading |
1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type |
1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles |
| 10 | Warranty |
1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories |
1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients |
Quick Detail:

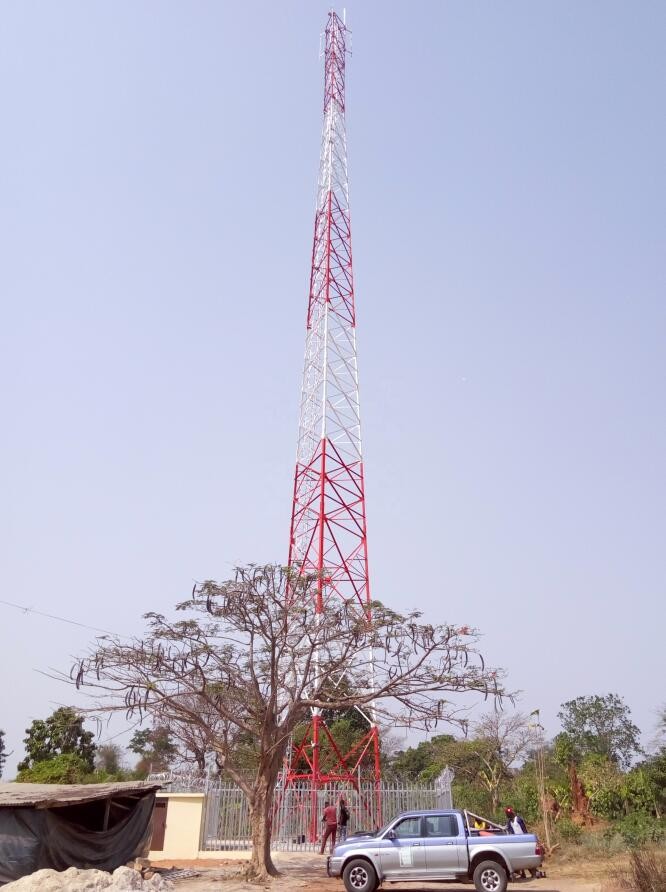

4 legged square telecom lattice angular tower feature:
Angle steel tower has good rigidity, suitable for high requirements for horizontal displacement of base
station; simple structure, easy processing, convenient for factory production. Generally high tower type,
suitable for meet the requirements. Don't need to apply to large hoisting equipment, installation is convenient.
Applicable to rural and suburban area which is open, lower area on the appearance requirements.
Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on
a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for
standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped
with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights,
lightning protection kit and more. All of the accessories can be installed at any desired height and orientation
according to customer Specification.

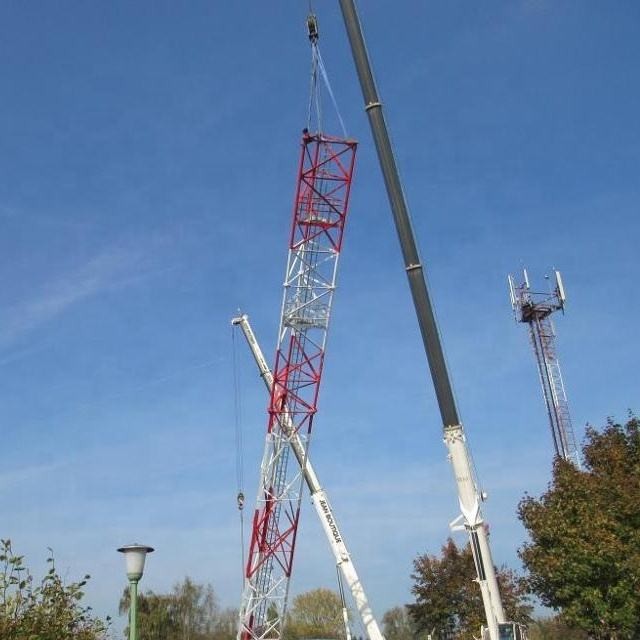

Self supporting tower usually is 3-leg or 4-leg tower, and its material is steel pipe or angle steel. As for the connection,
tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
Features
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3.Convenient transportation and installation.
