40kn Power Line Stringing Equipment Wire Puller Machine , Stringing Puller Tensioner

40kn Power Line Stringing Equipment Wire Puller Machine , Stringing Puller Tensioner

  • 40kn Power Line Stringing Equipment Wire Puller Machine , Stringing Puller Tensioner
  • 40kn Power Line Stringing Equipment Wire Puller Machine , Stringing Puller Tensioner
40kn Power Line Stringing Equipment Wire Puller Machine , Stringing Puller Tensioner
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: SA-YZ40A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Get the newest price
Packaging Details: Exported Containers
Delivery Time: In Stock
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50sets per month
Contact Now
Detailed Product Description
Product Name: Pulling Tensioning Conductor Item: 07171
Max Tension: 40KN Dimensions: 3.4X1.8X2.4m
Continuous Tension: 35KN Bottom Of Groove Diameter: 1200
Max Speed Back: 3 Engine Power/Speed: 37/2800
High Light:

40KN Hydraulic Puller Tensioner

,

Hydraulic Puller Tensioner SA-YQZ40

,

Conductor Hydraulic Puller Tensioner

40kn Power Line Stringing Equipment Wire Puller Machine , Stringing Puller Tensioner

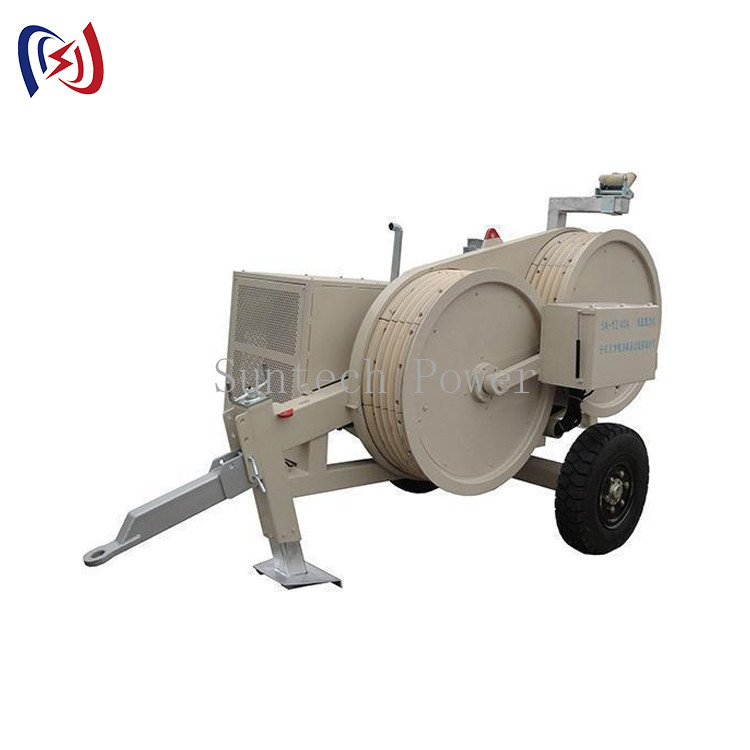

Our SA-YQZ40/SA-YQZ60 Hydraulic Puller Tensioner provides dual function of pulling and tensioning conductors. It is particularly suitable for the replacement of existing power lines. Its bullwheel makes use of the wear-proof MC nylon lining segments.

Additionally, this product is unique in its closed type hydraulic circuit and bi-directional variable plunger pump, providing the infinitely variable tension force control. Main configurations of this product include the Rexroth pump and motor, Italian RR reducer, as well as the model C attached reel winder.

Our SA-YQZ40/SA-YQZ60 Hydraulic Puller Tensioner also comes with the spring applied hydraulically released brake, featuring high reliability and easy operation. With hydraulic power output interface, this product can be used together with the model DW2240A hydraulic conductor reel stand or others.



Item number 07212 07155 07171 07181 07192 07197
Model SA-YZM7.5 SA-YZ30A SA-YZ40A SA-YZ2x35 SA-YZ2x40B SA-YZ2x55
Maximum Tension(KN) 7.5 30 40 2x35/1x70 2x40/1x80 2x55/1x110
Continuous Tension(KN) 7.5 25 35 2x30/1x60 2x35/1x70 2x50/1x100
Maximum speed(KM/H) 40M/Min 5 5 5 5 5
Bottom of groovr diamere(MM) Φ1100 Φ1200 Φ1200 Φ1200 Φ1500 Φ1600

Number

of groovr

(MM)

/ 5 5 2x5 2x5 2x5
Number of groovr(KN) / 20 40 2x30/1X60 2x40/1X80 2x50/1X100

Maximum speed back

(KM/H)

/ / 3 2x2.1 2x1.5 2x2.1

Maximum suitable

conductor diameter(MM)

/ Φ32 Φ32 Φ32 Φ40 Φ42.5

Engine power/speed

(KW/RPM)

/ 11/2200 37/2800 51/2500 51/2500 54/2500
Dimensions(M) 2.3x1.2x1.6 3.6x1.8x2.4 3.4x1.8x2.4 4.4x2.1x2.6 4.5x2.2x2.8 5.0x2.3x2.7
Weight(KG) 450 1700 2800 4000 4850 7500
