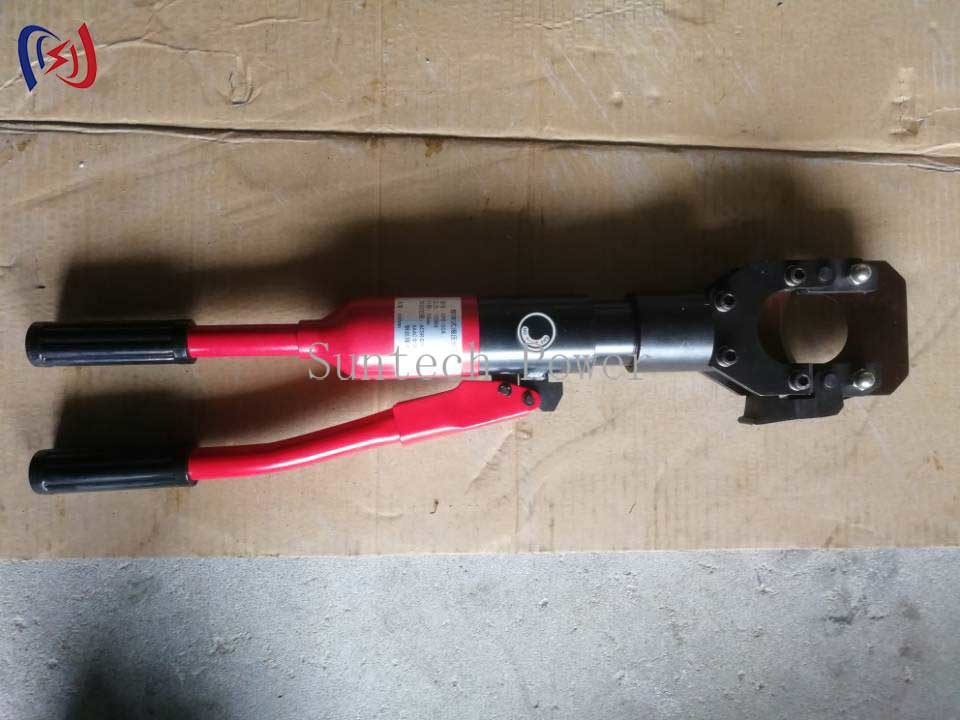

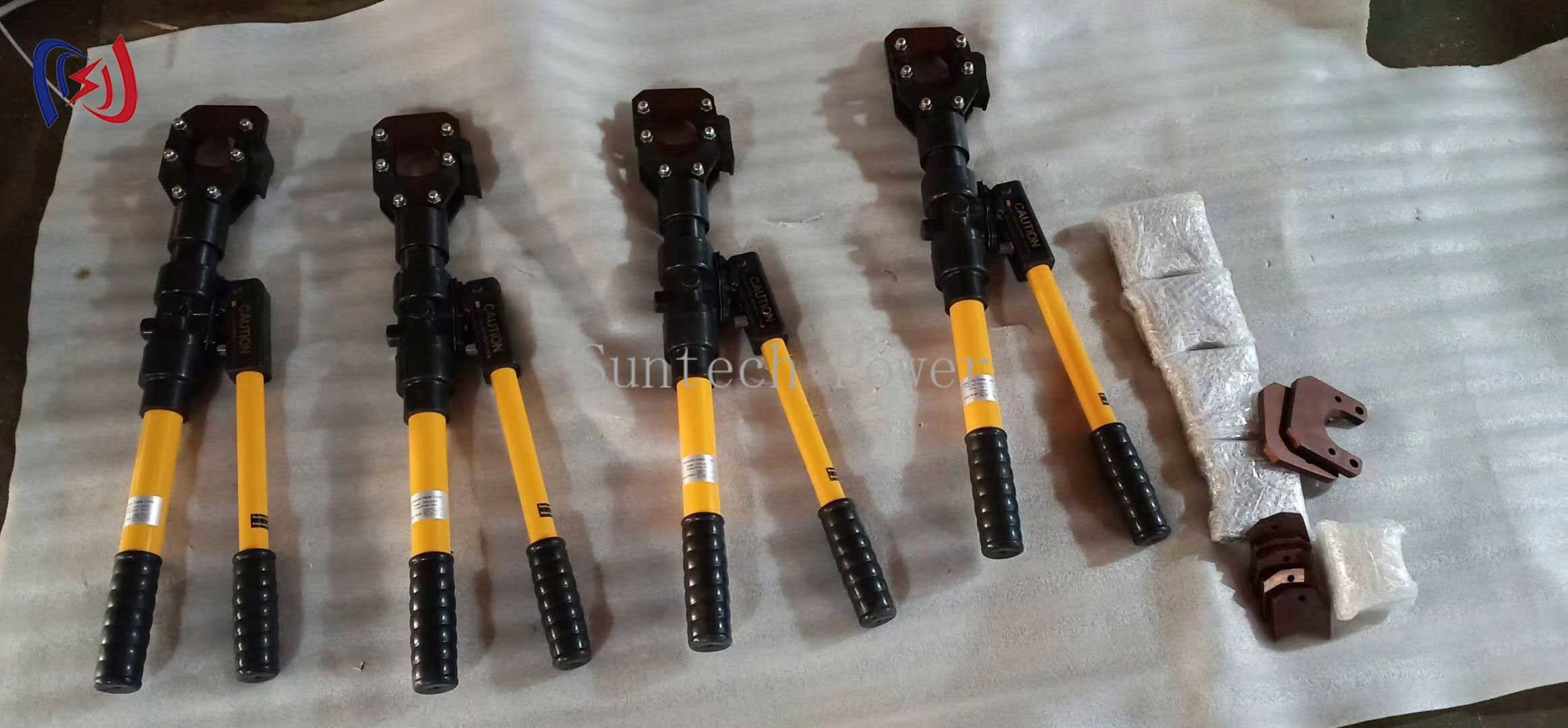

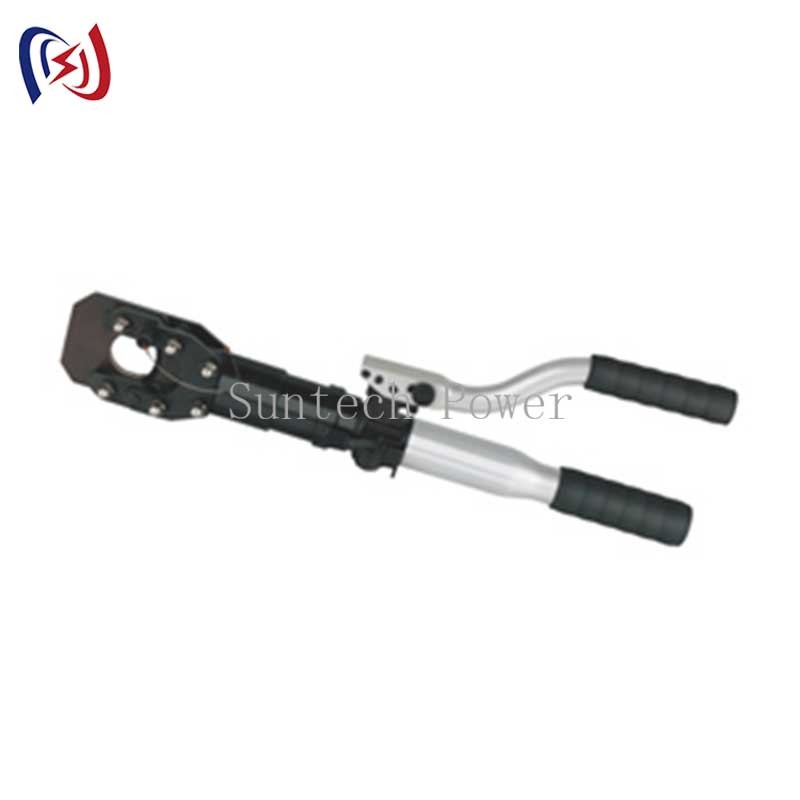

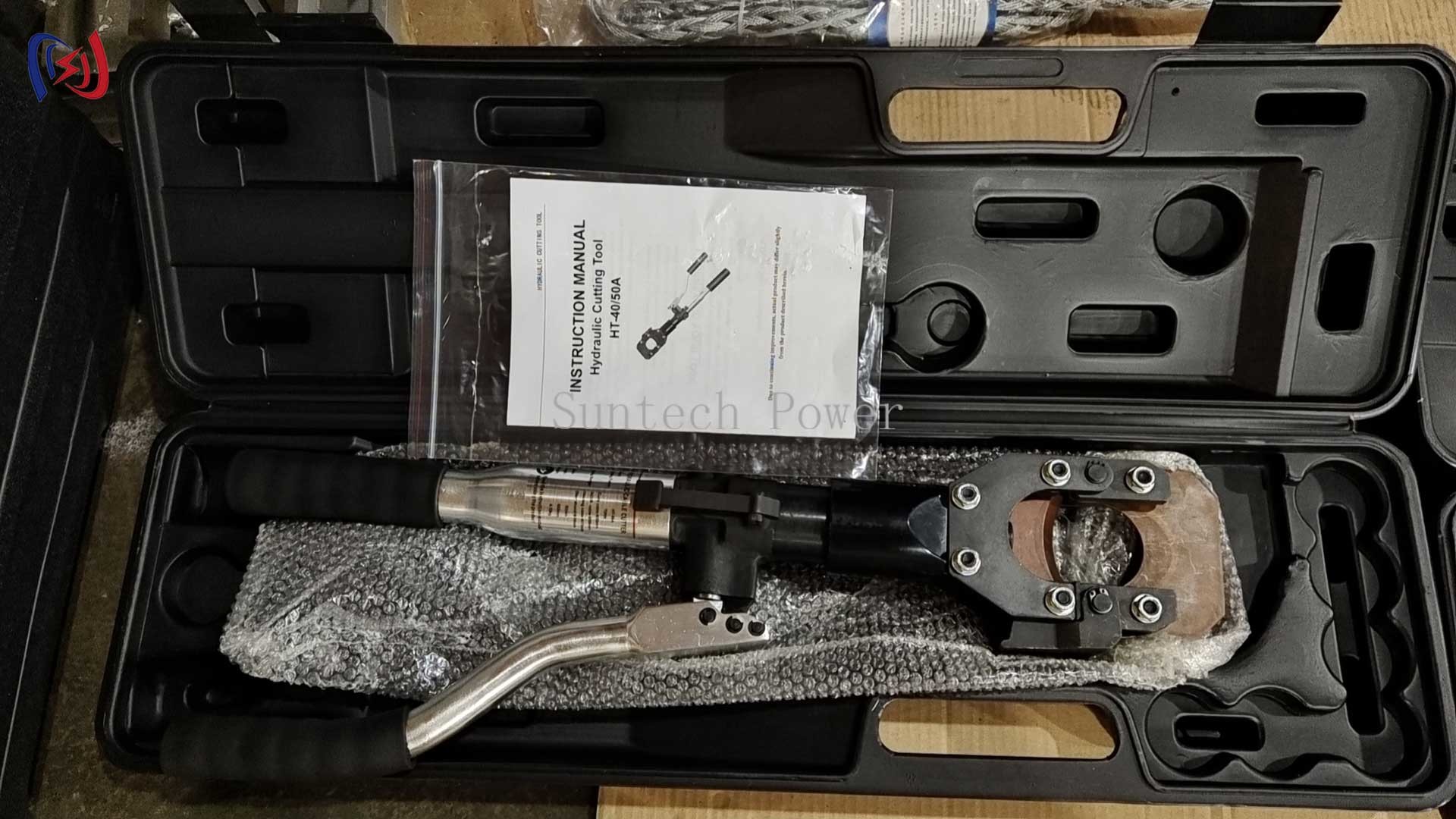

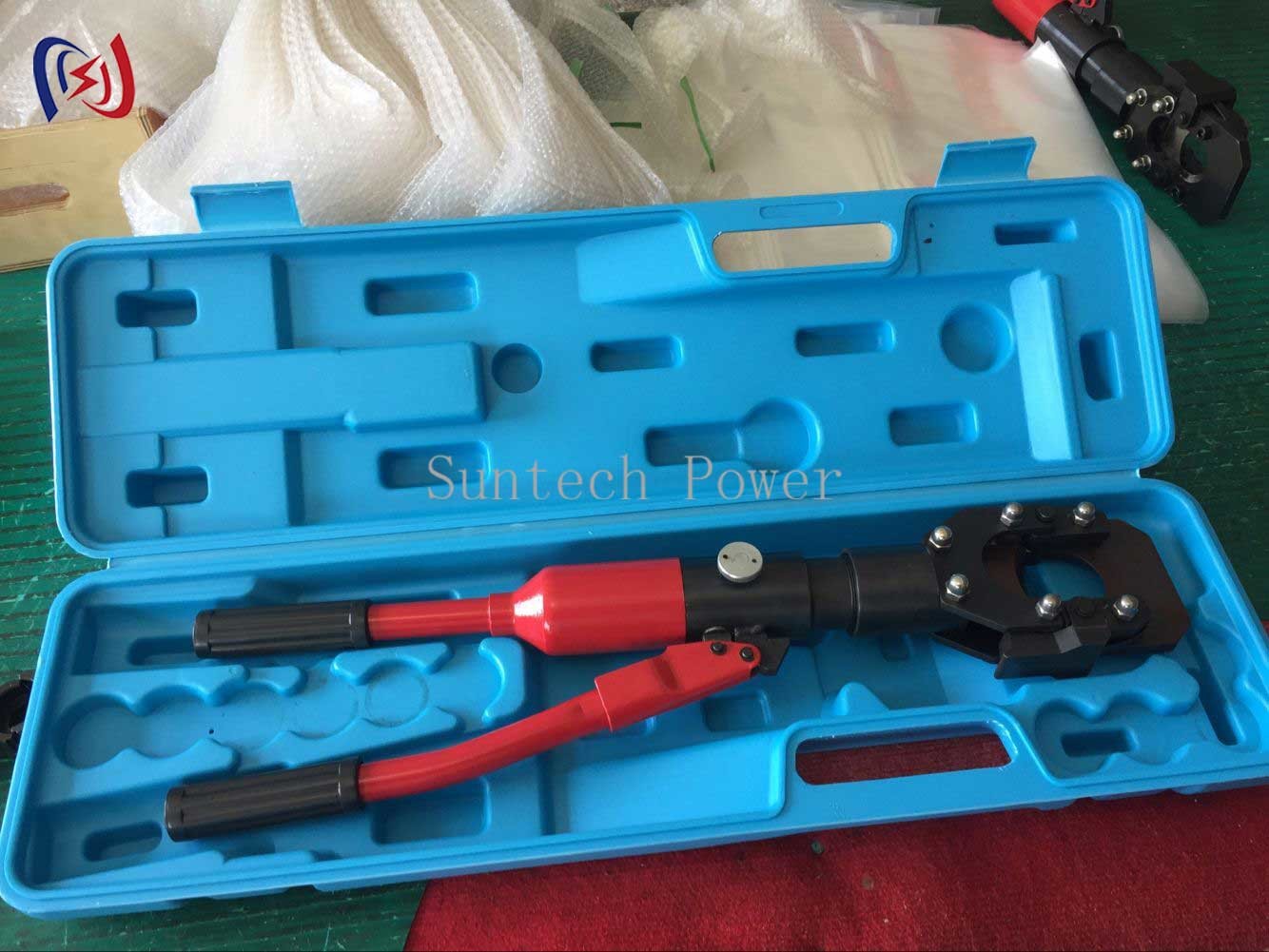

Industrial-Grade Hydraulic Cable Cutting Tool with Built-in Pump
Features:
Integrated Hydraulic System: No external hoses or pumps needed - compact and ready for immediate use
High Cutting Force: Delivers up to 10 tons of cutting pressure for clean cuts on armored cables
Self-Sharpening Blades: Hardened steel blades maintain sharpness through thousands of cuts
Safety Lock: Prevents accidental operation during transport or storage
Ergonomic Design: Anti-slip grips and balanced weight reduce operator fatigue
Working Principle:
The built-in hydraulic pump generates high pressure when the handles are squeezed, forcing the ultra-sharp blades through even the toughest cables with minimal effort. The quick-release valve instantly resets the tool for rapid repeated use.
Applications:
Cutting high-voltage power cables during line installation and repair
Substation maintenance and cable replacement
Industrial electrical work in factories and plants
Railway electrification projects
Telecommunications and fiber optic cable installation
Shipbuilding and offshore power systems
Advantages:
✔ One-handed operation possible in most situations
✔ Clean, burr-free cuts that don't damage conductor strands
✔ Maintenance-free hydraulic system with lifetime lubrication
✔ No power required - ideal for remote job sites
Service & Support:
24/7 technical support hotline
On-site training available for large orders
Hydraulic Cable Cutter Technical Data
Item number | 21447A | 21447B | 21447C |
Model | CC-50A | CPC-50A | HT-50A |
Crimping force |
100KN | 80KN | 70KN |
Cutting range |
CU/AL cable Φ50mm max |
steel rope cable Φ18mm max |
steel rope cable Φ15mm max |
ACSR cable Φ50mm ma |
steel strand Φ10mm max |
||
armored CU/AL cable Φ50mm max |
ACSR cable Φ50mm max |
||
strand Φ16mm max |
armored CU/AL cable Φ50mm max |
||
Stroke | 50mm | 50mm | 40mm |
Length |
approx.620mm | approx.620mm | approx.660mm |
Weight(kg) |
approx.N.W6.1KG G.W9.1KG |
approx.N.W6.2KG G.W9.2KG |
approx.N.W6.5KG G.W8.9KG |
Package | plastic box | plastic box | plastic box |
Item number | 21447D | 21447E | 21447F |
Model | CPC-40FR | CPC-50FR | CPC-85FR |
Crimping force(KN) |
70KN | 80KN | 80KN |
Cutting range |
steel rope cable Φ18mm max |
steel rope cable Φ18mm max |
armored CU/AL cable Φ85mm max |
ACSR cable Φ40mm maX |
ACSR cable Φ50mm maX |
||
armored CU/AL cable Φ40mm max |
armored CU/AL cable Φ50mm max |
||
steel
strand Φ16mm max |
strand Φ16mm max | ||
Stroke | 40mm | 50mm | 85mm |
Length |
approx.700mm | approx.710mm | approx.820mm |
Weight (KG) |
approx.N.W6KG G.W9KG |
approx.N.W7KG G.W10KG |
approx.N.W9.5KG G.W13KG |
Package | plastic box | plastic box | steel case |
