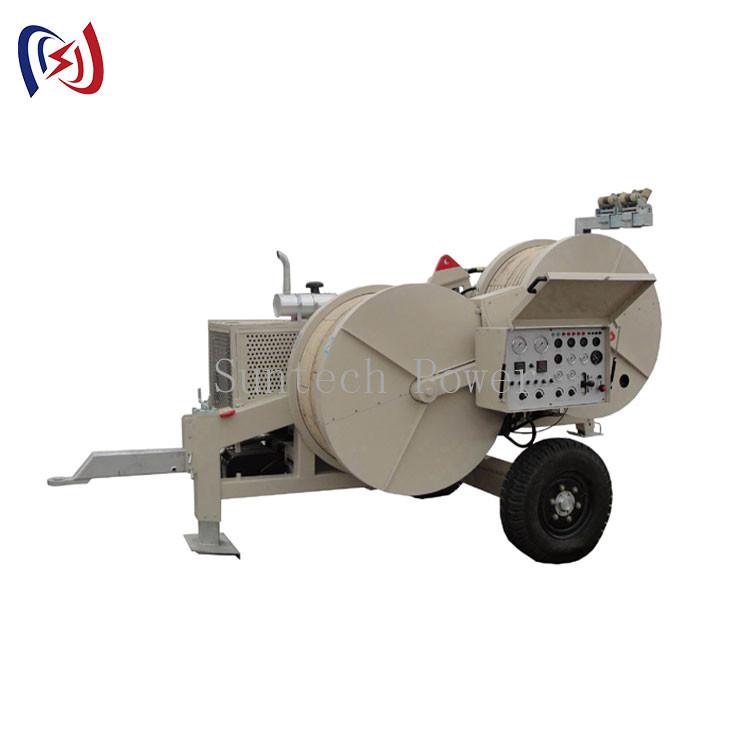

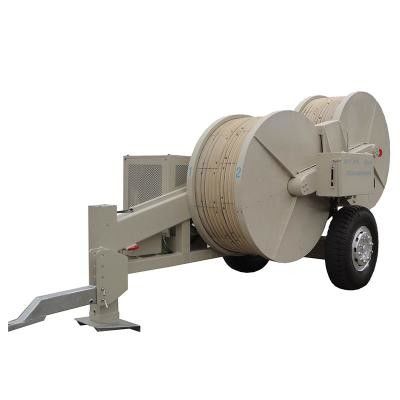

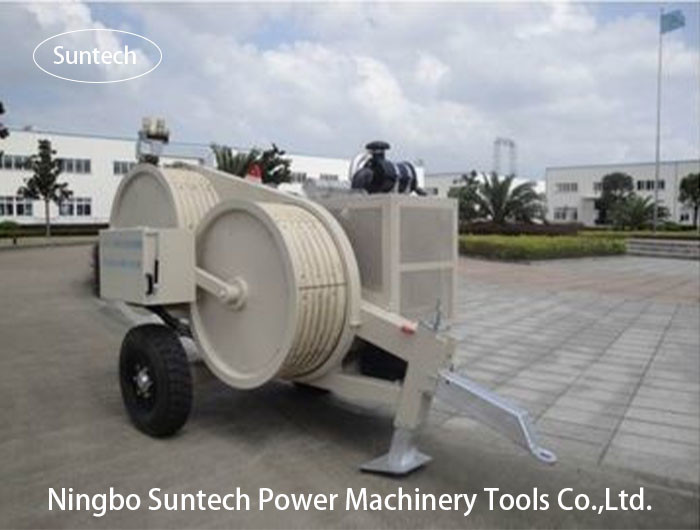

Hydraulic Cable Tensioner 70KN Overhead Transmission conductor stringing equipment

Hydraulic Cable Tensioner 70KN Overhead Transmission conductor stringing equipment

  • Hydraulic Cable Tensioner 70KN Overhead Transmission conductor stringing equipment
  • Hydraulic Cable Tensioner 70KN Overhead Transmission conductor stringing equipment
Hydraulic Cable Tensioner 70KN Overhead Transmission conductor stringing equipment
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO CE
Model Number: SA-YZ2X35
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Exporting Cases or Containers
Delivery Time: 10-15days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Product Name: Cable Tension Hydraulic Equipment Item: 07181
Max Tension: 2X35/1X70 Dimensions: 4.4X2.1X2.6
Continuous Tension: 2X30/1X60 Bottom Of Groove Diameter: 1200
Max Speed Back: 2X2.1 Engine Power/Speed: 51/2500
High Light:

70KN Cable Stringing Equipment

,

Cable Stringing Equipment 07181

,

Hydraulic Cable Stringing Equipment

Hydraulic Cable Tensioner 70KN Overhead Transmission conductor stringing equipment



This SA-YZ2×35 Hydraulic Tensioner is able to string all sorts of conductors and ground wires. It can realize the constant-tension conductor stringing, because of the infinitely variable tension control.

Moreover, our SA-YZ2×35 Hydraulic Tensioner comes with two sets of hydraulic power output interface, so as to connect the hydraulic conductor reel stand. If a hydraulic failure occurs, the spring applied hydraulically released multi-plate brake can run automatically to ensure safety. The bullwheel of this product adopts MC nylon lining segments, featuring wear resistance.

Product Introduction

The overhead transmission line tension stringing equipments are widely used in overhead transmission Line Conductor or OPGW tension stringing project. We are the only one to supply whole set of stringing equipment and tools for transmission line construction in China.

We could supply whole set of stringing equipment and tools for transmission line up to 1000KV construction.

Application:

70KN Cable Tensioners SA-YZ2×35 To Stringing One Or Two Bundle Conductor

SA-YZ2*35 Hydraulic cable tensioner machine for stringing is adequate to tension releasing various conducts and earthwires.

Feature:

70KN Cable Tensioners SA-YZ2×35 To Stringing One Or Two Bundle Conductor

1. Bullwheel with wearproof MC nylon lining segments.

2. Infinitely variable tension control and constant tension conductor stringing .

3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.

4. Attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand.

Main Technical Parameters:

70KN Cable Tensioners SA-YZ2×35 To Stringing One Or Two Bundle Conductor

Model SA-YZ70 Hydraulic Tensioner
Maximum Tension (kN) 2× 35 or 1× 70
Continuous Tension (kN) 2× 30 or 1× 60
Maximum Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ1200
Number of Grooves 2× 5
Maximum Pullback (kN) 2× 30 or 1× 60
Maximum Speedback (km/h) 2× 2.1
Maximum Diameter of Suitable Conductor (mm) Φ32
Engine Power / Speed (kW/rpm) 51/2500
Dimensions (mm) 4400 × 2100× 2600
Weight (kg) 4000

Main Components:

70KN Cable Tensioners SA-YZ2×35 To Stringing One Or Two Bundle Conductor

Engine Beinei Deutz air cooled diesel engine
Main Pump/Motor Rexroth (BOSCH)
Reducer RR (Italian) or Rexroth
Hydraulic Valve Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument Optional
