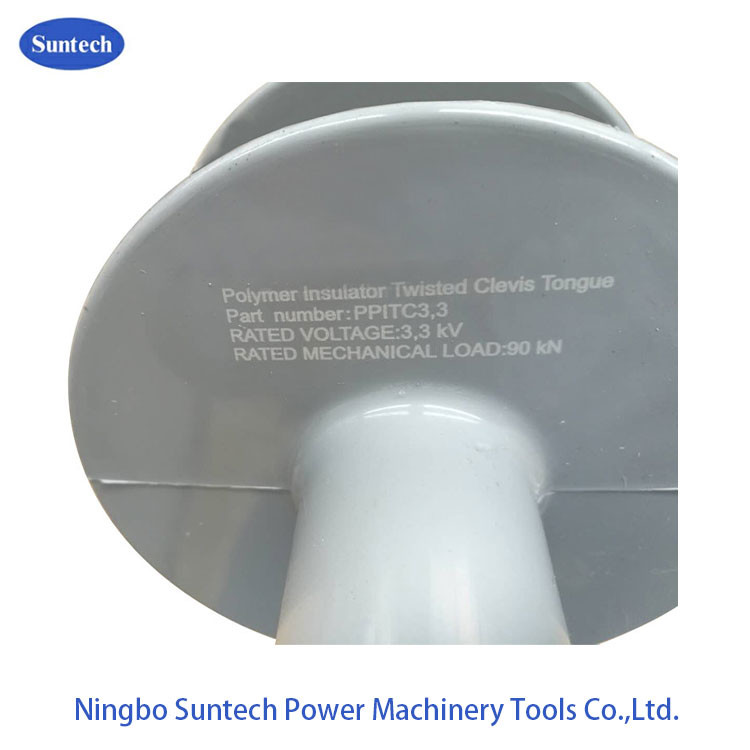

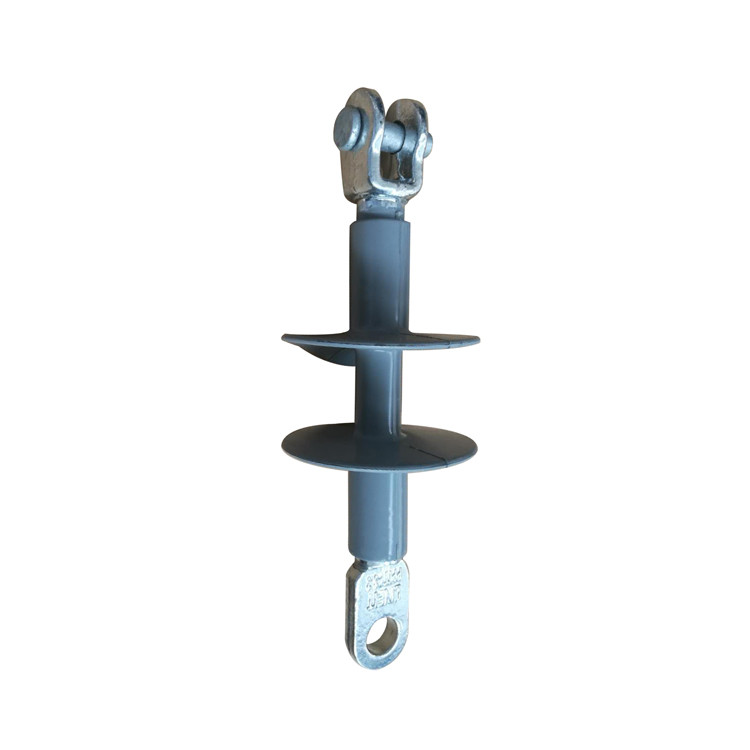

3.3kv 90KN Twist Clevis Tongue Composite Polymer Long Rod Insulator
This product is applied to high voltage power line service, trolley line system. And it has features of good hydrophobicity, anti-ageing, anti-leakage trace and electric erode proof, tensile strength and bending strength, strong mechanical strength, shock resistance, good quake proof and brittle failure proof, light weight and easy for installation.
Technical Parameters:
| System Voltage | 3.3KV |
| One minute power frequency withstand voltage, wet | 125KV |
| Lightning impulse withstand voltage 1.2/50. pos | 250KV |
| Minimum Creepage Distance | 320MM |
| Insulation distance | 190±5MM. |
| Specified mechanical load (SML) | 90KN |
| Structure height | 269±15MM |
| Standard | IEC 61109 |
