Home /Products/Cable Winch Puller/Cable Pulling Winch 3-5T Gasoline Engine for Underground Power Cable Laying

Cable Pulling Winch 3-5T Gasoline Engine for Underground Power Cable Laying

1 Piece
MOQ
Negotiable
Price
Cable Pulling Winch 3-5T Gasoline Engine for Underground Power Cable Laying
Features Gallery Product Description Request A Quote
Features
Specifications
Model: JJQ-50
Tractive Force: 5T
Engine Type: 9HP Gasoline Engine
Power: 6.61KW
Rotational Speed: 6.5-16.0 RPM
Traction Speed: 4.0-9.0 M/MIN
Gear: 2 Forward / 1 Reverse
Outline Size: 1400*510*650 MM
Weight: 150 KG
Application: Underground Duct And Power Cable Laying
Highlight:

Gasoline Engine Cable Pulling Winch

,

Steady Controlled Tension Cable Installer

,

5T Tractive Force Duct Puller
Basic Infomation
Place of Origin: Ningbo, Zhejiang, China
Brand Name: Suntech
Certification: ISO 9001
Model Number: JJQ-50
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7 Days
Payment Terms: L/C,T/T
Supply Ability: 30000 Pieces per Month
Product Description

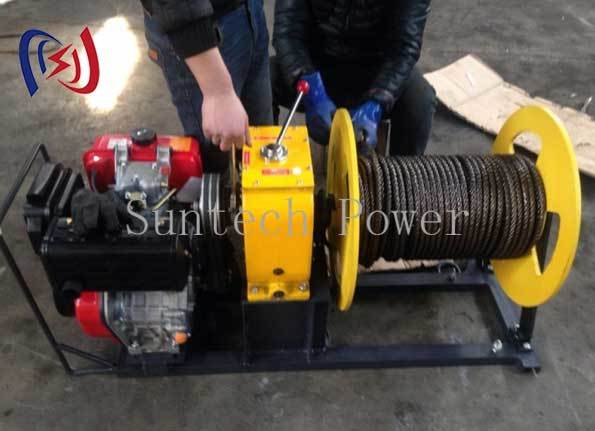

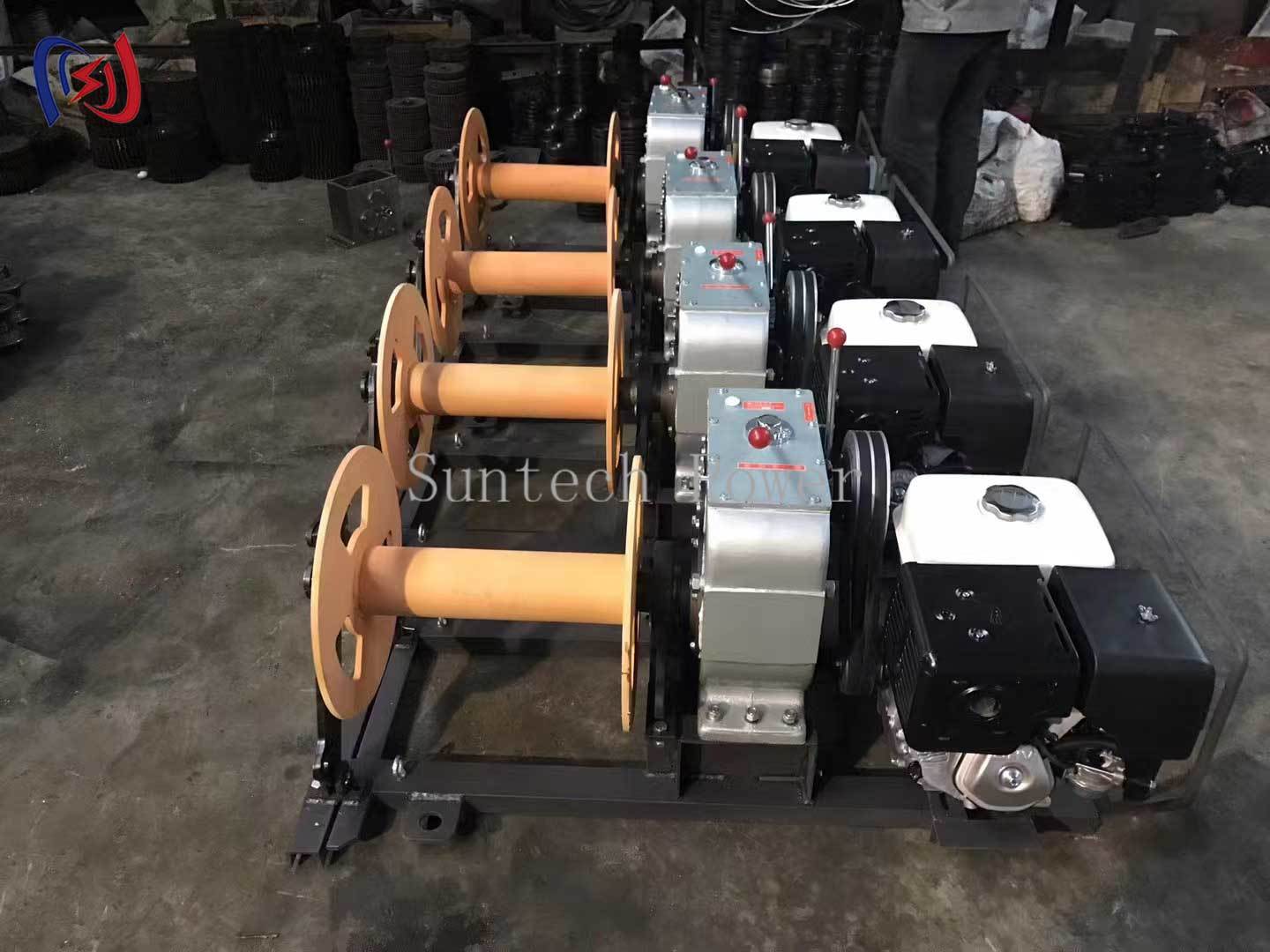

5T Gasoline Cable Pulling Winch for Underground Power Cable Laying
The JJQ-50 is a heavy-duty gasoline cable pulling winch built for laying 5T-rated underground, duct and conduit power cables with steady, damage-free control. Driven by a 9HP gasoline engine, it offers two forward gears (slow and fast) plus a reverse gear, so field crews can match pulling speed and force to cable diameter, conduit friction and route complexity, from long straight runs to congested multi-bend ducts.
Technical Specifications
ModelEngineGearRotational Speed (RPM)Traction Speed (M/MIN)Tractive Force (T)Power (KW)Outline (MM)Weight (KG)
JJQ-509HP Gasoline EngineI Slow6.54.05.06.611400*510*650150
JJQ-509HP Gasoline EngineII Fast16.09.02.2---
JJQ-509HP Gasoline EngineReverse7.04.0No Lifting---
Key Features and Benefits
  • Steady 5T Pulling Force: gradual tension build-up protects cable jackets and conductors from shock loading.
  • Dual Forward Gearbox: switch between 4.0 M/MIN slow pull and 9.0 M/MIN fast pull to suit each route.
  • Reverse Gear for Recovery: back the cable out safely when snags or misalignment occur.
  • 9HP Gasoline Engine: 6.61KW of reliable power with no dependence on site electricity.
  • Compact 150KG Frame: a 1400*510*650MM footprint handles tight manholes and duct chambers.
  • Long Distance Capability: maintains control through multiple bends and congested conduits.
  • Site Safety: replaces hazardous manual pulling with controlled mechanical effort.
  • Built to Last: sealed, heavy-duty components designed for demanding job-site conditions.
Quality Assurance and Compliance
Every JJQ-50 winch is assembled in our Ningbo ISO 9001 certified facility and put through a full load test before shipment. Gearbox, clutch and engine output are verified against rated figures, and each unit ships with a test report and operation manual. As an experienced cable installation equipment supplier, we support utility contractors, telecom installers and electrical engineering firms on projects worldwide.
Experience, Expertise, Authoritativeness, Trustworthiness: our engineers have supplied conductor stringing and cable pulling equipment for power and telecom line projects in more than 30 countries. We publish full engineering specifications, test equipment in-house, and stand behind every unit with responsive after-sales service.
Typical Applications
Suited to underground duct and conduit runs, aerial power line work, transformer and substation cabling, fiber optic and telecom cable installation, and industrial cable tray networks. A go-to tool for electrical contractors, utility companies and telecommunication installers who need controlled, repeatable cable pulls.
Service and Support
  • Samples and trial orders accepted with MOQ 1 piece.
  • Flexible payment by L/C or T/T.
  • Dispatch within 3 to 7 days; monthly capacity of 30000 pieces.
  • Plywood case packing for safe sea freight.
  • Technical guidance and spare parts support after delivery.
