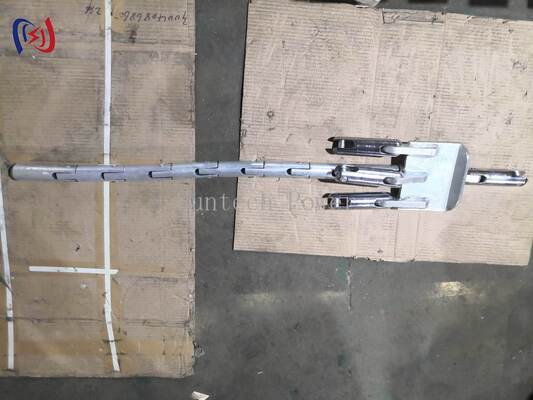

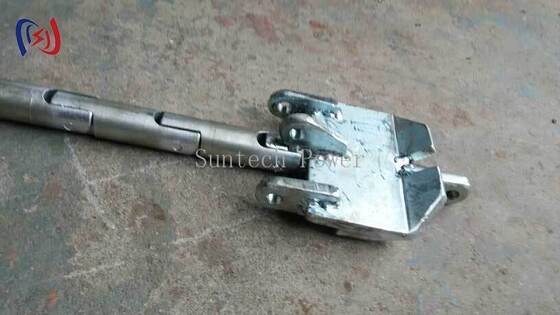

Head Board for Three Bundle Conductor with 100-180KN Rated Load High-Grade Aluminum Alloy and Anodized Surface Treatment

Head Boards for Three Bundle Conductor SZ3A 100-180KN

Product Overview

These professional head boards for three bundle conductors are critical components for three bundle conductor configurations, engineered to maintain optimal conductor spacing and alignment. The SZ3A series covers rated loads of 100-180KN with high-grade aluminum alloy construction and reinforced stress points for heavy loads. Anodized surface treatment withstands harsh weather, and pre-assembled modular components with color-coded identification ensure installation efficiency. It is essential for extra high voltage transmission line projects.

Technical Specifications

Applications

· Three bundle conductor stringing on extra high voltage lines

· Maintaining precise triangular spacing between conductors

· Preventing conductor clashing in high wind conditions

· Large cross-section triple bundle conductor installation

Product Advantages

· Triple Conductor Support — maintains precise triangular spacing between the three conductors and prevents conductor clashing in high wind conditions.

· Enhanced Durability — high-grade aluminum alloy construction with reinforced stress points handles 100-180KN heavy loads reliably.

· Weather Resistance — anodized aluminum surface treatment withstands harsh weather conditions for long field service.

· Safety and Efficiency — non-conductive spacer options with smooth edges protect insulation; pre-assembled modular components with color-coded identification speed up installation.
