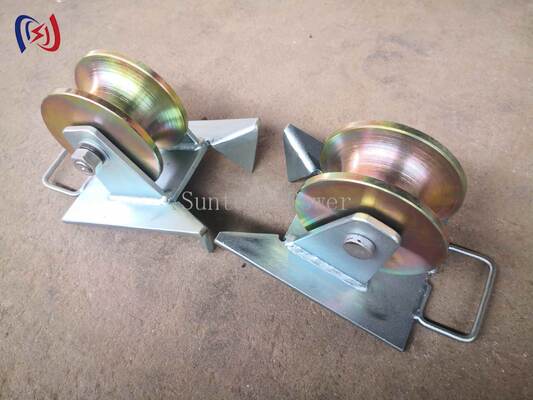

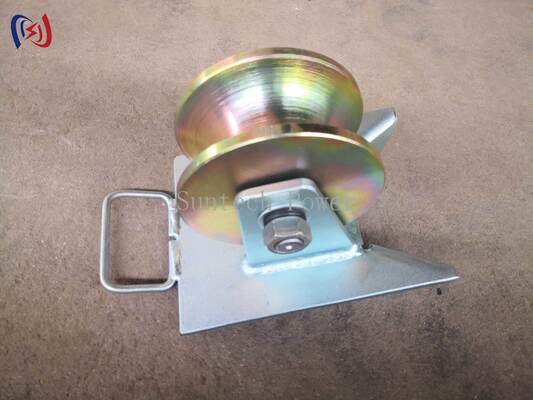

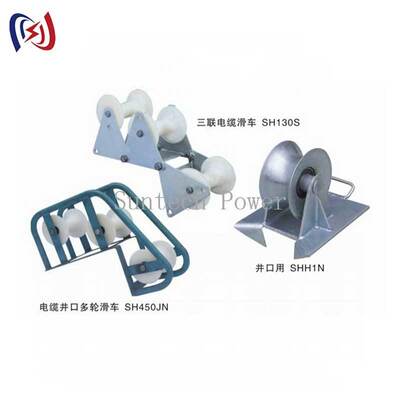

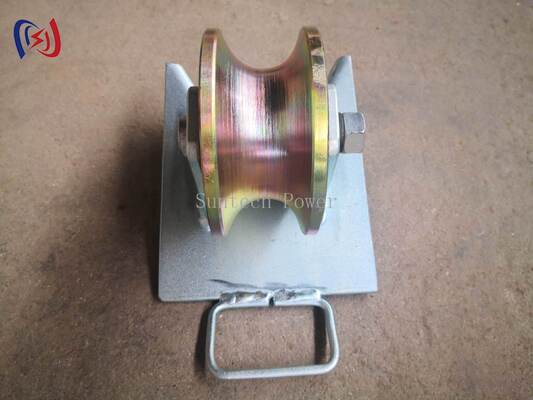

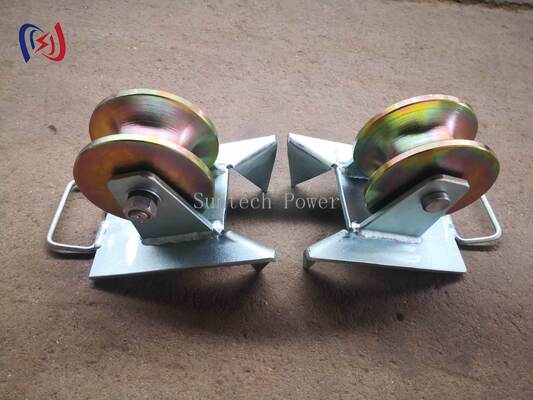

SH130S 10KN Galvanized Pithead Cable Roller Pulley with Triangle Sheave Configuration for Underground Cable Pulling

SH130S 10KN Underground Pithead Cable Roller Pulley Multi Sheave for Mine and Tunnel Cable Pulling

Product Overview

The SH130S 10KN Underground Pulling Multi-Sheaves Pithead Cable Roller Pulley is a heavy-duty cable guiding system for mining, tunneling, or underground applications. Features three wheel nylon cable roller with triangle sheave configuration. Can be used at straight line or corner. Disassemblable as 3 rollers. Galvanized structure with wheel bearings and smooth surface. Max cable diameter 100-150mm.

Technical Specifications

Applications

· Underground cable pulling in mines and tunnels

· Pithead and shaft cable protection

· Cable laying on ground or cable trays

· Straight line and corner cable installation

· Heavy-duty underground construction cable work

Product Advantages

· Multi-Sheave Design — Three wheel configuration provides stable cable support and smooth guidance during underground pulling.

· Triangle Configuration — Triangle sheave arrangement ensures optimal cable positioning and protection.

· Modular Design — Can be disassembled into 3 individual rollers for flexible deployment and transport.

· Versatile Use — Suitable for both straight line and corner cable installations.

· Galvanized Construction — Corrosion-resistant frame suitable for harsh underground environments.

Frequently Asked Questions (FAQ)

Q: What is this roller used for?

A: Underground cable pulling in mines, tunnels, and pithead applications.

Q: Load capacity?

A: 10KN rated load.

Q: Maximum cable diameter?

A: Φ150mm (13mm for SH130SL).

Q: How many wheels?

A: Three wheels with triangle sheave configuration.

Q: Can it be disassembled?

A: Yes, can be disassembled into 3 individual rollers.
