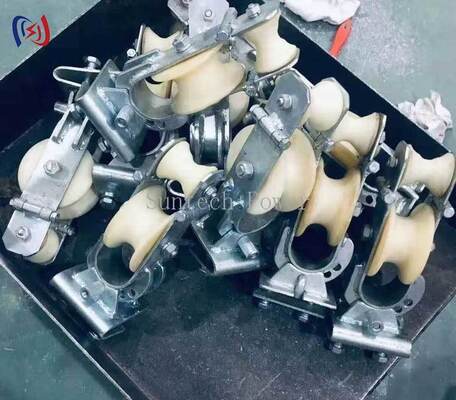

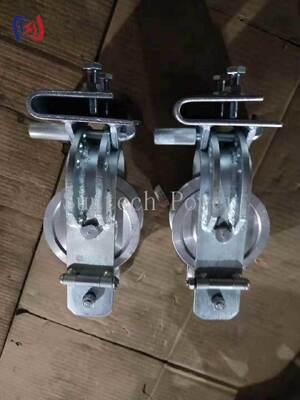

Aluminum/Nylon Sheave 20KN Transmission Stringing Block Three Direction Conductor Pulling
Product Overview
The Crossarm Mounted Three Purpose Stringing Block is designed for stringing wire on beeline and angle poles in three directions: straight, right and left. Suitable for single stranded aluminum and ACSR conductors on tangent structures. All sheaves mounted on ball bearings. Frame made of galvanized steel. Rated load 20KN, applicable conductor ≤LGJ240.
Technical Specifications
|
Item Number
|
Model
|
Rated Load (kN)
|
Applicable Conductor
|
Weight (kg)
|
Remark
|
|
10291
|
SHCS-2L
|
20
|
≤LGJ240
|
4.3
|
Aluminum Sheave
|
|
10292
|
SHCS-2N
|
20
|
≤LGJ240
|
4
|
Nylon Sheave
|
Applications
· Stringing wire on beeline poles (straight direction)
· Stringing wire on angle poles (right and left directions)
· Single stranded aluminum and ACSR conductor installation on tangent structures
· Overhead transmission line construction requiring multi-direction pulling
· Distribution line stringing projects
Product Advantages
· Three Direction Stringing — Enables straight, right, and left direction stringing from a single block, eliminating need for multiple specialized blocks.
· Lightweight Design — Only 4-4.3KG, easy to handle and install on crossarms at height.
· Ball Bearing Sheave — Silent, smooth rotation with minimal friction for consistent cable travel.
· Galvanized Steel Frame — Corrosion-resistant construction ensures long service life in outdoor environments.
· Dual Material Options — Aluminum sheave for heavy-duty use; nylon sheave for sensitive conductor protection.
· ISO 9001 Quality — Manufactured under strict quality control standards for reliable field performance.
Frequently Asked Questions (FAQ)
Q: What does three purpose mean?
A: It can string wire in three directions from one mounting: straight (beeline), right, and left on angle poles.
Q: Maximum conductor size?
A: ≤LGJ240 ACSR conductor.
Q: What is the weight?
A: 4-4.3KG depending on sheave material.
Q: Material options?
A: SHCS-2L: aluminum sheave. SHCS-2N: nylon sheave.
Q: What is the frame material?
A: Galvanized steel for corrosion resistance
