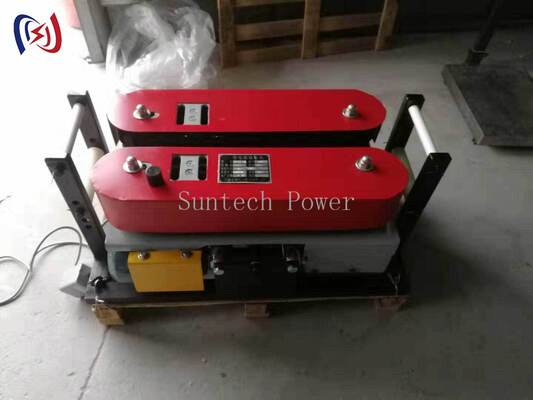

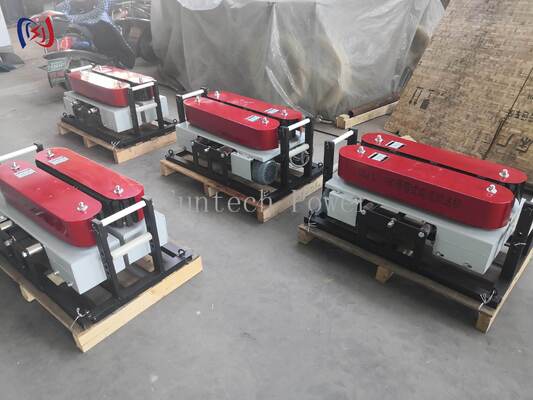

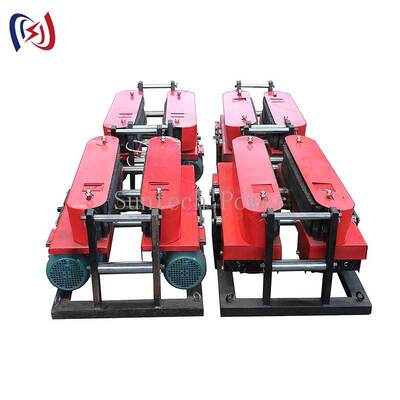

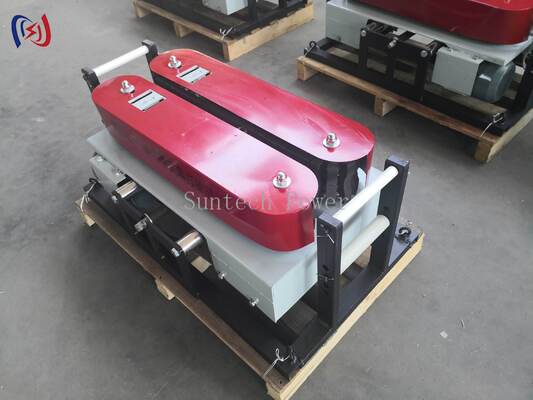

Professional Cable Conveyer for Efficient and Safe Handling of Heavy Electrical Cables and Conductors
The Cable Conveyer, also known as a cable handling trolley, reel jack, or cable transport system, is a specialized material handling equipment designed to solve the critical challenge of moving, positioning, and deploying heavy, bulky electrical cables and wire reels. In power plant construction, substation upgrades, and large-scale industrial electrical projects, manually handling large-diameter power cables or massive cable reels is not only physically demanding and dangerous but also highly inefficient.
Technical Specifications
| Item No. |
Model |
Power (KW) |
Clamping Force (KN) |
Pull Force (KN) |
Conveying Speed (M/MIN) |
Outline Size (MM) |
Cable Diameter (MM) |
Power |
Weight (KG) |
| 21103 |
DCS-5 |
1.1*2 |
<=2.7KN |
6 |
7 |
980*500*400 |
25-180 |
380V |
180 |
| 21105 |
DCS-8 |
1.5*2 |
<=2.7KN |
8 |
7 |
1220*730*480 |
25-180 |
380V |
290 |
| 21104 |
DCS-Z5 |
2.2*2 |
<=2.7KN |
5 |
7 |
930*500*400 |
25-160 |
380V |
150 |
| 21102 |
DCS-110 |
4 |
<=2.7KN |
6 |
7 |
1050*530*550 |
25-180 |
GX160 |
190 |
Key Features and Benefits
Eliminates Hazardous Manual Handling: Removes the need for crews to manually lift, roll, or drag heavy cable reels, preventing serious back injuries, crushed feet, and strains.
Precise Positioning for Optimal Cable Payout: Provides mobility and height adjustment to place reels exactly where needed, ensuring proper cable feed angles to minimize friction and prevent damage.
Smooth and Controlled Cable Unreeling: Features bearing-mounted shafts or braking systems for controlled resistance, preventing over-spinning and cable tangling.
Protects Valuable Cable from Damage: Keeps reels elevated and clean, preventing crushing, scraping, and abrasion that could compromise cable integrity.
Dramatically Improves Worksite Efficiency: Allows single-person operation for moving reels quickly, streamlining material flow and reducing crew downtime.
Versatile for Various Cable and Reel Sizes: Adjustable arms and adaptable cranes accommodate reels of different widths, diameters, and core sizes.
Portable and Maneuverable for Confined Spaces: Designed with large, heavy-duty wheels and compact footprint for easy movement through standard doorways and tight spaces.
Durable Construction for Industrial Environments: Built from high-strength steel or aluminum with robust welds to withstand rigorous construction site conditions.
Professional Cable Installation Practices: Demonstrates commitment to best practices, asset protection, and efficient workflow for professional electrical work.
Smart Investment in Safety and Productivity: Provides rapid ROI through reduced labor costs, minimized cable damage, fewer workplace injuries, and faster project completion.
The Cable Conveyer is an indispensable support equipment that addresses fundamental challenges in electrical work: moving heavy objects safely and efficiently. It ensures valuable cable is transported and presented correctly for installation, eliminating manual handling risks, protecting cable integrity, and streamlining workflow for professional execution of power, control, and instrumentation cable projects.
