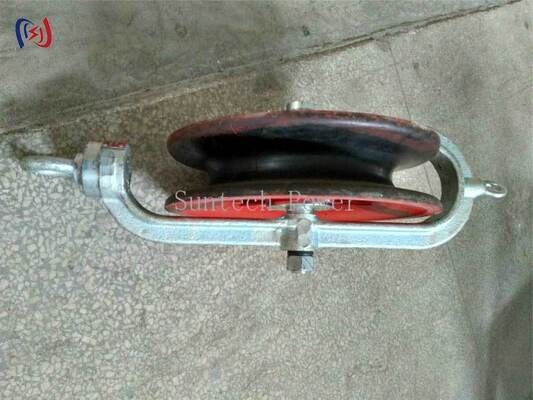

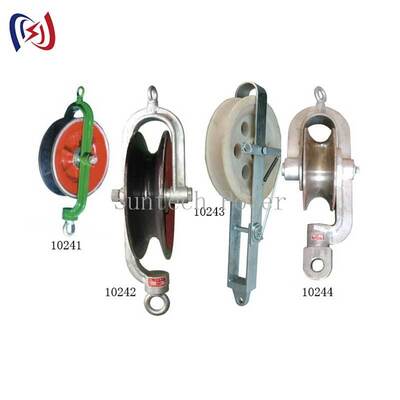

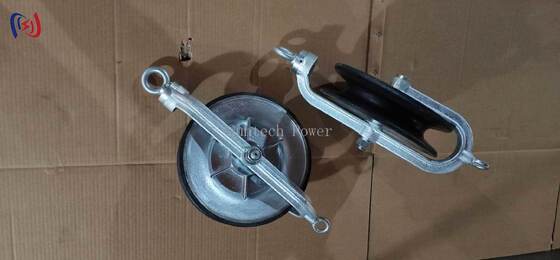

Professional Hold Down Wire Block with 10-40KN Rated Load and Aluminum Sheave for Secure Anchoring on Transmission Lines

Professional Hold Down Wire Block for Securing Conductors on Transmission Line Insulator Strings

• Essential for Dead Ending and Anchoring Conductors:​ The primary function is to provide a permanent, non-slip termination point for the conductor. At dead-end structures (where the line ends or changes direction drastically), the conductor cannot be allowed to move. The hold down block clamps onto the conductor with tremendous force, locking it in place and transferring the full tensile load of the span into the support structure and its foundation, creating a stable anchor point for the line.

• Maintains Critical Line Tension and Sag:​ Proper tension and sag are fundamental to a safe and functional power line. A slipping or failing termination can alter the sag, leading to clearance violations or unbalanced tension on adjacent structures. The hold down block is designed to maintain the exact tension set during stringing. Its secure grip ensures the conductor length—and therefore its sag—remains constant over decades of service, regardless of temperature changes or weather loads.

• Engineered for Superior Mechanical Strength and Grip:​ These blocks are manufactured from high-strength materials like malleable iron or forged steel, often hot-dip galvanized for corrosion resistance. The gripping mechanism, which may involve serrated jaws or a compression design, is precisely calculated to apply enough pressure to hold the conductor without crushing or notching the individual strands, which could create a weak point and lead to failure under vibration or strain.

• Ensures Long Term Reliability and System Safety:​ A failed termination can be catastrophic, potentially causing a conductor to fall. The hold down wire block is a component designed for the lifetime of the line. Its reliability is non-negotiable. By using a properly rated and installed block, utilities ensure that the immense mechanical forces in the line are managed safely, protecting both the infrastructure and public safety.

• Vital for Angle and Strain Structures:​ Beyond simple dead-ends, these blocks are used on angle structures where the line changes direction. At these points, the resultant force vector creates both tension and side strain. The hold down block is engineered to withstand these combined loads, anchoring the conductor securely and preventing it from being pulled out of alignment.

• Simplifies Installation and Maintenance:​ Modern hold down blocks are designed for efficient installation. They often feature a hinged or two-piece design that can be assembled around the conductor in the field, then tensioned with standard tools. This design allows for precise adjustment and a verifiably secure installation, streamlining the construction process.

• Compatible with Various Conductor Types and Sizes:​ Hold down blocks are manufactured in a range of sizes to accommodate different conductor diameters and types, including ACSR (Aluminum Conductor Steel Reinforced), AAAC, and others. Selecting the correct block for the specific conductor ensures optimal grip and performance.

• Durable Construction for Harsh Environments:​ The galvanized or similarly coated finish provides excellent protection against corrosion from rain, humidity, and industrial atmospheres. This durability ensures the block maintains its structural integrity and clamping force throughout the decades-long service life of the power line, even in coastal or highly corrosive environments.

• A Foundational Component for Grid Infrastructure:​ The hold down wire block is a small but absolutely vital piece of hardware in the electrical grid. It is the critical link that physically secures the current-carrying conductor to the stationary structure. Its performance is integral to building a resilient and dependable power transmission and distribution network.

• A Mark of Professional Engineering and Construction:​ The specification and use of correctly engineered hold down blocks reflect professional design and construction practices. It demonstrates an understanding of the mechanical forces at play and a commitment to using components that are fit for purpose, ensuring the power line is built to last and perform reliably under all conditions.
