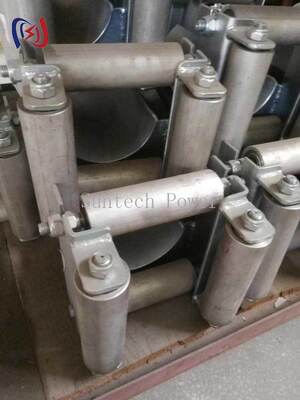

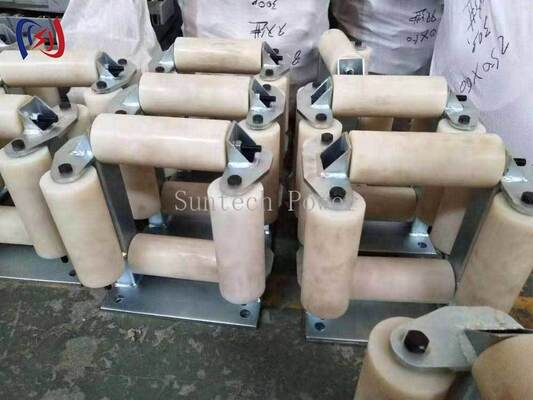

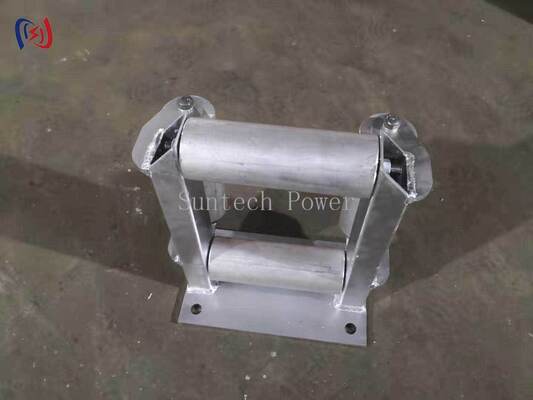

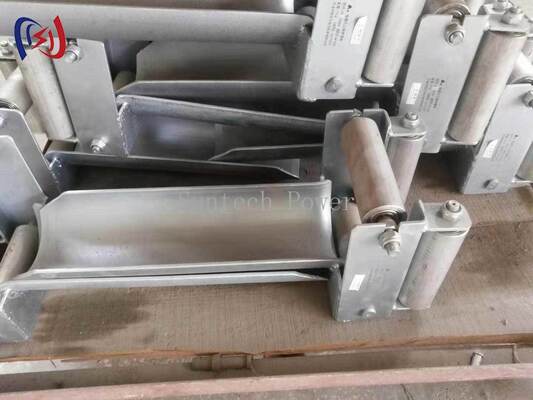

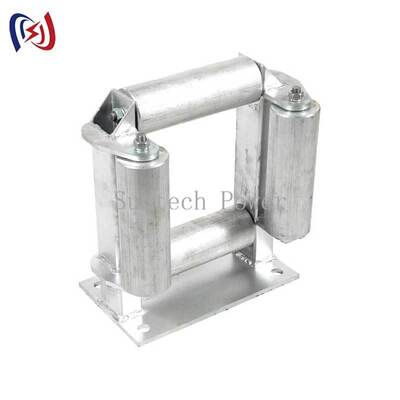

Professional Framed Cable Roller with 180mm Max Cable Diameter, 20KN Rated Load, and Corrosion Resistant Design for Underground Installation

Professional Framed Cable Roller for Protecting Cables During Underground Trench and Duct Installation

• Essential for Reducing Friction and Pulling Force:​ The core benefit of using framed rollers is the dramatic reduction in pulling resistance. A cable dragged directly on the ground creates immense friction. The framed roller elevates the cable, and its free-spinning sheaves allow the cable to roll with minimal effort. This can lower the required winch or tugger force by a substantial margin, making installations easier, faster, and less demanding on equipment.

• Protects Cable Jackets from Abrasion and Damage:​ The cable jacket is the first line of defense against environmental damage. Dragging a cable across dirt, gravel, or rough surfaces scrapes and weakens this protective layer. The framed roller provides a smooth, clean rolling surface, completely eliminating this abrasive contact. This preserves the jacket's integrity, ensuring long-term waterproofing, insulation, and mechanical protection for the cable.

• Enables Longer and Smoother Continuous Pulls:​ By placing multiple framed rollers at intervals along the planned cable path, crews create a continuous, low-friction "runway." This support system allows for exceptionally long pulls in a single, continuous operation. It prevents the cable from sagging and snagging on the ground, resulting in a smoother installation that imposes less stress and bending on the cable itself.

• Improves Worksite Safety and Efficiency:​ A setup with framed rollers makes the pulling process predictable and controlled. It reduces the risk of the cable suddenly binding or jerking, which can be hazardous to personnel. The process is also far less physically demanding for the crew, as the equipment does the heavy work of overcoming friction. This leads to faster project completion and reduced labor fatigue.

• Durable and Adaptable for Various Environments:​ Constructed from high-strength, corrosion-resistant materials like galvanized steel or aluminum alloy, framed rollers are built to withstand harsh job site conditions. They are stable on uneven ground, resistant to weather and UV exposure, and designed for repeated use across many projects, providing excellent long-term value.

• Versatile for Multiple Applications:​ Framed rollers are used in a wide array of scenarios: laying cable in open trenches, pulling cable across open ground before burial, guiding cable into duct entrances, and supporting cable during long aerial pulls prior to lifting. They are essential for power cables, fiber optics, and any other cable type that requires protection during installation.

• Maintains Proper Cable Alignment:​ The frame provides a stable guide that helps keep the cable on its intended path. This is especially important when pulling around gentle curves or ensuring the cable enters a duct or conduit straight. Proper alignment prevents kinks, reduces sidewall pressure, and contributes to a higher quality installation.

• Facilitates Crew Mobility and Access:​ The elevated cable provided by the rollers keeps the path clear. Crew members can easily walk alongside or cross over the cable route without tripping over a slack cable on the ground. This improves overall worksite organization and safety.

• A Cost-Effective Investment in Quality Installation:​ The cost of a set of framed rollers is minimal compared to the value of the cable they protect and the labor they save. By preventing just one instance of jacket damage that requires a splice, they pay for themselves. They are a proactive investment that prevents costly repairs, rework, and project delays.

• A Standard Tool for Professional Cable Installation:​ The use of framed support rollers is a recognized industry best practice. It signifies a professional, quality-focused approach to cable installation. Utilizing this equipment demonstrates a commitment to preserving the cable asset and executing the work to the highest standards, resulting in a more reliable and durable installation.
