Heavy Duty Multiple Fission Conductor Lifter for Simultaneous Multi Conductor Handling and Enhanced Worker Safety

1 PCS
MOQ
Negotiable
Price
Heavy Duty Multiple Fission Conductor Lifter for Simultaneous Multi Conductor Handling and Enhanced Worker Safety
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Multiple Fission Conductor Lifter
Item No.: 19112-19119B
Model: ST25-2
Rated Load: 2x12
Hook Slot Length: 60-160
Weight: 13-160KG
Highlight:

Heavy Duty Multiple Fission Conductor Lifter

,

Simultaneous Multi Conductor Handling Bundle Conductor Lifter

,

Enhanced Worker Safety Conductor Stringing Lifter
Basic Infomation
Place of Origin: Ningbo
Brand Name: Suntech
Certification: ISO
Model Number: ST25-2
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7days
Payment Terms: L/C,T/T
Supply Ability: 100 PCS/Month
Product Description
Heavy Duty Multiple Fission Conductor Lifter for Safe and Efficient Handling of Bundle Conductors
Item number Model

Rated Load

(KN)

Hook slot length

(mm)

Weight

(kg)

 Note
19112 ST25-2 2x12 120 13 Two
19113 ST50-2 2x15 160 25


Two
19114 ST80-2 2x40 250 40 Two
19108 ST36-3 3x12 120 21


Three
19109 ST75-3 3x25 160 35 Three
19110 ST120-3 3x40 250 60 Three
19115 ST48-4 4x12 120 35 Four
19116 ST100-4 4x25 160 60 Four
19117 ST160-4 4x40 250 90 Four
19118A ST150-6 6x25 160 70 Sex
19118B ST240-6 6x40 250 110 Sex
19119A ST200-8 8x25 160 120 Eight
19119B ST320-8 5+6 250 160 Eight

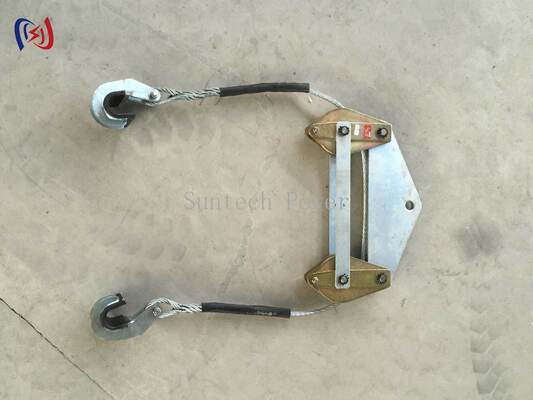

The Multiple Fission Conductor Lifter is an essential piece of specialized equipment designed to address the unique challenges of handling bundled conductors during transmission line construction, maintenance, and repair operations. Unlike single-conductor lifters, this robust tool is engineered to safely and efficiently lift multiple sub-conductors simultaneously, maintaining their precise geometric configuration throughout the process. It significantly enhances worker safety by minimizing the need for manual handling of heavy conductors at height, while also improving efficiency and protecting the valuable conductors from damage. This lifter is indispensable for utility crews working on modern high-capacity power lines where bundle configurations are standard.
  • Simultaneous Multi Conductor Handling:​ The primary advantage of this lifter is its ability to engage and lift all sub-conductors of a bundle (whether two, three, or four) in a single, coordinated operation. This eliminates the need to lift and position each conductor individually, saving a substantial amount of time and labor. It ensures that the bundle's geometry is preserved during the lifting process, which is crucial for subsequent installation steps.
  • Enhanced Worker Safety:​ Manually handling heavy, often energized, conductors at significant heights is a high risk activity. The Multiple Fission Conductor Lifter dramatically improves safety by allowing crews to perform lifting operations from a secure position, minimizing direct physical contact with the conductors. This reduces the risk of musculoskeletal injuries, drops, and accidents associated with manual lifting and positioning.
  • Superior Conductor Protection:​ The lifter is designed with features that protect the conductor's surface from scratches, abrasion, and crushing. The contact points or gripping jaws are engineered to apply secure yet non damaging pressure to the conductors. This careful handling preserves the integrity of the conductor strands and its protective coatings, preventing points of future corrosion or electrical weakness.
  • Precise Positioning and Alignment:​ This tool provides exceptional control during the lifting process, enabling crews to precisely position the conductor bundle for attachment to suspension assemblies, spacers, or other tower hardware. The ability to make fine adjustments easily ensures perfect alignment, which is critical for the long term aerodynamic and electrical performance of the line.
  • Robust and Durable Construction:​ Built from high strength aluminum alloys or steel, the lifter is designed to withstand the rigors of field use. Its components are engineered to handle the full weight of the conductor bundle without deformation, ensuring reliability and longevity even when used frequently in demanding conditions.
  • Adaptable to Various Bundle Configurations:​ Many models of this lifter are versatile, with adjustable components that can accommodate different bundle diameters and geometric arrangements (e.g., horizontal, vertical, or triangular). This adaptability makes it a cost effective tool for contractors who work on a variety of transmission line projects with different specifications.
  • Operational Efficiency and Time Savings:​ By streamlining the conductor handling process, the lifter significantly accelerates tasks such as transferring conductors from stringing blocks to permanent hardware, or during maintenance operations like replacing spacers or dampers. The time saved on these critical path activities directly translates to reduced project duration and lower labor costs.
  • Ease of Use and Ergonomic Design:​ Despite its robust capabilities, the lifter is designed for practical use in the field. It features ergonomic handles and a balanced weight distribution, making it manageable for a small crew to operate. The engagement and release mechanisms are straightforward, requiring minimal effort to secure and free the conductor bundle.
  • A Vital Tool for Modern Power Grids:​ As power lines continue to evolve towards higher capacities using bundle conductors, the Multiple Fission Conductor Lifter has become a standard and necessary tool for professional utility crews. It represents a commitment to safety, quality, and efficiency in the construction and upkeep of critical electrical infrastructure.
Investing in a high quality Multiple Fission Conductor Lifter is investing in the safety of your personnel, the protection of your assets, and the overall efficiency of your operations.
