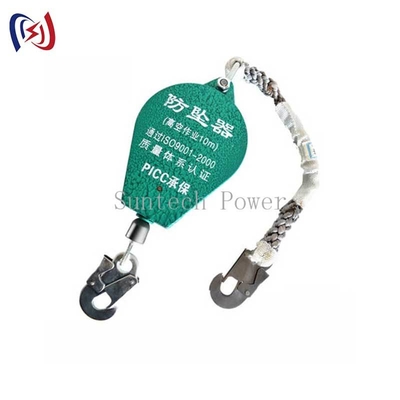

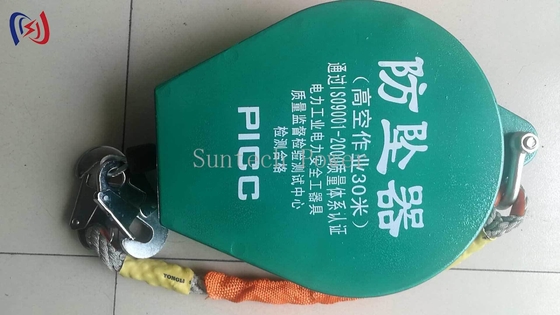

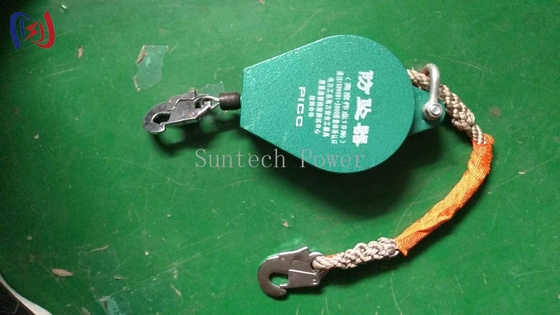

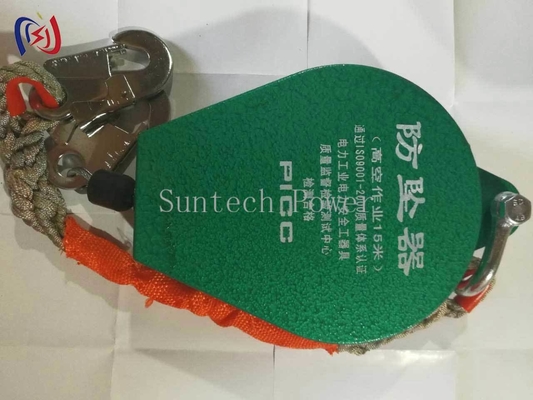

PPE Professional Anti Fall Device For High Voltage Line Work And Tower Climbing

Professional Anti Fall Device For High Voltage Line Work And Tower Climbing

The ​​Anti-Fall Device​​ is an essential personal protective equipment (PPE) designed for utility workers performing tasks at height on power lines, transmission towers, and electrical substations. This critical safety system prevents dangerous falls and minimizes impact forces during accidental slips or drops, ensuring compliance with OSHA and ANSI safety standards.

​​Construction & Safety Features:​

​

• ​​Material:​​ High-strength nylon webbing or polyester rope core
• ​​Energy Absorber:​​ Tear-webbing or spring mechanism reduces impact forces
• ​​Connectors:​​ Forged steel carabiners with 5000lb+ breaking strength
• ​​Locking Mechanism:​​ Automatic braking system activates at 2ft/s descent
• ​​Length Adjustment:​​ Quick-fit buckles for proper positioning
• ​​Indicator:​​ Visual wear and deployment markers
• ​​Compatibility:​​ Works with full body harnesses (sold separately)

​​Technical Specifications:​​

• ​​Standards Compliance:​​ ANSI Z359.1, OSHA 1926.502, EN 360
• ​​Arresting Force:​​ <900 lbs (4kN) maximum
• ​​Working Length:​​ 6ft-12ft (1.8m-3.6m) adjustable
• ​​Weight Capacity:​​ 310-400 lbs (140-181 kg)
• ​​Temperature Range:​​ -30°F to +130°F (-34°C to +54°C)
• ​​Material:​​ Stainless steel and high-tensile synthetic fibers
• ​​Lifespan:​​ 5 years or first deployment (whichever comes first)

​​Performance Advantages:​

​
✔ ​​Instant activation​​ prevents dangerous free falls
✔ ​​Reduces impact forces​​ to safe levels (<6kN)
✔ ​​Lightweight design​​ (2-4 lbs) minimizes fatigue
✔ ​​Weather-resistant​​ for outdoor electrical work
✔ ​​Easy inspection​​ with clear wear indicators
✔ ​​Compatible​​ with all standard harness systems

​​Professional Applications:​​

1. ​​Transmission tower climbing​​ - structural inspections
2. ​​Live-line maintenance​​ - working on energized conductors
3. ​​Substation work​​ - equipment installation and repair
4. ​​Power pole work​​ - line installation and maintenance
5. ​​Wind turbine servicing​​ - nacelle and blade access

​​Available Configurations:​

​

• ​​Standard lanyard​​ with energy absorber
• ​​Retractable lifeline​​ (self-retracting lifeline)
• ​​Tower climbing system​​ with dual leg configuration
• ​​Rail-mounted fall arrester​​ for substation gantries
• ​​Specialty kits​​ for confined space rescue

​​Why Choose Our Anti-Fall Device:​

​

• Manufactured to ISO 9001 quality standards
• Used by major utility companies nationwide
• Field-tested by professional linemen
• 3-year manufacturer warranty
• Replaceable energy absorber packs
